Functional Features

l Dual HDMI high-definition signal transmission, adopting HDbaseT uncompressed transmission technology for clear, smooth images with low latency.；

l Supports independent audio and microphone signal transmission.

l  Compatible with USB keyboards, mice, and USB 2.0 devices (USB flash drives, U-KEYs, printers, external hard disks, etc.).

l Dual RJ45 network port transmission.

l  Supports hot-swappable design；

l Maximum resolution support: 3840*2160@30Hz high-definition video signal, with backward compatibility.

l Equipped with 4 powerful USB ports to meet the needs of high-capacity USB devices.

l Supports point-to-point transmission, e.g., pairing the transmitter of a DVI extender with the receiver of an HDMI extender.

Hardware Structure

l Metal iron case with baking paint process;

l - DC power socket;

l - Side heat dissipation slot design process;

l - Smooth transition of the machine's edge, with delicate hand feel；

Indicator light Lights

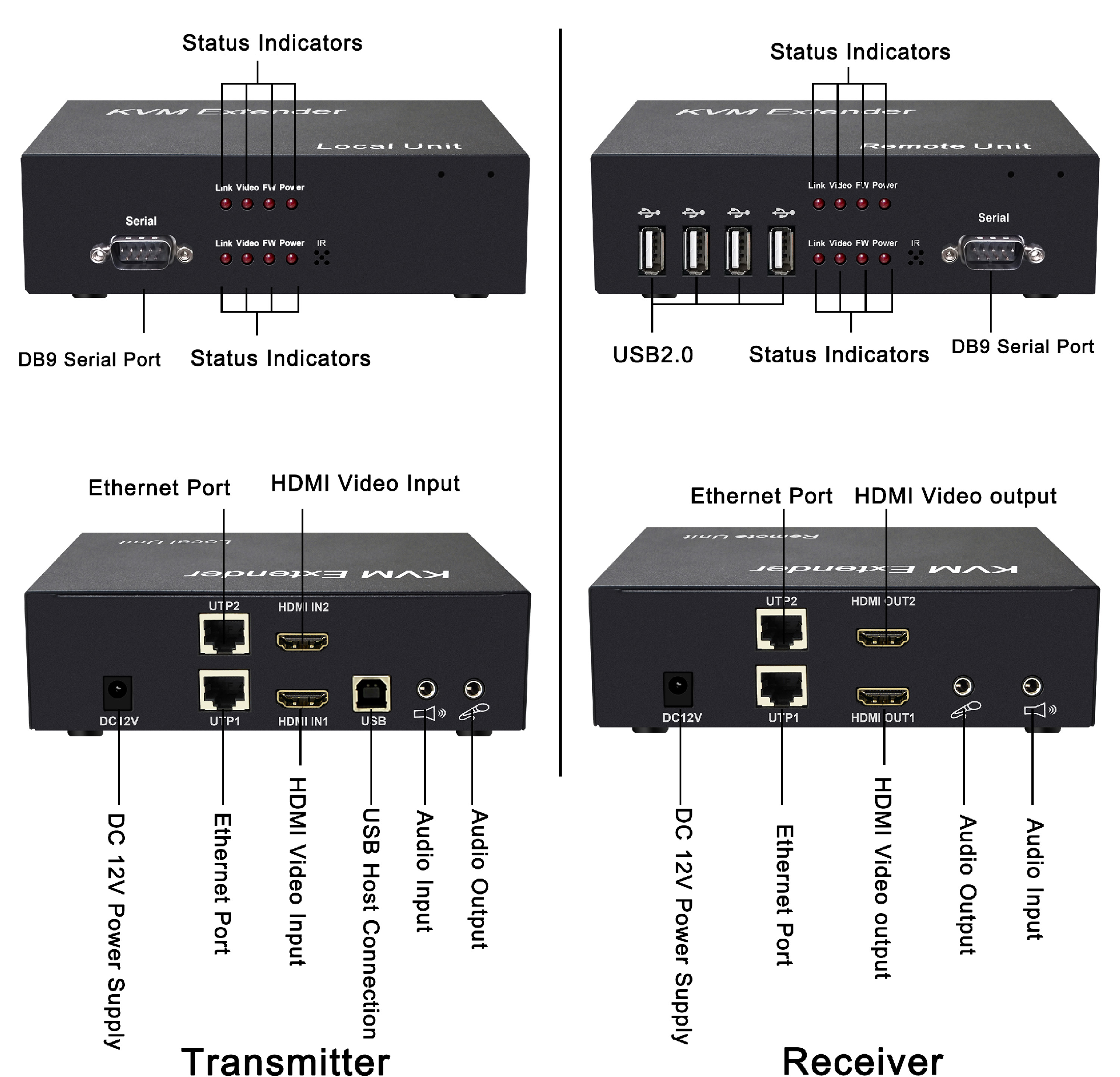

Interface Schematic Diagram

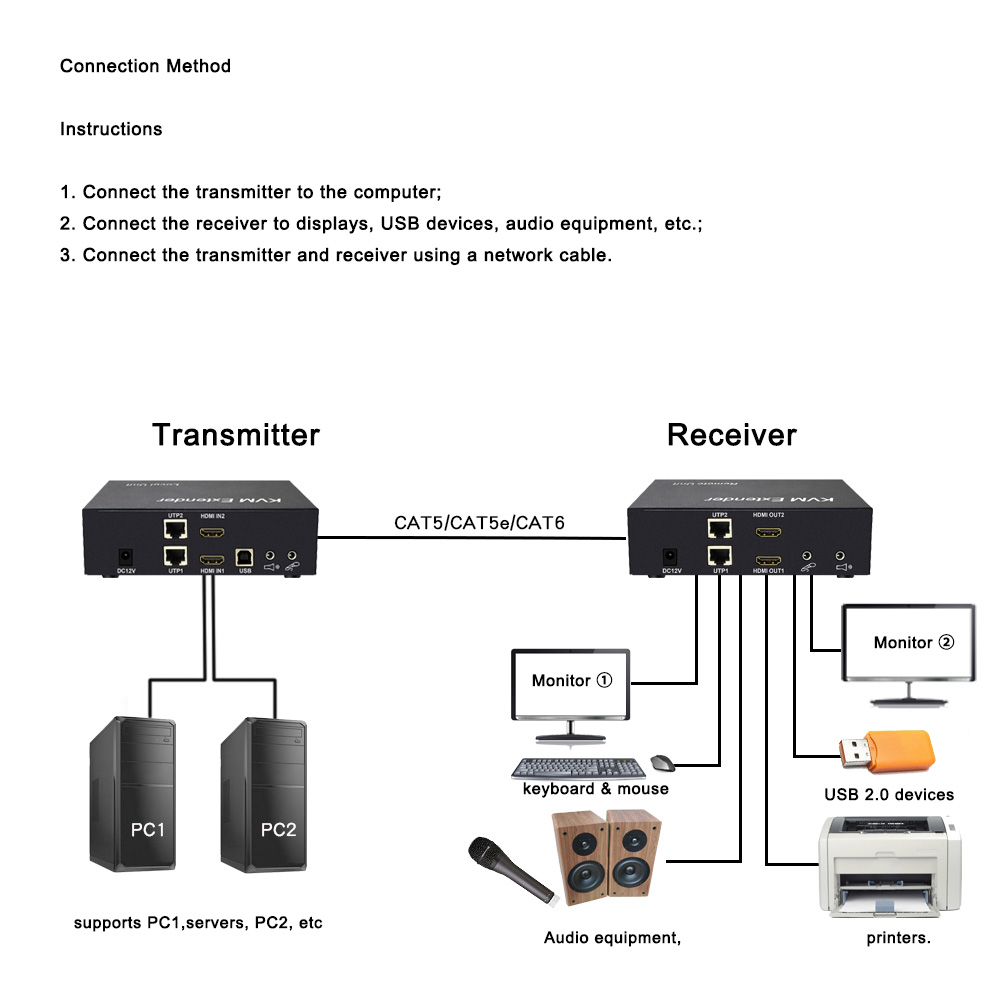

Connection Operation

1. Connect the transmitter to the controlled host using standard HDMI video cables, serial cables, USB cables, and audio/microphone cables.；

2. Connect the receiver to HDMI monitors, audio/microphone devices, serial devices, USB keyboards, mice, and USB peripherals.

3. Connect the transmitter and receiver directly via a network cable.

4. Align the upper RJ45 port of the transmitter with the upper RJ45 port of the receiver, and the lower RJ45 port of the transmitter with the lower RJ45 port of the receiver.

5.  Power on both the transmitter and the receiver.

6. The connection status is indicated by the Indicator light lights on the transmitter and receiver.

7. Supports hot swapping: add or remove controlled devices at any time without turning off the KVM power.

8. Cross-platform compatibility: works with mainstream operating systems such as Windows, Linux, and Sun.

Assembly List

Thank you for using our products. Please open the packaging and first check the product packing list.
