Functional Features

l Extends signals including VGA, USB, RS232, and independent stereo audio; supports local VGA video, USB2.0, and audio output, with a maximum transmission distance of up to 150 meters;

l Adopts digital lossless transmission technology, ensuring clear, smooth, and delay-free images with strong anti-interference capability;

l Uses a single network cable (CAT5E, CAT6, CAT7) for transmission, featuring low cost;

l Supports a maximum resolution of 1080P@60Hz;

l  Supports USB2.0 transmission, and provides four USB ports at the Remote end, compatible with any USB2.0 devices;

l Supports full-duplex RS232 transmission, with a maximum baud rate of 115200bps;

l  Equipped with independent audio function;

l Supports wireless keyboard/mouse and touch screen;

l Supports remote wake-up of computers;

l Supports pass-through of LPCM 7.1 audio, Dolby® True HD, Dolby Digital® Plus, and DTS-HD® Master Audio™ pass-through；

Supports pass-through of

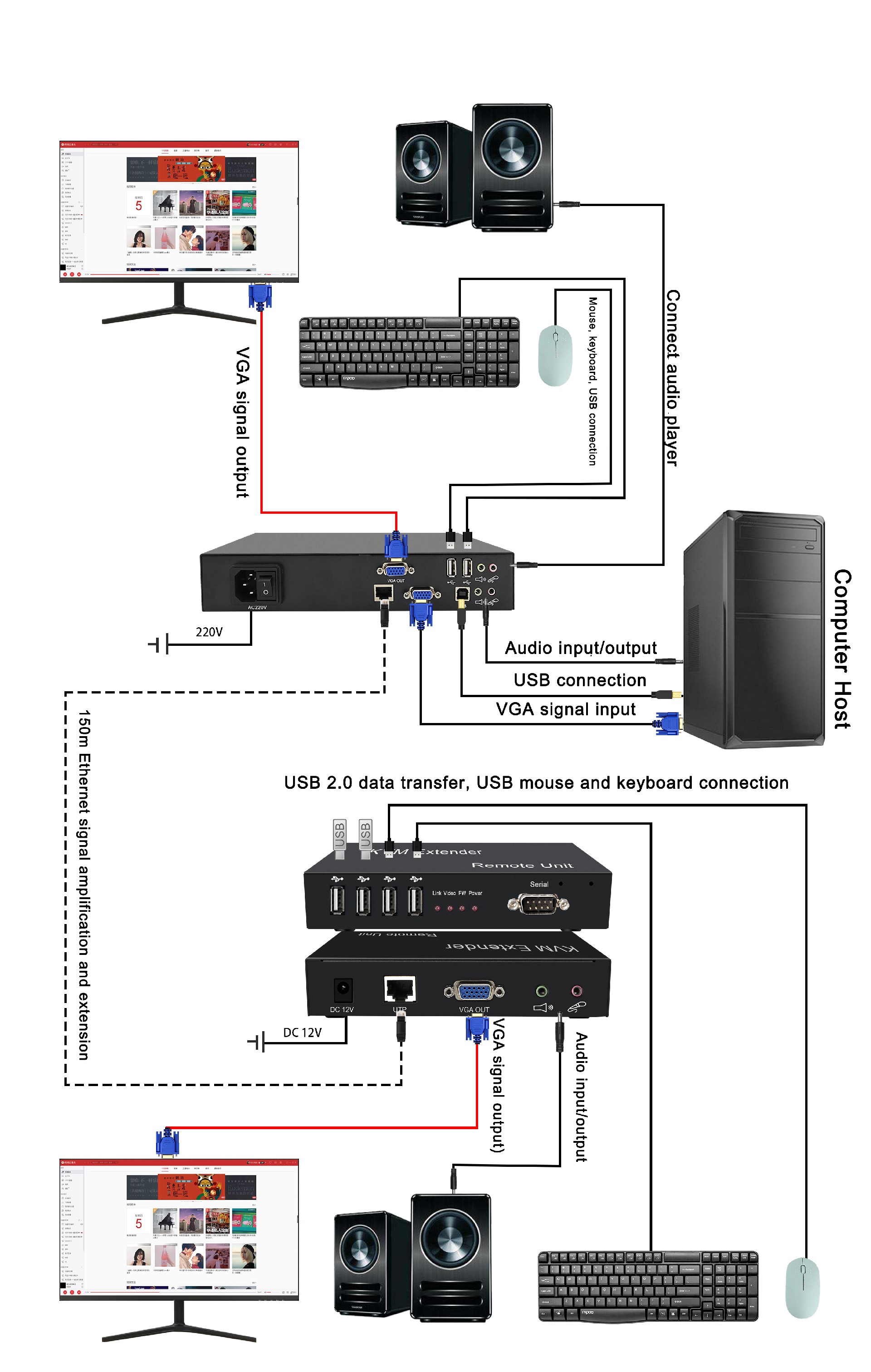

1. Connect the transmitter to the host using standard VGA cables, serial cables, USB cables, and audio/microphone matching cables;

2.  Connect the loop-out VGA port to VGA displays, USB keyboards/mice, and audio/microphone devices;

3.  Connect the receiver to VGA displays, audio/microphone devices, serial devices, USB keyboards/mice, and other USB devices;

4.  Connect the transmitter and receiver via a network cable;

5.  Power on both the transmitter and receiver;

6.  The connection status between the transmitter and receiver is displayed via indicator lights;

7.  Supports hot-swapping: controlled devices can be added or removed at any time without turning off the KVM power;

8. . Cross-platform support: compatible with mainstream operating systems such as Windows, Linux, and Sun.

Indicator Lights

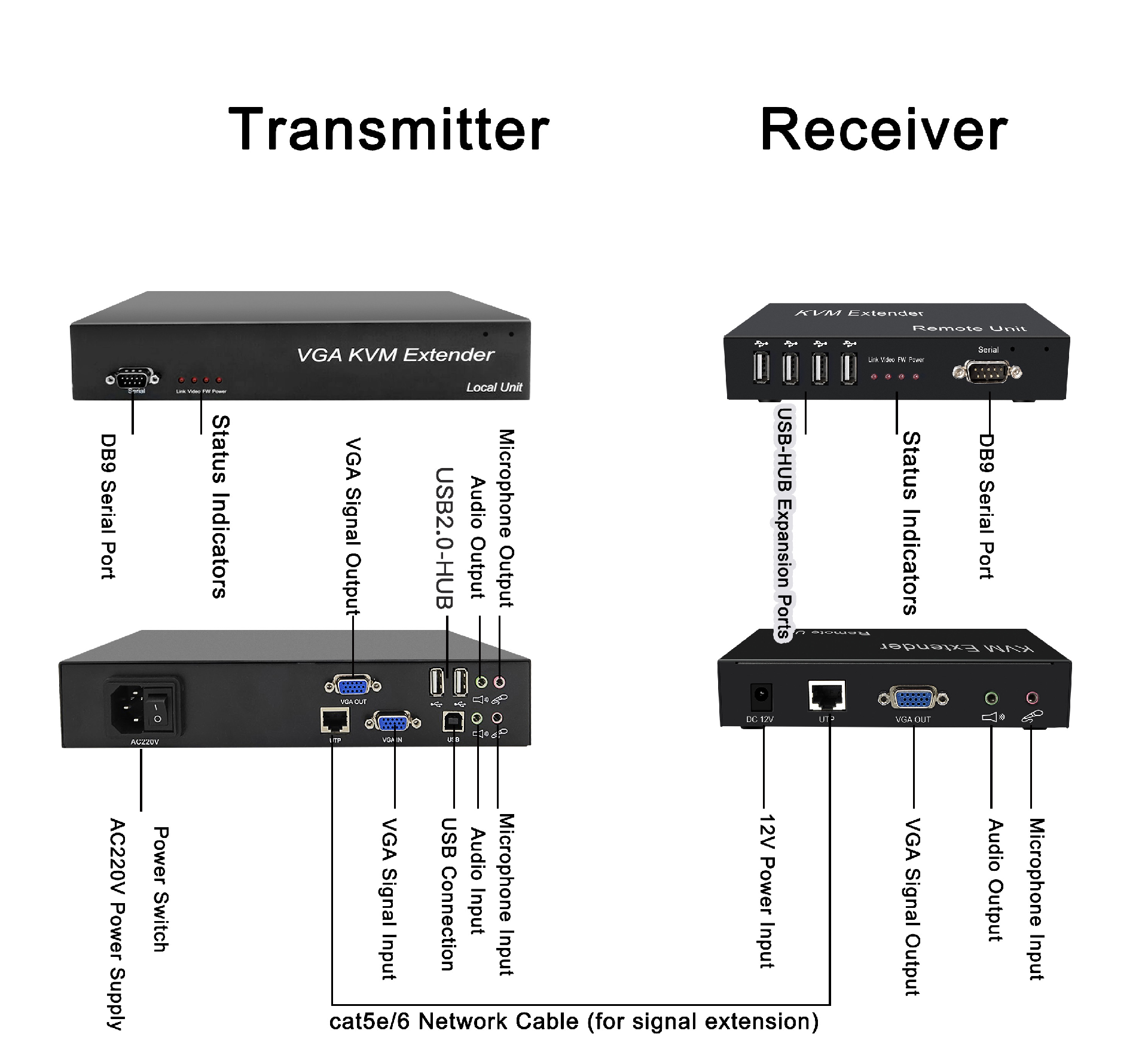

 interface function

Packing List

Thank you for using our product. Please check the packing list first when opening the package.

Product packing list：
