Functional Features

l Dual-channel VGA high-definition signal transmission, adopting HDBaseT lossless transmission technology for clear, smooth images with low latency;

l  Supports independent audio and microphone signal transmission;

l  Supports independent audio and microphone signal transmission;

l Transmits via dual RJ45 network ports；

l Features hot-swappable design;

l Supports high-definition video signal display at a resolution of 1920×1080P@60Hz;

l Equipped with 4 powerful USB ports to meet the usage needs of high-capacity USB devices;

l Supports point-to-point transmission (e.g., pairing the transmitter of a VGA extender with the receiver of a DVI extender).

Hardware Structure

l Metal iron case with baking paint process;

l DC power socket;

l Side heat dissipation slot design process;

l  Smooth transition of the machine's edge, with delicate hand feel；

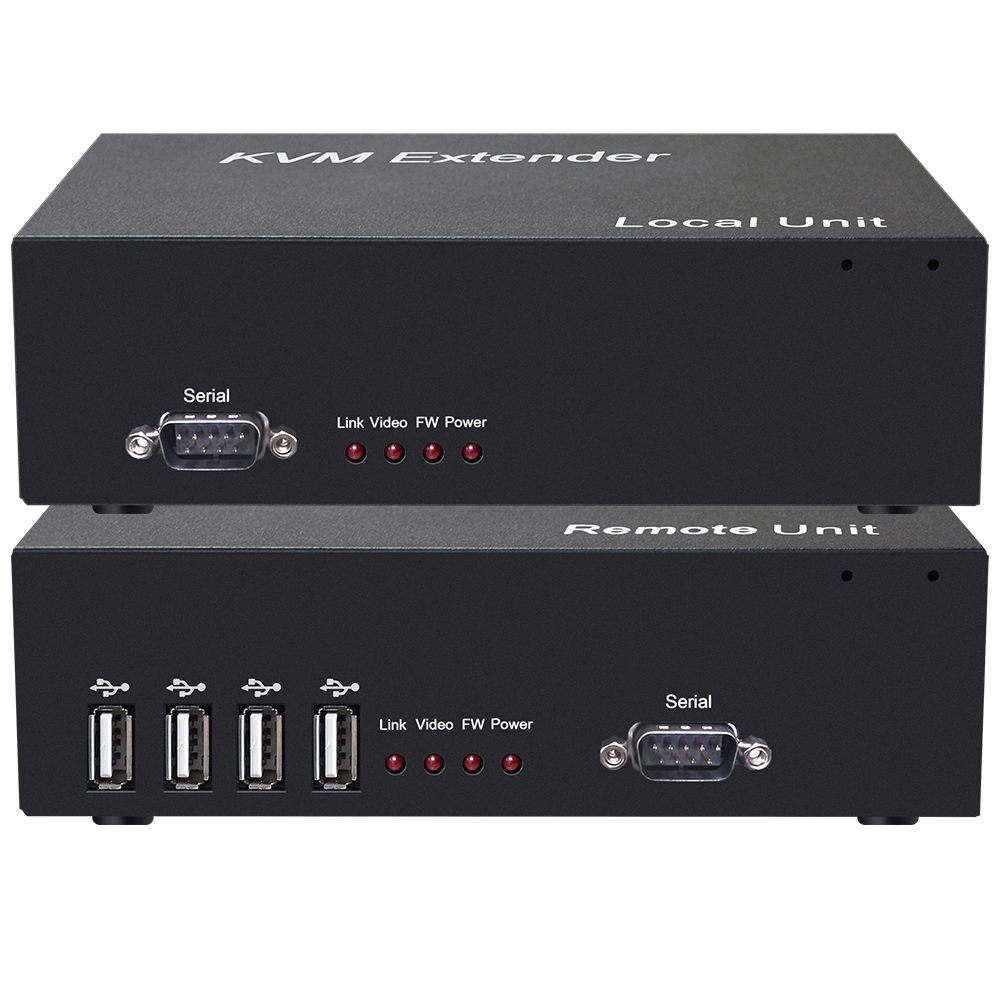

Indicator Lights

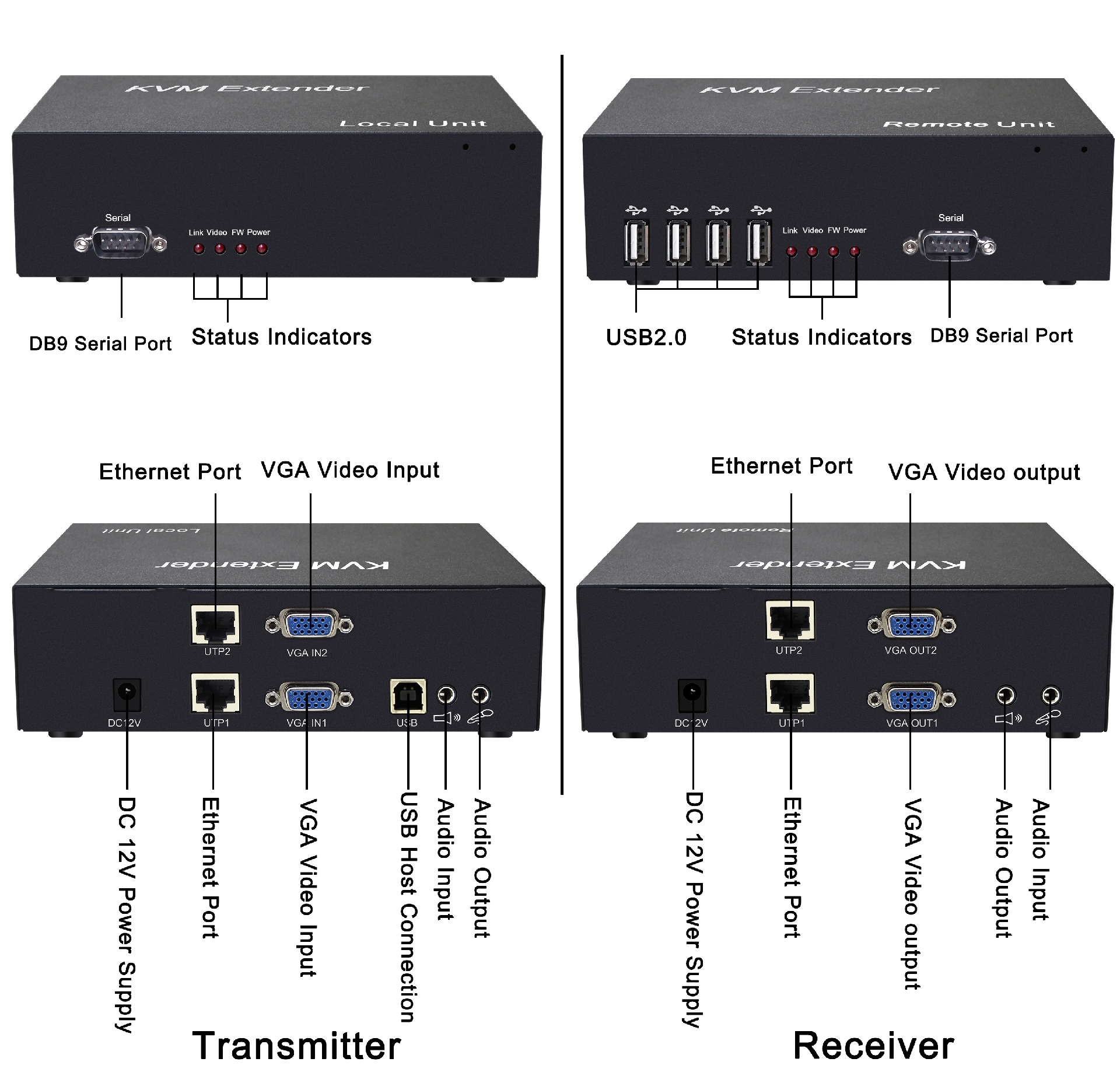

Interface Diagram

Connection Operation

l Connect the transmitter to the host using standard V cables, serial cables, USB cables, and audio/microphone matching cables;

l Connect the receiver to HDMI displays, audio/microphone devices, serial devices, USB keyboards/mice, and other USB devices;

l  Connect the transmitter and receiver via a network cable;

l  Power on the transmitter or receiver;

l  The connection status between the transmitter and receiver is displayed via indicator lights;

l  Supports hot-swapping: controlled devices can be added or removed at any time without turning off the KVM power;

l  Cross-platform support: compatible with mainstream operating systems such as Windows, Linux, and Sun.

Packing List

Thank you for using our product. Please check the packing list first when opening the package.

Product packing details:
