Hardware StructurelMetal iron case with baking paint process;lDC power socket;lSide heat dissipation slot design process;lSmooth transition of the machine's edge, with delicate hand feel；Functional FeatureslExtends signals such as DVI, USB, RS232, and independent s0755 86120002
l Metal iron case with baking paint process;
l DC power socket;
l Side heat dissipation slot design process;
l Smooth transition of the machine's edge, with delicate hand feel；
l Extends signals such as DVI, USB, RS232, and independent stereo audio signals, with a maximum output distance of up to 150 meters;
l Supports HDMI/DVI, VGA, USB, RS232, and independent stereo audio signals;
l Adopts digital lossless transmission technology, ensuring clear, smooth and delay-free images with strong anti-interference ability;
l Uses a single network cable (CAT5E, CAT6, CAT7) for transmission over 60-150 meters, with low cost;
l Supports a maximum resolution of 3840*2160@30Hz and 1080P@60Hz;
l Supports USB2.0 transmission, and provides four USB ports at the Remote end, compatible with any USB2.0 devices;
l Supports point-to-point transmission; lossless extenders can be matched and extended arbitrarily (e.g., the near end of a DVI extender can transmit with the far end of an HDMI extender);
l Supports POE power supply, enabling single-port power supply;
l Supports pass-through ofLPCM 7.1 audio, Dolby® True HD, Dolby Digital® Plus, and DTS-HD® Master Audio™ pass-through；
Indicator Function Description | |
l POWER | Steady on indicates normal power supply |
l FW | Blinking indicates the device is working normally |
l LINK | Steady on indicates successful signal pairing between the transmitter and receiver |
l Video | teady on indicates normal video transmission signal |
Connection Operation

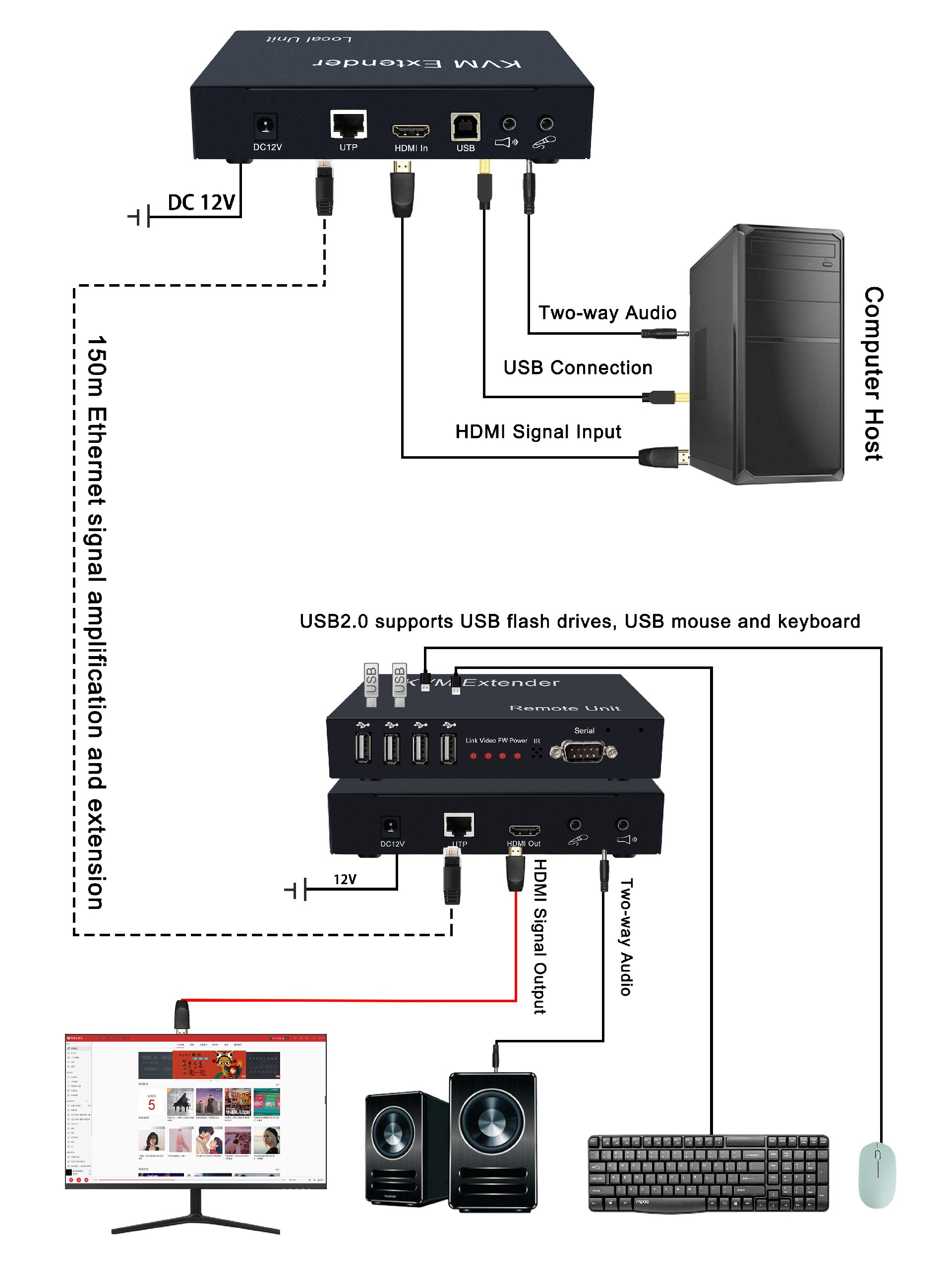

l Connect the transmitter to the host using standard HDMI cables, serial cables, USB cables, and audio/microphone matching cables;
l Connect the receiver to HDMI displays, audio/microphone devices, serial devices, USB keyboards/mice, and other USB devices;
l Connect the transmitter and receiver via a network cable;
l Power on the transmitter or receiver;
l The connection status between the transmitter and receiver is displayed via indicator lights;
l Supports hot-swapping: controlled devices can be added or removed at any time without turning off the KVM power;
l Cross-platform support: compatible with mainstream operating systems such as Windows, Linux, and Sun.
Assembly List
Thank you for using our products. Please open the packaging and first check the product packing list.
Product packing list：
√EX404H Sender | One | |
√EX404H receiver | One | |
√ HDMI video cable | A piece of | |
√Audio cable | A piece of | |
√USBA to B Line | A piece of | |
√12V/2A power adapter | one | |
√ User Manual | A piece of | |
√Warranty card certificate | One copy each | |
Transmitter | Receiver | |

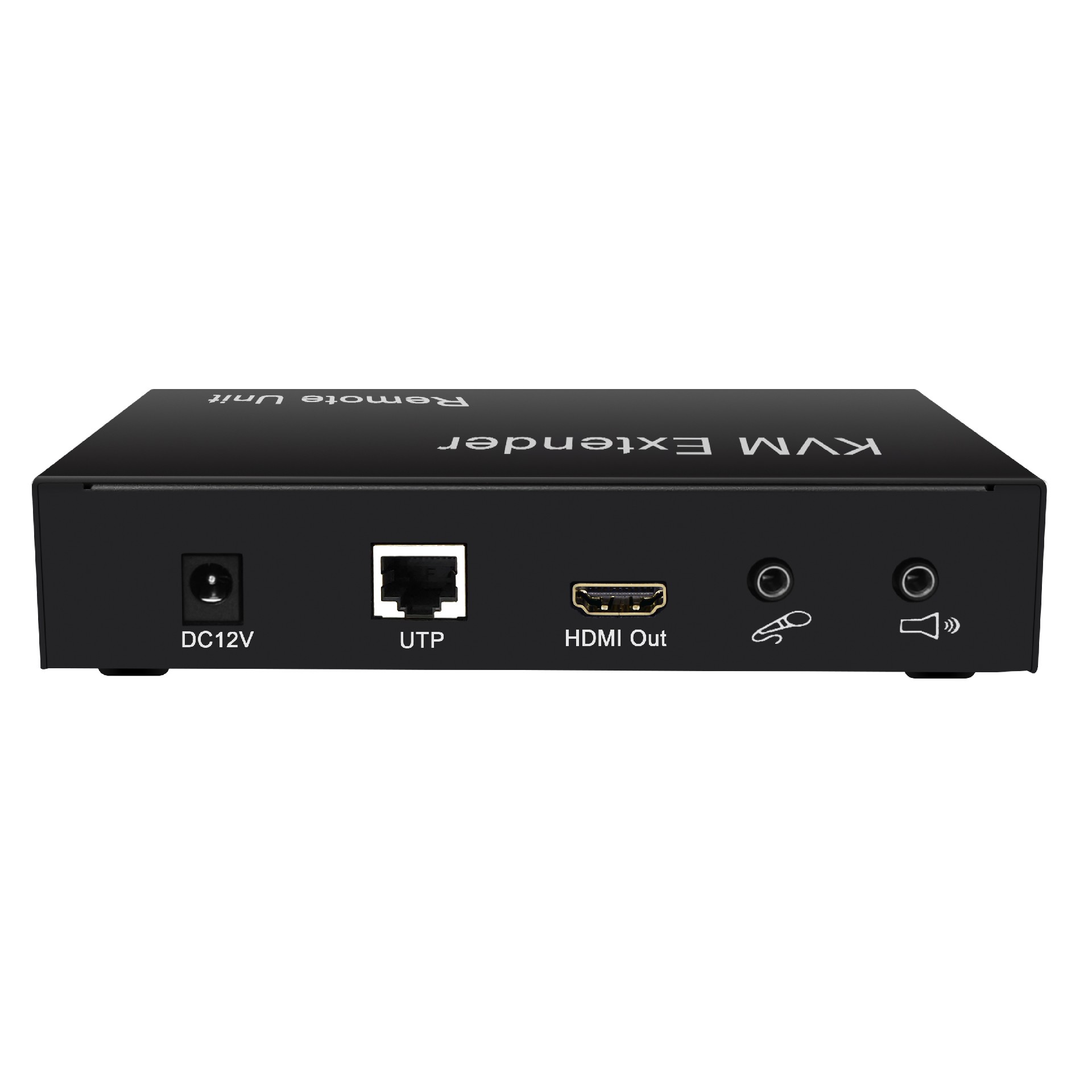

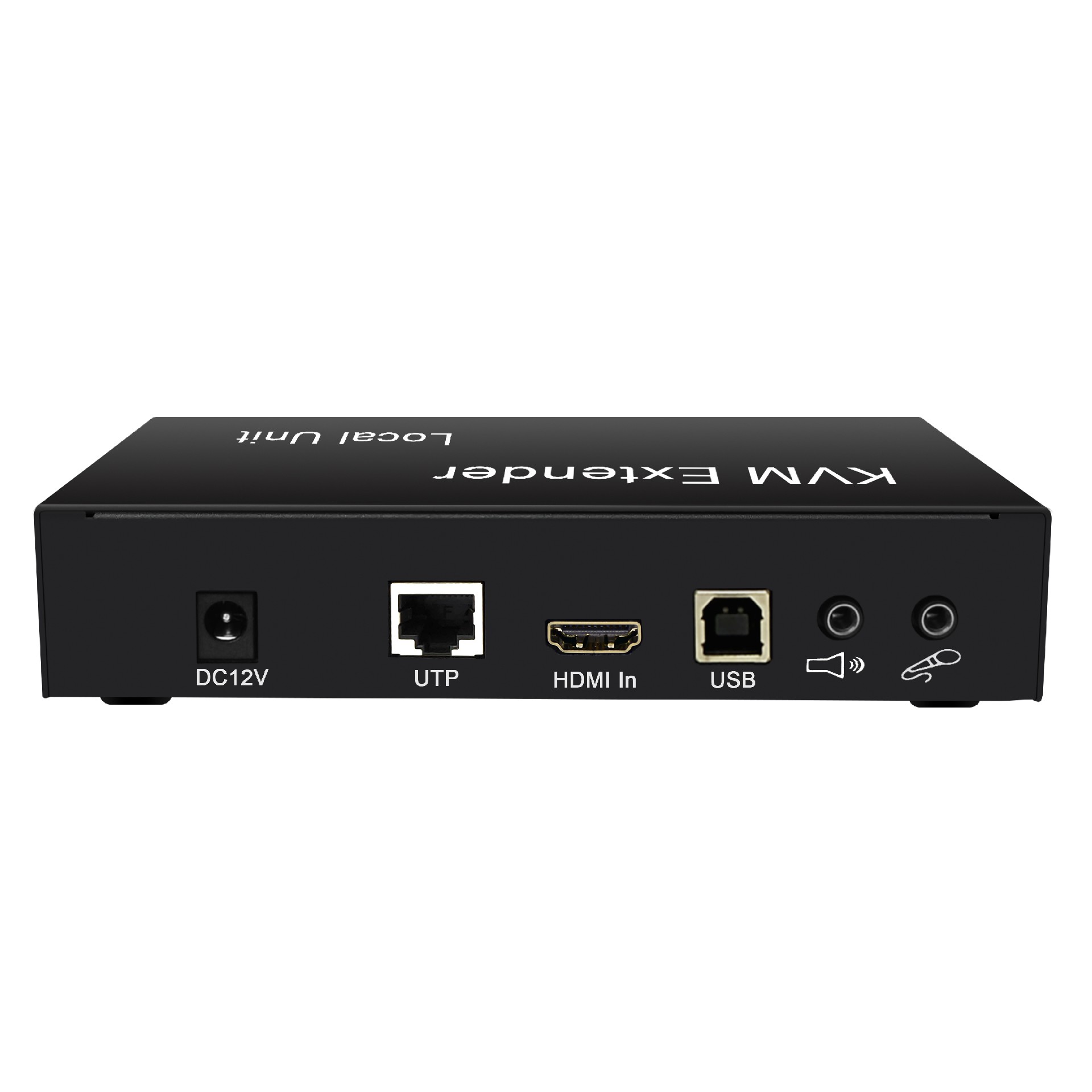

Connection Ports | HDMI video port ×1 | HDMI video port ×1 |
RS232 serial port (DB9) ×1 (function configurable) | RS232 serial port (DB9) ×1 (function configurable) | |
USB port (Type B) ×1 | USB port (TypeA) ×4 | |
Audio port ×1 | Audio port ×1 | |
Microphone port ×1 | Microphone port ×1 | |
Network port ×1 | Network port ×1 | |

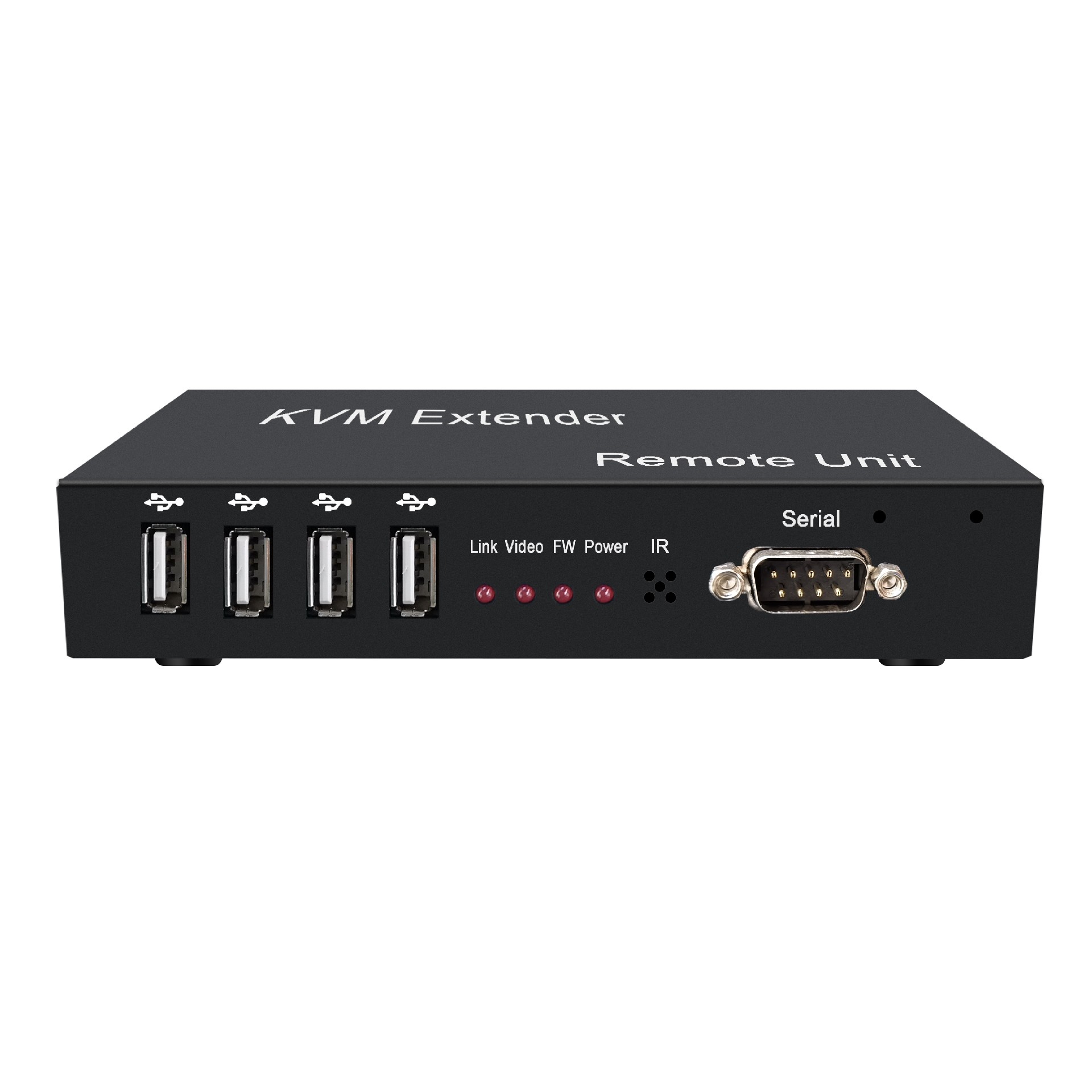

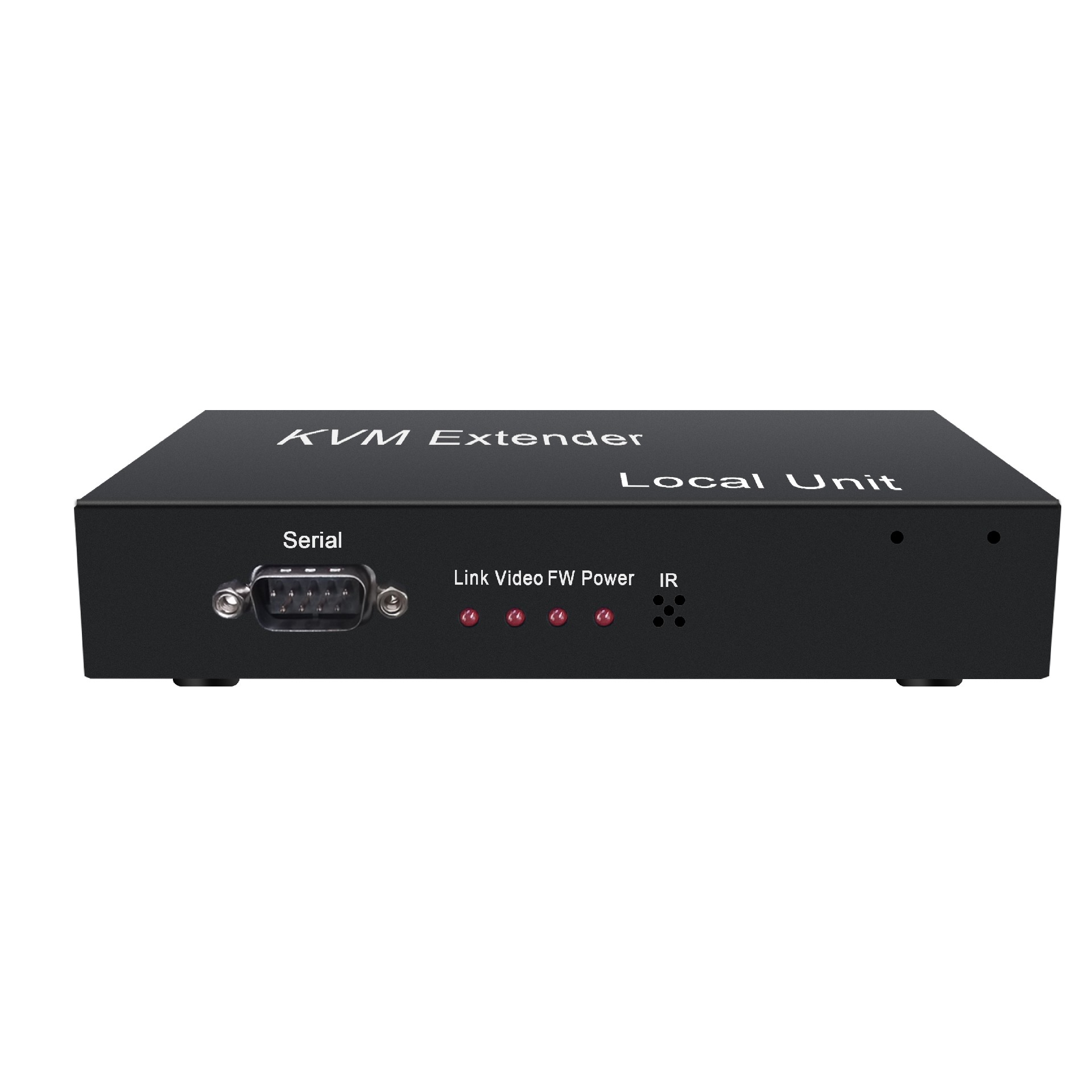

Indicator Lights | Video Indicator light x 1 | Video Indicator light x 1 |
Link Indicator light x 1 | Link Indicator light x 1 | |
PowerIndicator light x 1 | PowerIndicator light x 1 | |
FW Indicator light x 1 | FWIndicator light x 1 | |
Resolution | 3840×2160@30Hz (up to 60-80m) 1920×1080P@60Hz (up to 100-150m) | 3840×2160@30Hz (up to 60-80m) 1920×1080P@60Hz (up to 100-150m) |
Power Supply | Power port ×1 | Power port ×1 |
DC12V2A | DC12V2A | |
Operating Environment | Recommended operating temperature: 0-50°C | Recommended operating temperature: 0-50°C |
Storage temperature: -20-60°C | Storage temperature: -20-60°C | |
Humidity: 0-90% RH (non-condensing) | Humidity: 0-90% RH (non-condensing) | |
Physical Characteristics | Iron shell | Iron shell |
155（L）× 98（W）× 28（H）mm | 155（L）× 98（W）× 28（H）mm |
