分类：Video extender -HDbaseT
描述：

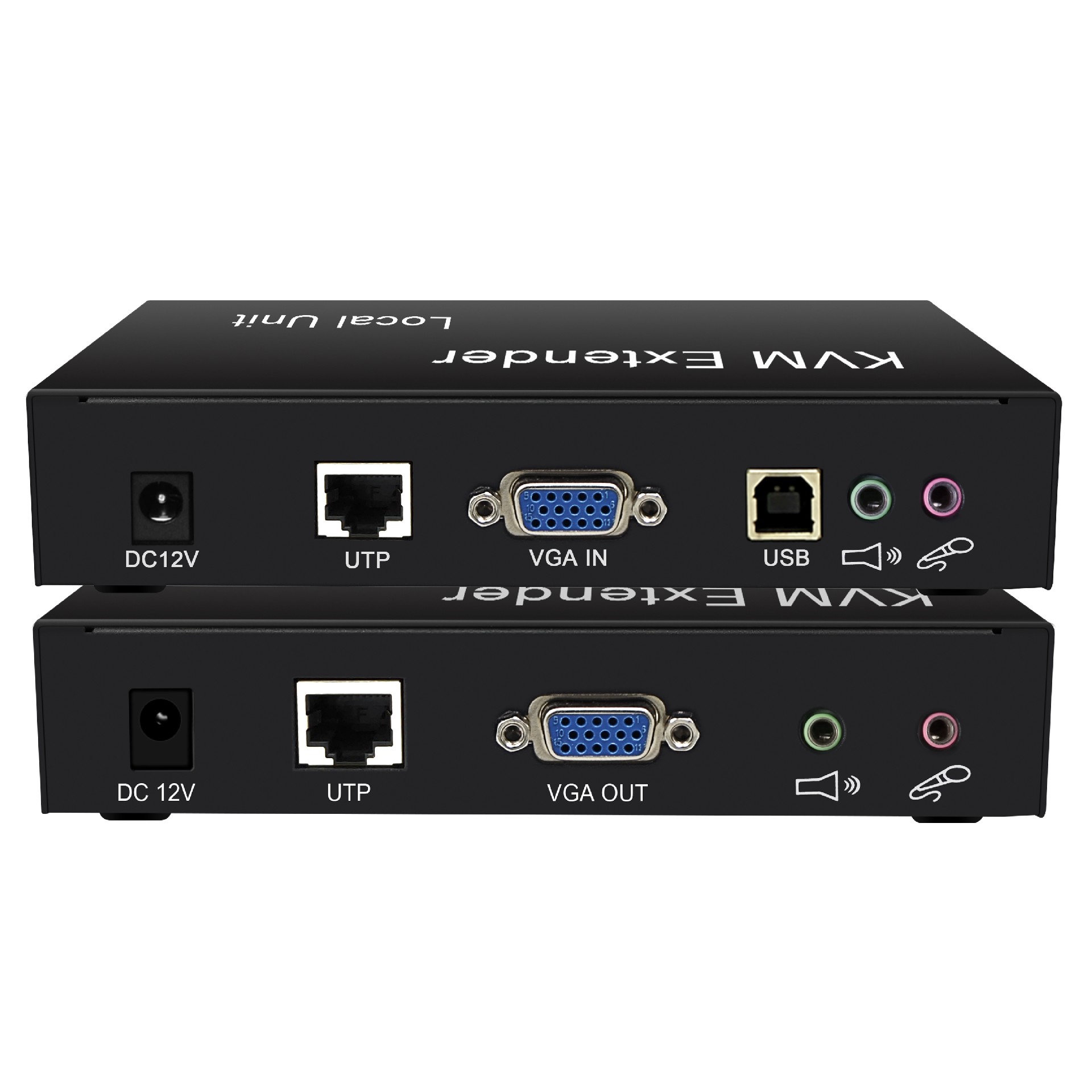

Hardware structurelMetal iron shell body with baked paint process；lDC Power Interface；lSide heat dissipation and anti-slip design process；lThe edge of the body is smooth and the touch is fine；functional characteristicslSupports extended VGA signals, USB, RS2320755 86120002
l Metal iron shell body with baked paint process；
l DC Power Interface；
l Side heat dissipation and anti-slip design process；
l The edge of the body is smooth and the touch is fine；
l Supports extended VGA signals, USB, RS232, and independent stereo audio signals, with an output range of up to 150 meters.
l The system employs digital HDbaseT uncompressed transmission technology, delivering crystal-clear, seamless video with zero lag and exceptional interference resistance.
l Using a single network cable (CAT5E, CAT6, CAT7) for transmission, cost-effective
l Supports up to 1080P@60Hz;
l Supports USB 2.0 transfer and provides four USB ports on the Remote end, supporting any device that is compatible with USB 2.0；
l Full-duplex RS232 transmission, with a maximum baud rate of 115200bps；
l Supports point-to-point transmission, allowing extenders without compression to be freely paired for extension. For example, the near end of a DVI extender can transmit to the far end of an HDMI extender.
l SupportLPCM 7.1 audio, Dolby® True HD, Dolby Digital® Plus, and DTS-HD® Master Audio™ pass-through；
Function Description | |
l POWER | A steady light indicates that the power is properly connected. |
l FW | Flashing indicates that the device is operating normally |
l LINK | Constantly lit indicates that the signal pairing between the transmitter and receiver is successful |
l Video | The constant light indicates that the video transmission signal is normal. |

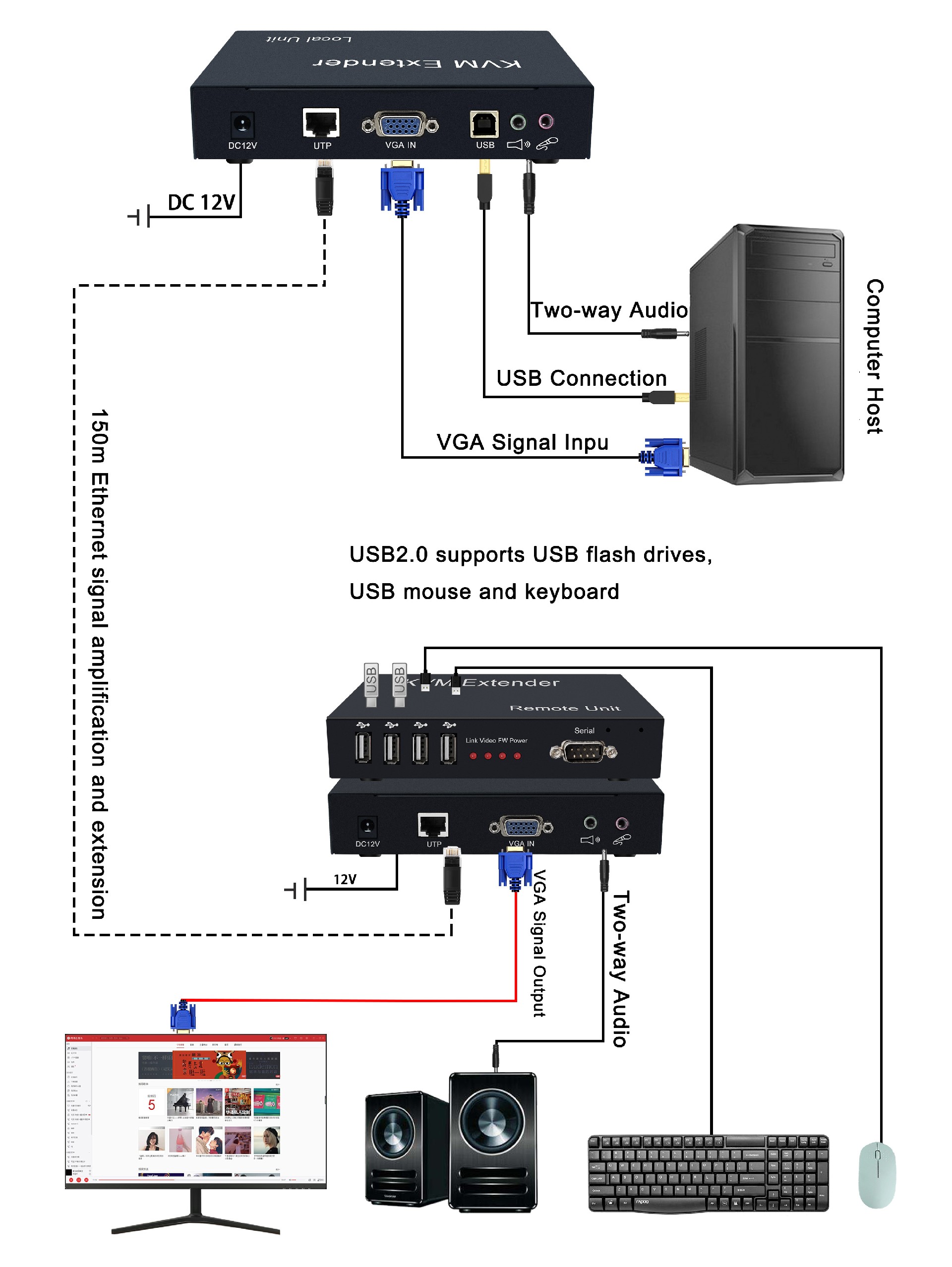

attended operation
l The transmitter connects to the controlled host using standard VGA video cables, serial cables, USB cables, and audio microphone cables.
l The receiver connects to VGA monitors, audio microphones, serial ports, USB keyboards, mice, and other USB devices.
l The sender and receiver are connected directly by a network cable.
l Power on the transmitter and receiver；
l The sender and receiver display the connection status through indicator lights;
l Supports hot-swapping, allowing you to add or remove controlled devices at any time without shutting down the KVM power.
l Cross-platform support for mainstream operating systems including Windows, Linux, and Sun
Thank you for using our company's products. Please first open the packaging and check the product packing list.
Product Packing List：
√ EX404A Sender | A machine |
√ EX404A Sender | A machine |
√ VGA Video Line | A piece of |
√ Audio cable | A piece of |
√ USBA to B Line | A piece of |
√ 12V/1A power adapter | Two |
√ User Manual | a part |
√ Warranty Card Certificate of Conformity | One copy each |

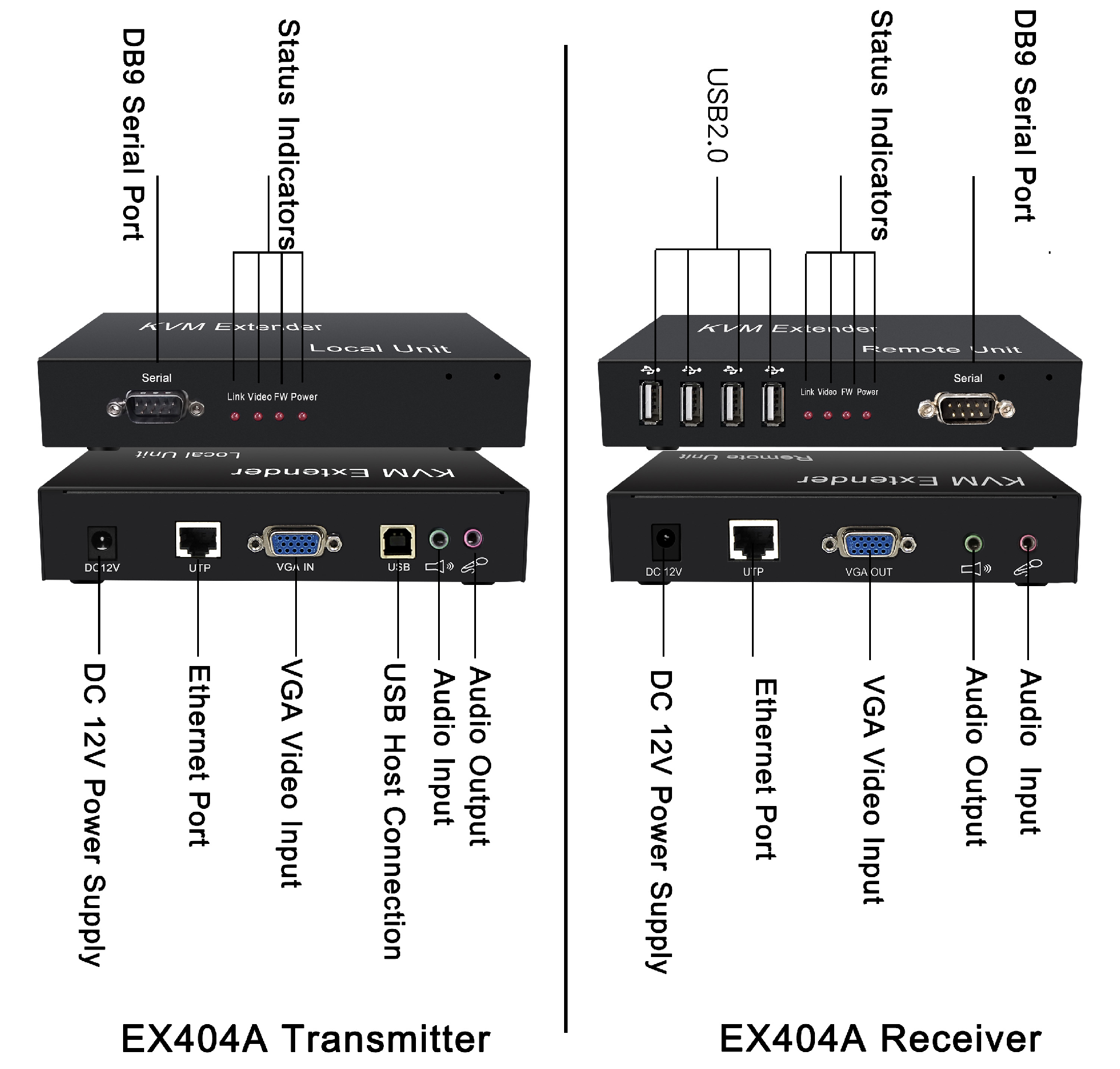

Sender End | Receiver End | |
Connection port | VGA video interface*1 | VGA video interface*1 |
RS232 serial port*1 (DB9 pin) | RS232 serial port*1 (DB9 pin) | |
USB Type B port*1 | USB Type-A port*4 | |
Audio Interface*1 | Audio Interface*1 | |
Microphone interface*1 | Microphone interface*1 | |
Ethernet port*1 | Ethernet port*1 | |
Indicator light | Video indicator light*1 | Video indicator light*1 |
Link indicator*1 | Link indicator*1 | |
Power indicator*1 | Power indicator*1 | |
FW indicator*1 | FW indicator*1 | |
Resolution | 1920*1080@60Hz 60-150 meters 1920*1080 and other common resolutions | 1920*1080@60Hz 60-150 meters 1920*1080 and other common resolutions |
Power supply | Power Input *1 | Power Input *1 |
DC12V1A | DC12V1A | |
Work environment | Recommended operating temperature: 0~50°C | Recommended operating temperature: 0~50°C |
Storage temperature: -20 to 60 °C | Storage temperature: -20 to 60 °C | |
Humidity 0~90% RH, no condensation | Humidity 0~90% RH, no condensation | |
Physical properties | Iron shell | Iron shell |
155（L）× 98（W）× 28（H）mm | size 155（L）× 98（W）× 28（H）mm |
