Product Features

■ Extend DVI, USB, RS232 (optional), audio, headset signals, etc.

■Adopting HDBaseT digital uncompressed (non-compressed) transmission technology, the image is clear, smooth, and has no delay, with strong anti-interference capability;

■ HDbaseT chip with long-distance transmission support, can extend up to 150 meters

■ Transmit using a 10Gbps network port

■ Transmit using a single Ethernet cable (CAT5E, CAT6, CAT7), which is cost-effective；

■ Supports full HD video 1080P@60Hz

■ Supports USB2.0 transmission and provides four USB ports on the remote end for USB2.0 devices.；

■Dual-screen expansion, focus on concentrated work, and no details are missed

■Supports mixed connections, with DVI compatible with VGA and HDMI.

■Full-duplex RS232 transmission with a maximum baud rate of 115,200 bps; (optional)

■ Independent stereo audio signal and earphone signal transmission;

■ support LPCM 7.1 audio, Dolby® True HD, Dolby Digital® Plus, and DTS-HD® Master Audio™ pass-through

Product Configuration

Interface Schematic Diagram

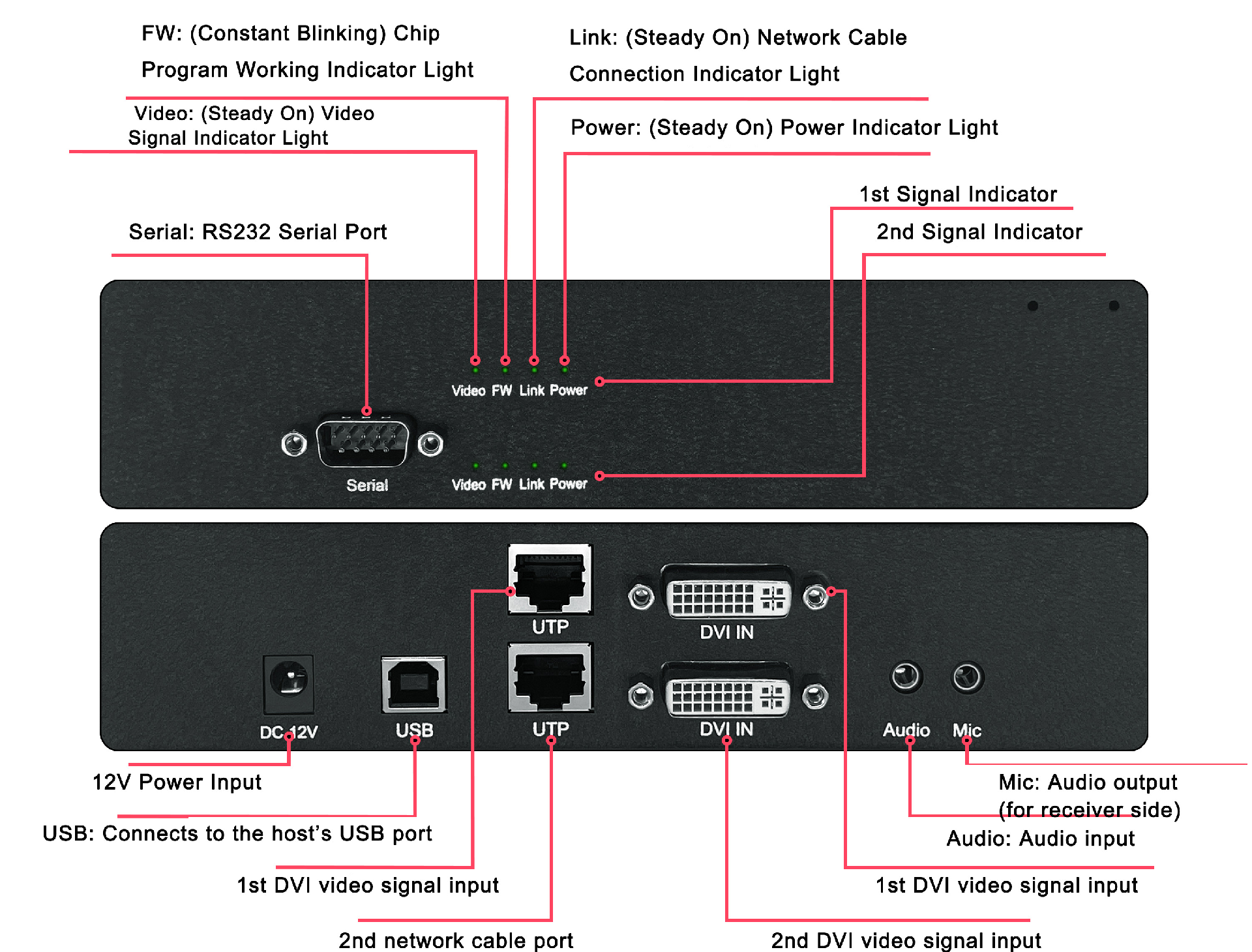

Sender End

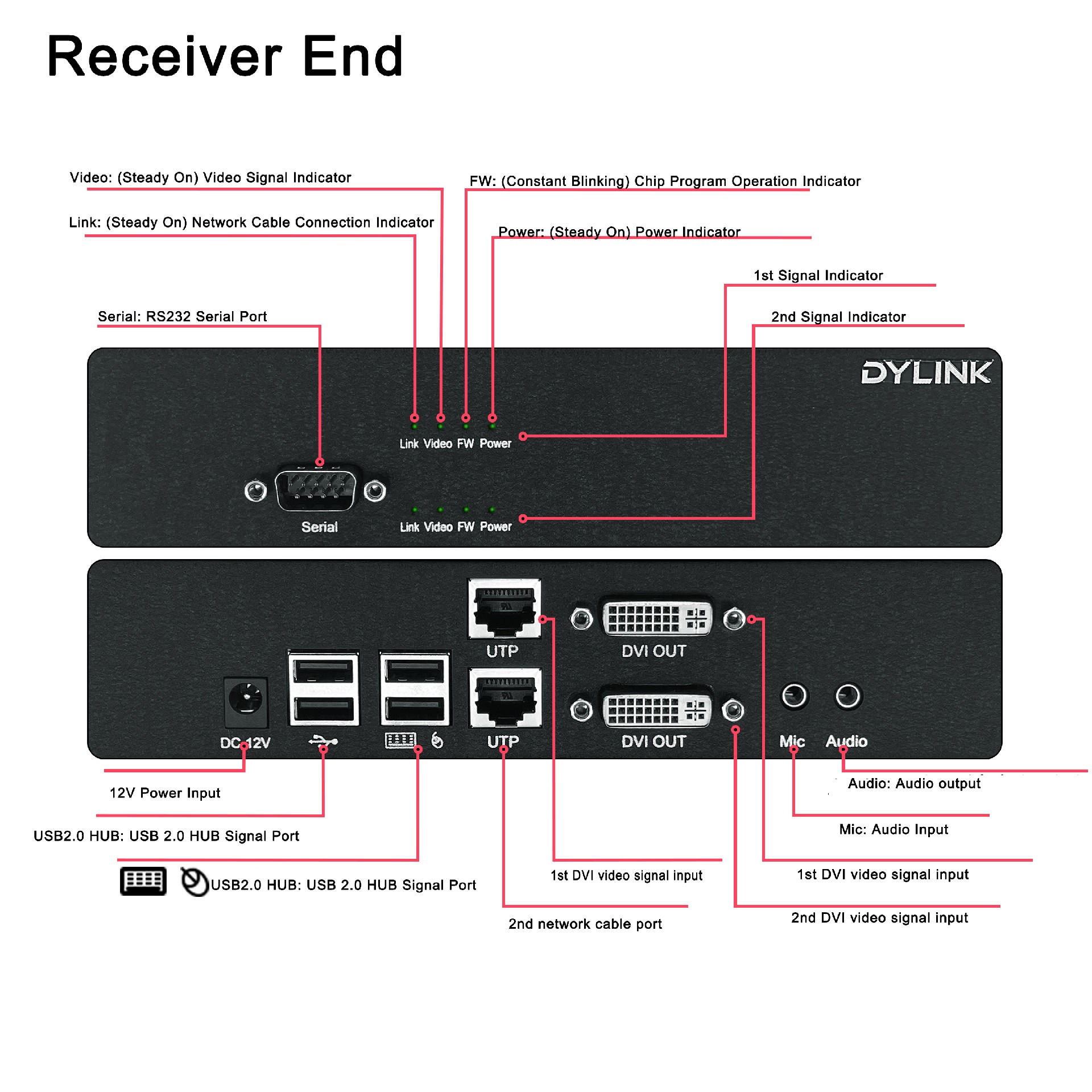

Receiver End

Operation Guide

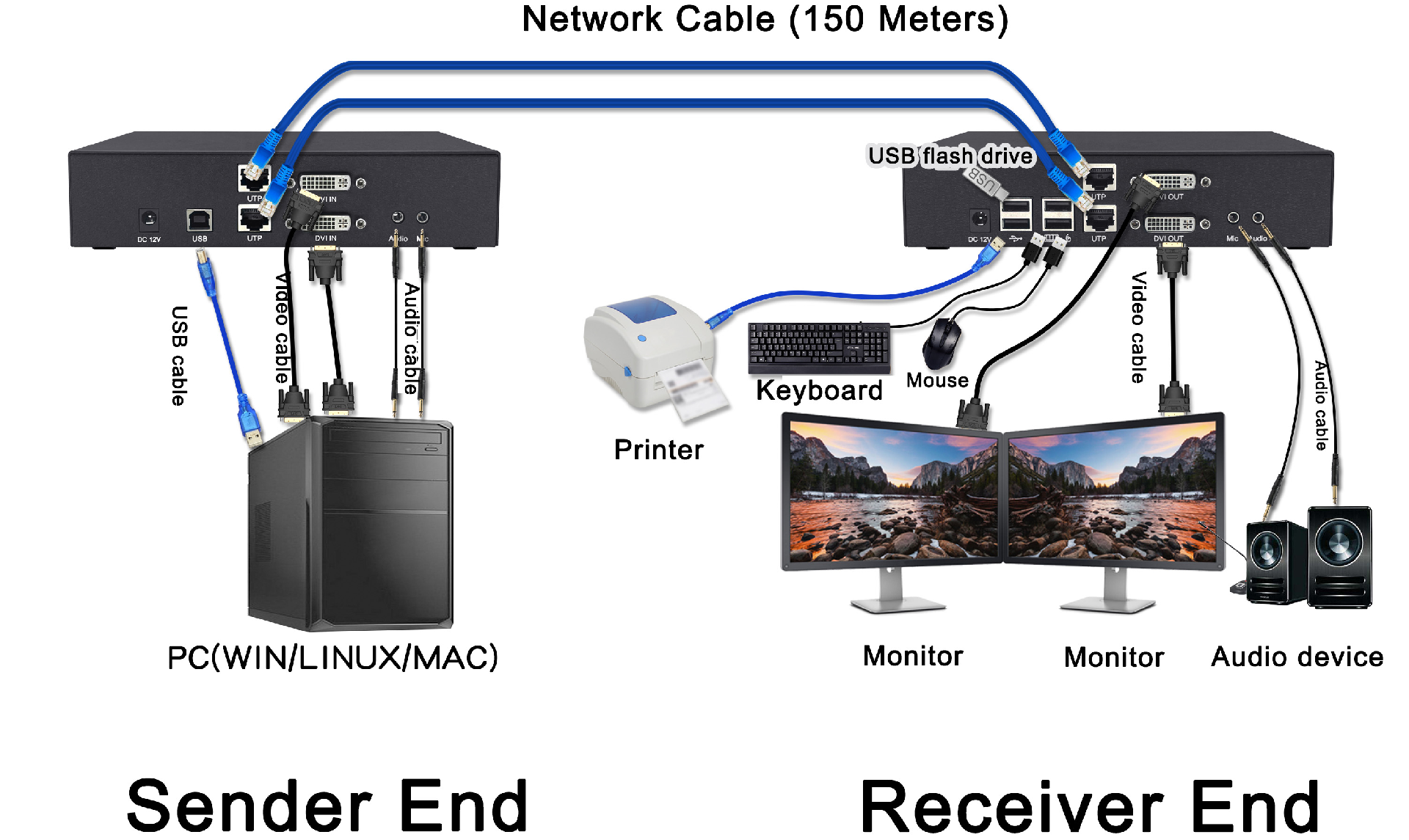

1、The sender connects to the controlled host using DVI video cables, USB cables, and audio microphone wiring.

2、The receiving end is connected to a DVI monitor, audio microphone device, USB keyboard and mouse, as well as other USB devices;；

3、The sender and receiver are connected directly via a network cable.

4、Power on the transmitter and receiver；

5、The sender and receiver display the connection status through indicator lights；

6、Support hot swapping, allowing controlled devices to be added or removed at any time without needing to power off via KVM.

7、Cross-platform support for mainstream operating systems including Windows, Linux, and Sun.

Assembly List

Thank you for using our company's products. Please first open the packaging and check the product packing list.

Product Packing List：
