Product Features

■ Extend HDMI, USB, RS232 audio, headset signal, etc.；

■ The HDBaseT digital uncompressed transmission technology delivers crystal-clear, smooth video with zero lag and exceptional interference resistance.

■HDbaseT chip with long-distance transmission support, can extend up to 150 meters

■ Use a 10Gbps network port for transmission

■Transmit using a single network cable (CAT5E, CAT6, CAT7);

■ Supports video resolutions such as 3840*2160@60Hz, 1080P@60Hz, and is downward compatible with multiple other resolutions;

■ Supports USB 2.0 transfer and provides four USB ports on the Remote end for USB 2.0 devices.

■ Supports mixing and matching; HDMI can be used with devices that have VGA or DVI interfaces.

■Full-duplex RS232 transmission, with a maximum baud rate of 115200bps; (Optional)

■ Independent stereo audio signal and earphone signal transmission;

Interface Schematic Diagram

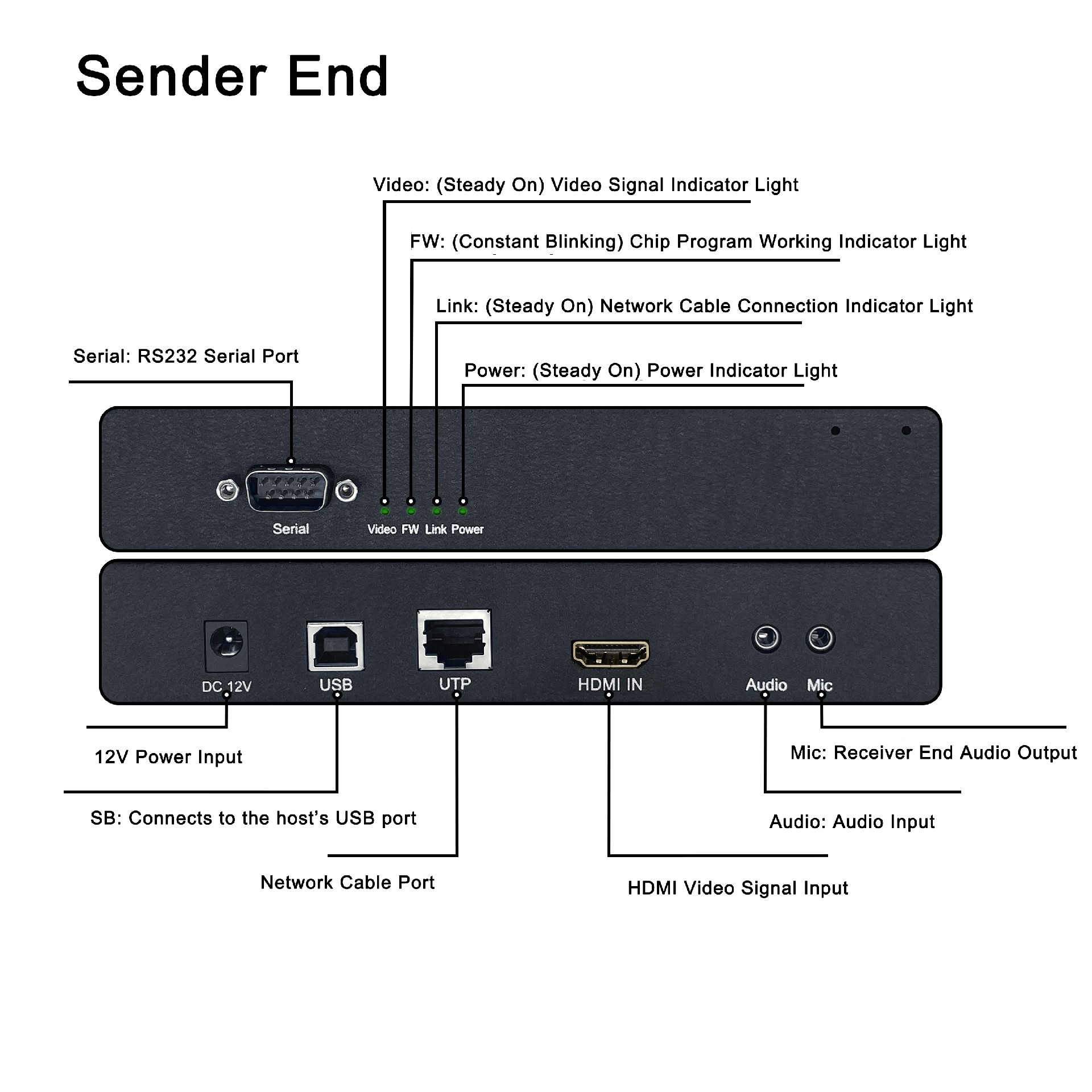

Sender End

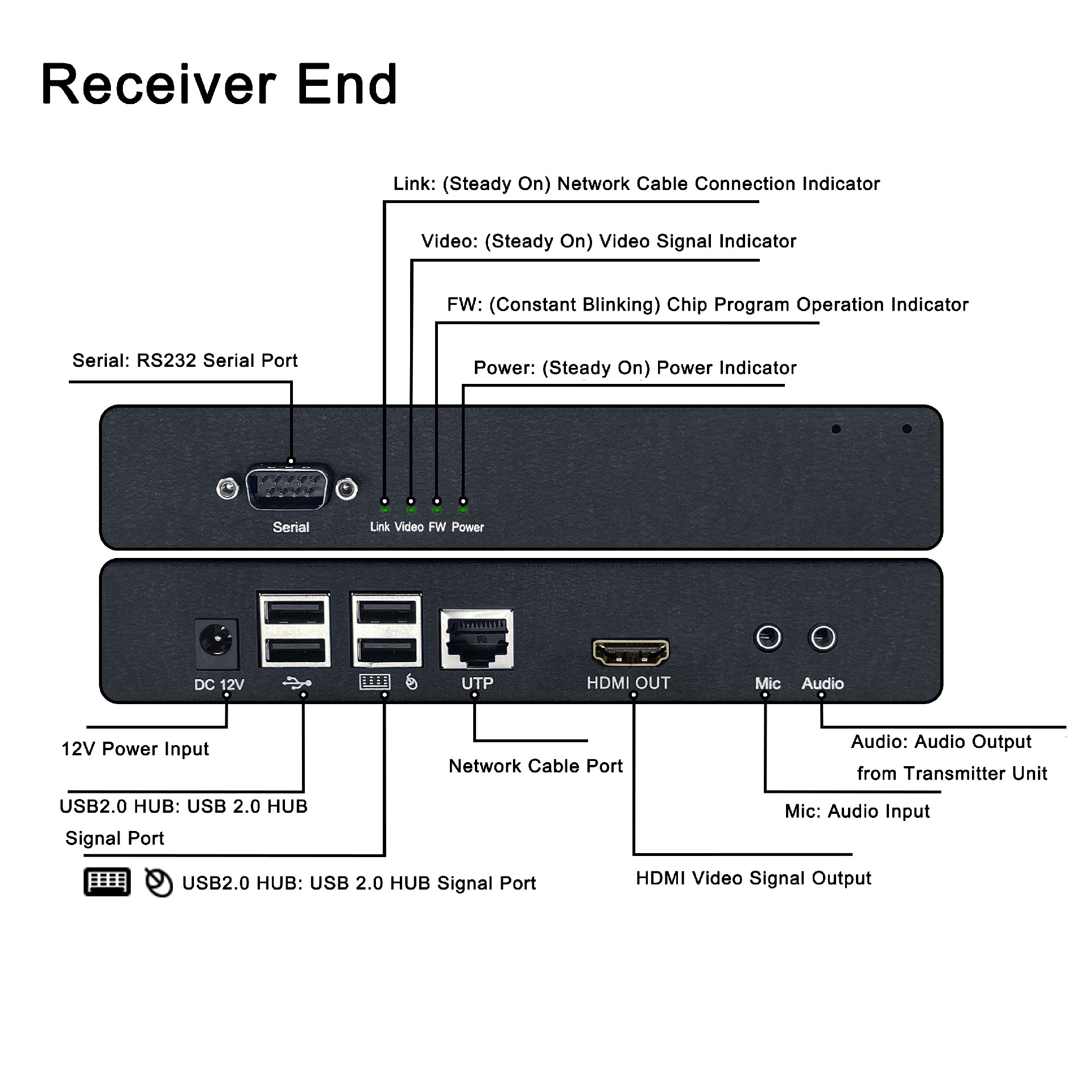

Receiver End

Operation Guide

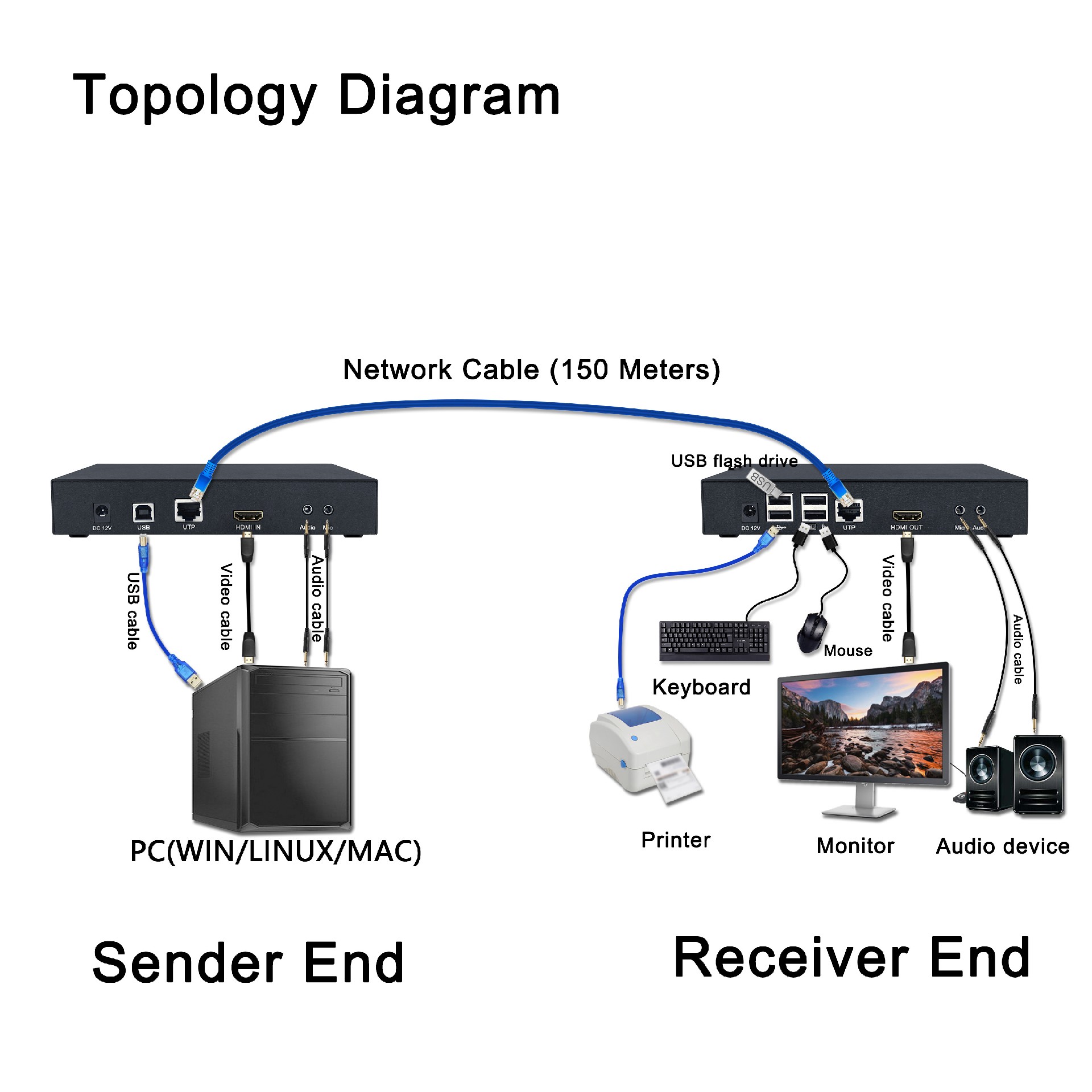

1、The transmitting end connects to the controlled host using HDMI video cables, USB cables, and audio microphone wiring;

2、The receiving end is connected to an HDMI monitor, audio microphone device, USB keyboard, mouse, and USB devices;

3、The sender and receiver are connected directly via a network cable;

4、Connect the power supply of the transmitting end and the receiving end;

5、The sender and receiver display the connection status through indicator lights;

6、Supports hot-swapping, allowing controlled devices to be added or removed at any time without needing to power off via KVM.

7Cross-platform support, supporting mainstream operating systems such as Windows, Linux, and Sun.

Assembly List

Thank you for using our company's products. Please first open the packaging and check the product packing list.

Product Packing List：
