Product characteristics

■ Extend DVI, USB, RS232 (optional), audio, headset signal, etc；

■ Using HDBaseT digital no-compression (non-compression) transmission technology, the image is clear and smooth without delay, strong anti-interference ability;

■ HDbaseT Chip far transmission blessing, can be extended by 150 meters;

■ Using the 10 Gbs network port transmission;

■ Using a single network cable (CAT 5 E, CAT 6, CAT 7) transmission, low cost;

■ Support for Full HD video at 1080P@60Hz;

■ Support USB2.0 transmission, and provide four USB ports in the Remote end, support USB2.0 devices;

■ Support mixing and matching, DVI can be connected with VGA  HDMI;■Full duplex RS232 transmission with maximum rate of 115,200 bps (optional)

■ Independent stereo audio signal and headset signal transmission;

■ SupportLPCM 7.1 audio, Dolby® True HD, Dolby Digital® Plus, and DTS-HD® Master Audio™ pass-through

operation manual

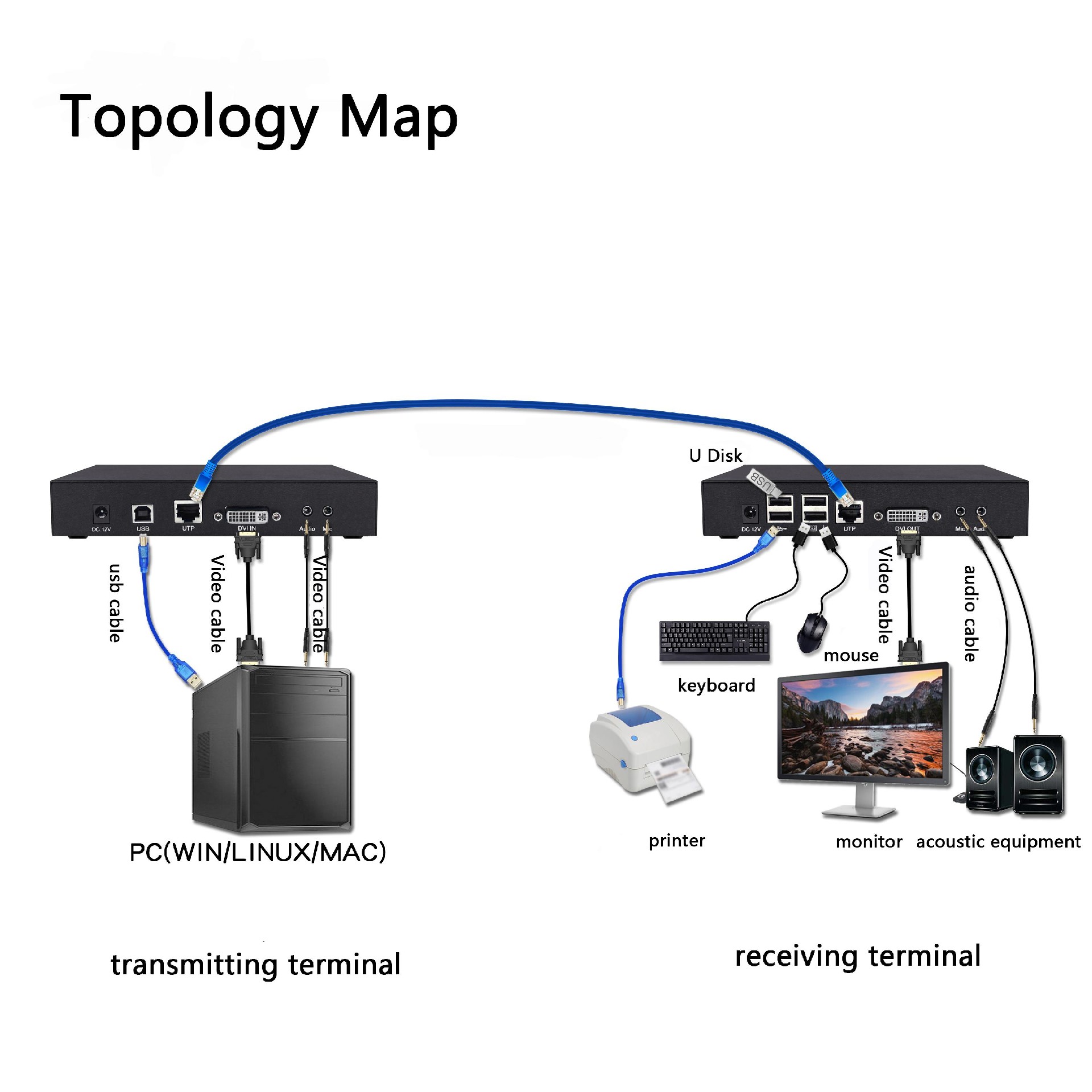

1、The sender uses DVI video line, USB line, audio microphone wiring to connect to the controlled host;

2、The receiver connects to the DVI monitor, audio microphone device, USB keyboard, mouse and USB device；

3、Between the sending terminal and the receiving terminal are connected directly through the network cable;

4、Connect the power supply at the sending end and the receiving end;

5、The sending end and the receiving end display the connection status through the indicator light;

6、Support hot plug, you can add or remove the controlled equipment at any time without KVM power shutdown;

7、Cross-platform support with mainstream operating systems such as Windows, Linux and Sun.

Schematic diagram of interface

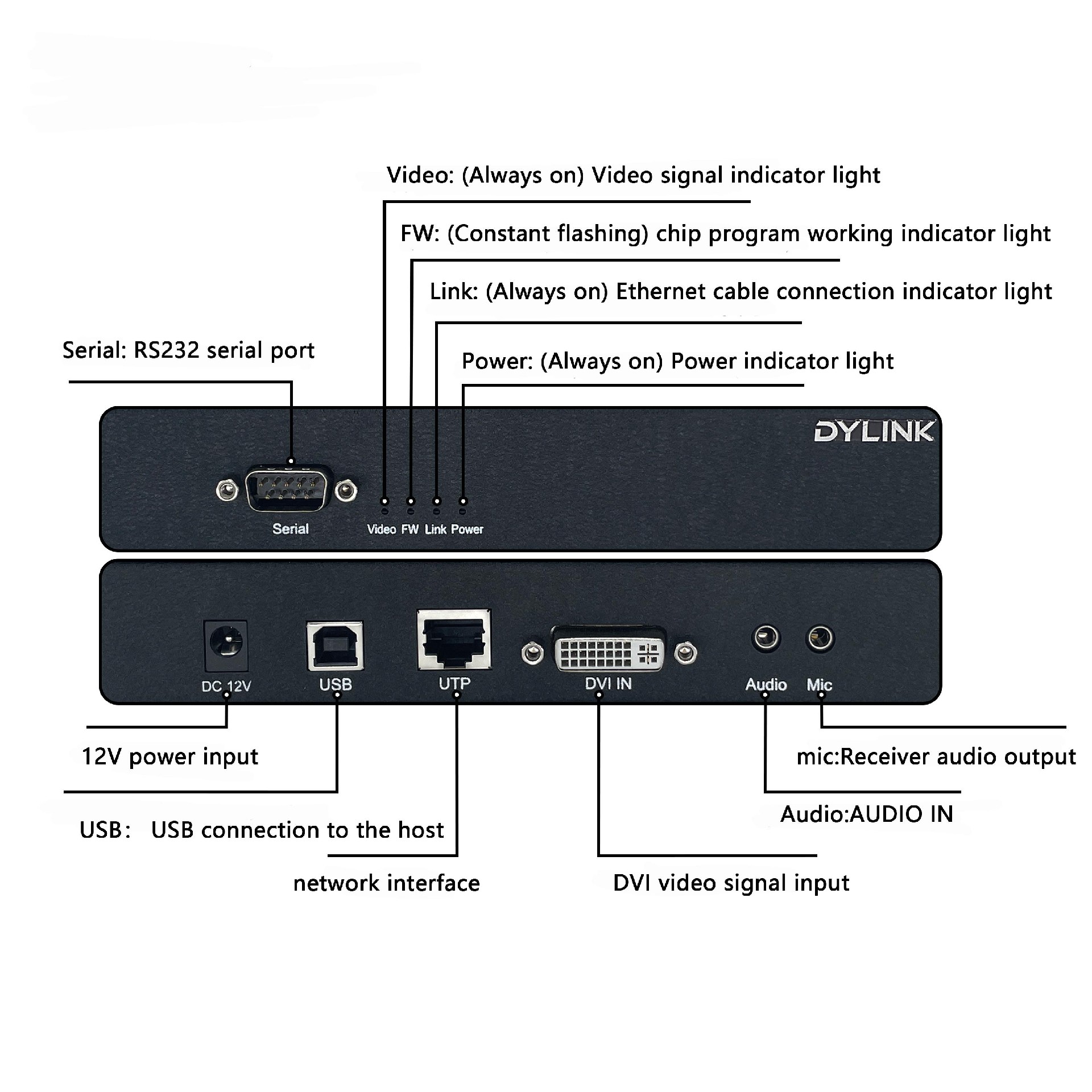

transmitting terminal

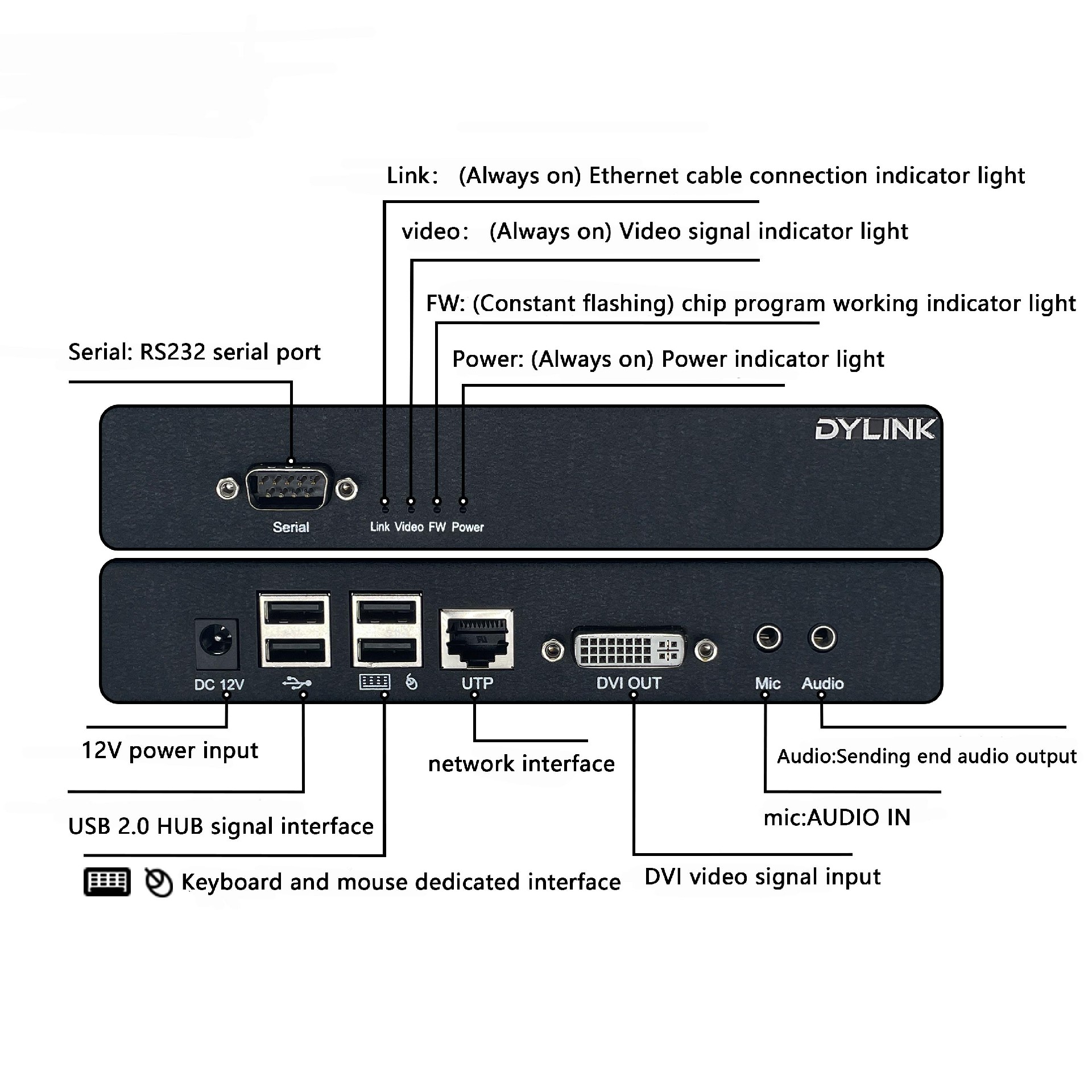

receiving terminal

Assembly list

Thank you for using our products, please open the packaging is the first to clear the product packing list

Detailed list of product packing products：
