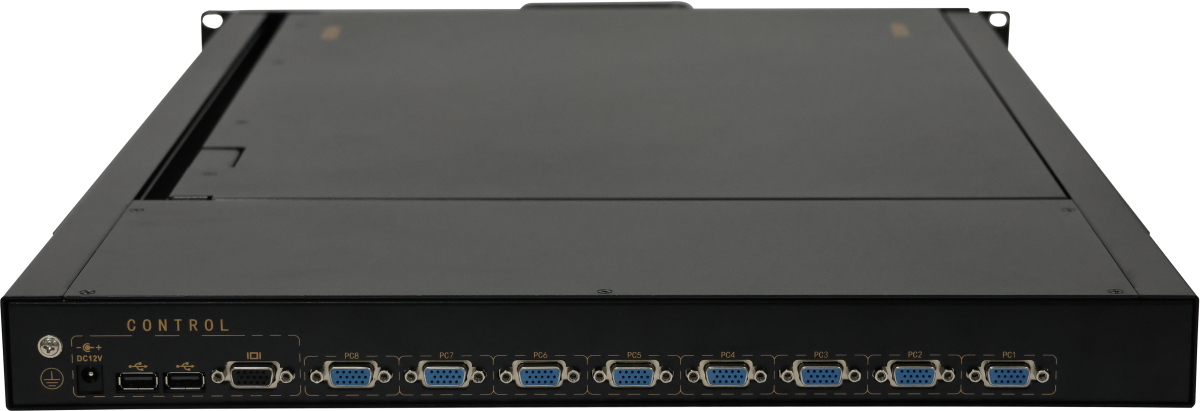

Product Introduction

DY-SW2208AHis a rack-mounted 21.5-inch 8-port LCD KVM switch. It features high-definition image quality without distortion, snow, or ghosting. The device comes with an additional local control port, allowing external connection of a set of keyboard, mouse, and display. It adopts a rack-mounted installation design, which is simple to install and easy to operate. The body is sleek and sturdy, making it a professional choice.

Product Features

l Integrates a 21.5-inch high-definition LED screen, keyboard, mouse, and switch into an all-in-one unit

l LCD display adjustment function; the guide rail is equipped with a self-locking device

l  Drawer-type installation design, adjustable in length to fit various cabinet spaces

l Supports Microsoft IntelliMouse (Pro), Optical, Mouse Man, Wheel Mouse, Scroll Point, Serial Mouse, etc.

l  Automatically records and saves the keyboard’s original working status when switching computers

l  KVM OSD menu supports multiple language options

l Auto-scan function enables the KVM to scan computers one by one

l  Complete DDC2B function allows non-switched computers to detect the monitor model

l Excellent video performance, with a maximum resolution of 1920*1080 @ 60Hz

l  Dual-interface PS/2/USB keyboard-mouse switch for connecting and controlling computers

l  Front-panel USB port on the KVM supports both wired and wireless mice

l Supports 2 modes: cascading and daisy-chaining, enabling unified operation of up to 2000 computers

l  User-friendly design: installable and detachable by a single person, improving administrator efficiency

l  Compatible with various server and industrial computer brands in computer rooms, such as IBM, DELL, HP, SUN, Lenovo, Advantech, PONTRON, EVOC, etc.

l Supports operating systems including Microsoft, Linux, Unix, etc.

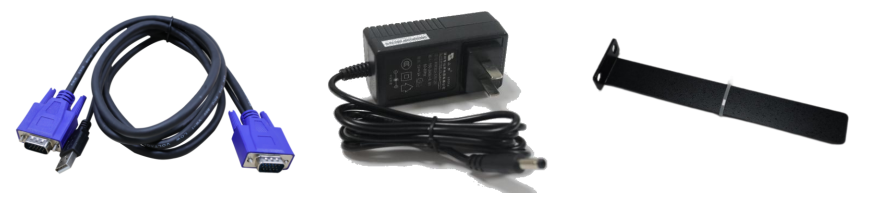

Product Accessories

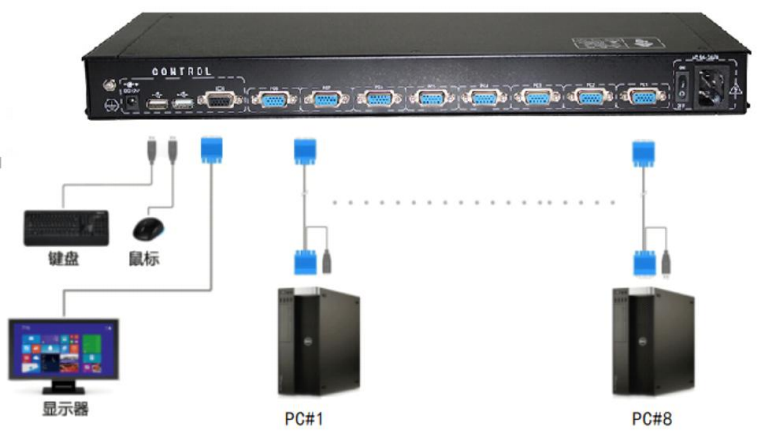

Product Connection Diagram

Specification Parameters
