Product Introduction:

DY-SW1916AThis rack-mounted 19-inch LCD KVM switch features 16 ports with crystal-clear HD video—no distortion, snow, or ghosting. It includes a dedicated local control port for external keyboard/mouse/monitor setup. The sleek, rugged design ensures hassle-free installation and professional-grade performance.

Product Features

l Integrated 19" LED Screen/Keyboard/Mouse/Switcher

l Adjustment Function of LED LCD Screen with Self-locking Device on Guide Rail

l The pull-out installation design allows length adjustment to fit various cabinet spaces.

l Support Microsoft IntelliMouse （Pro）， Optical, Mouse Man。

l Wheel Mouse，Scroll Point，Serial Mouse etc。

l When switching computers, the original keyboard state is automatically recorded and saved.。

l The Hot-key feature provides more convenient management operations.

l The Auto-scan feature enables KVM to automatically scan each computer.

l （Set up auto-scan through the OSD control menu for convenient management。）

l Excellent video quality, with the best resolution reaching1280*1024 60HZ

l Dual interface PS/2/USB keyboard and mouse switcher for computer connection control

l Complete DDC2B functionality detects screen models without switching computers

l Supports cascading multiple devices, with 16 ports connecting up to 256 computers for unified operation

l User-friendly design, one-person installation and removal, improving administrator efficiency

l Compatible with servers and industrial PCs from various brands in the data center, including IBM, DELL, HP, SUN, Lenovo, Advantech, and EVOC.

l Compatible with Microsoft, Linux, Unix, and other operating systems

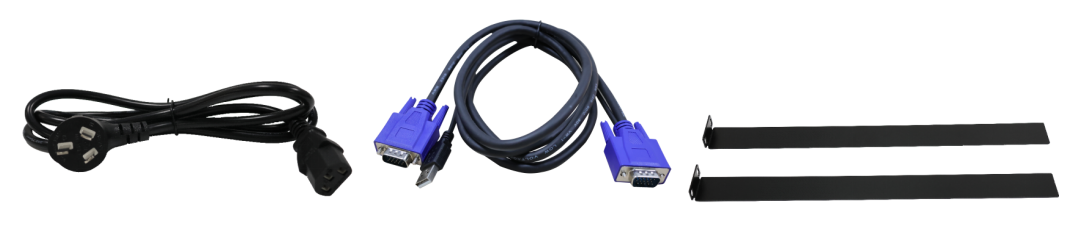

Product Accessories

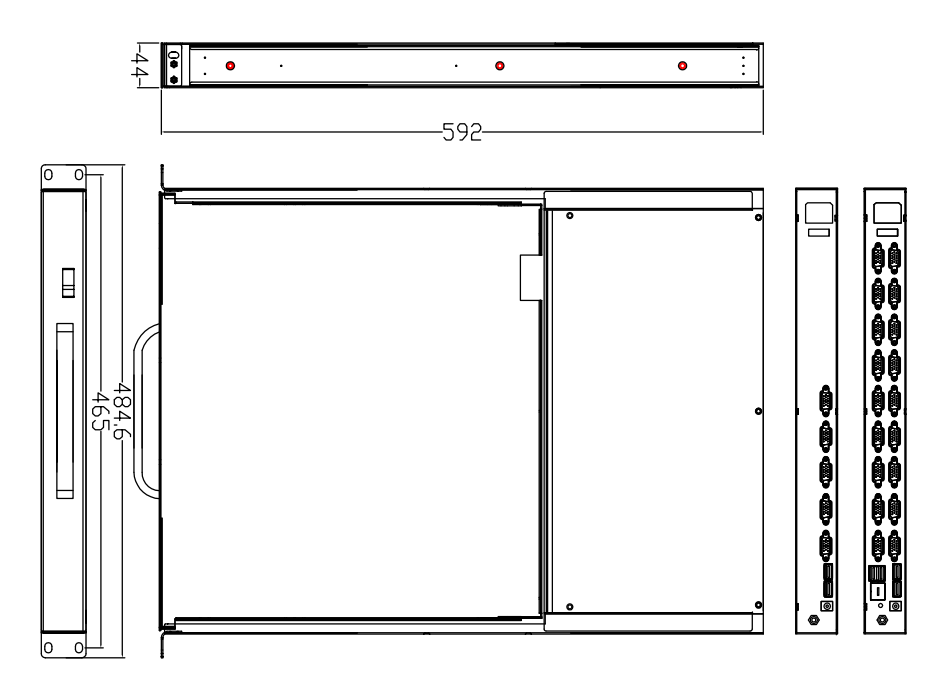

Product dimensions

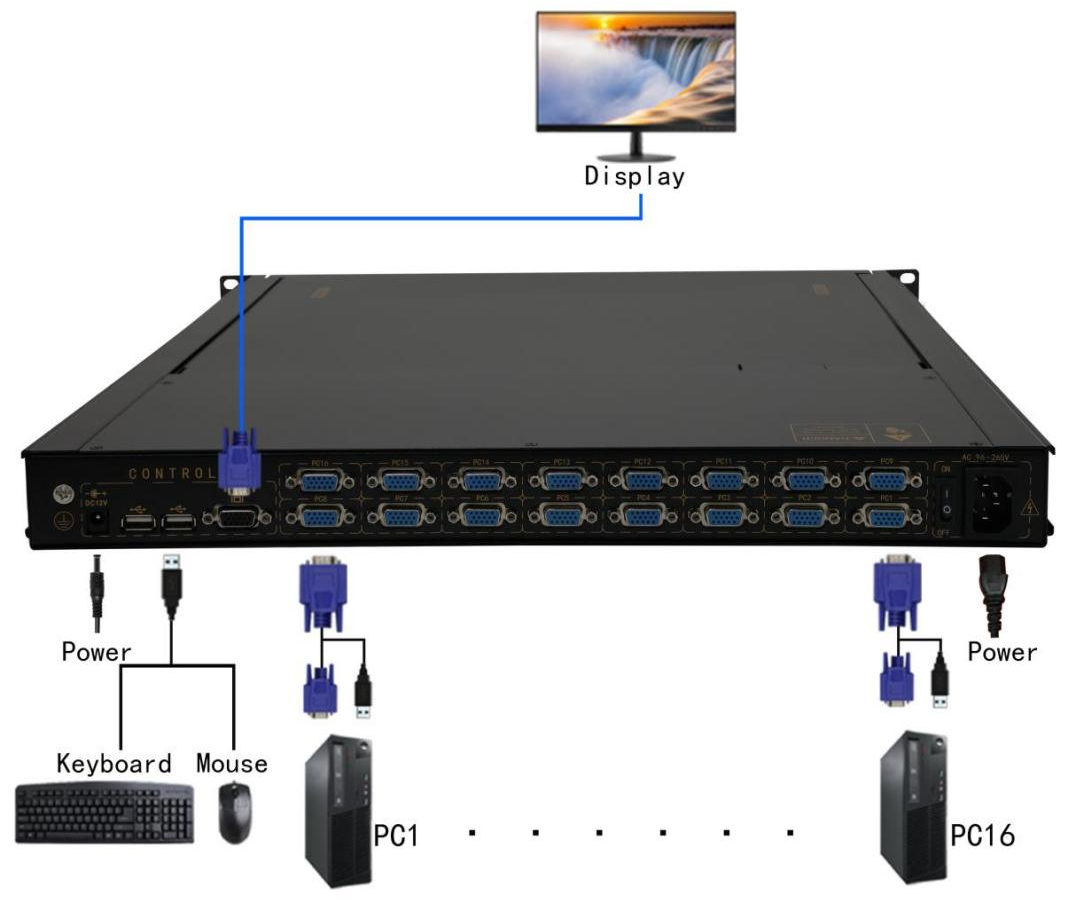

Product Connection Diagram

Specification Parameters
