Product Introduction:

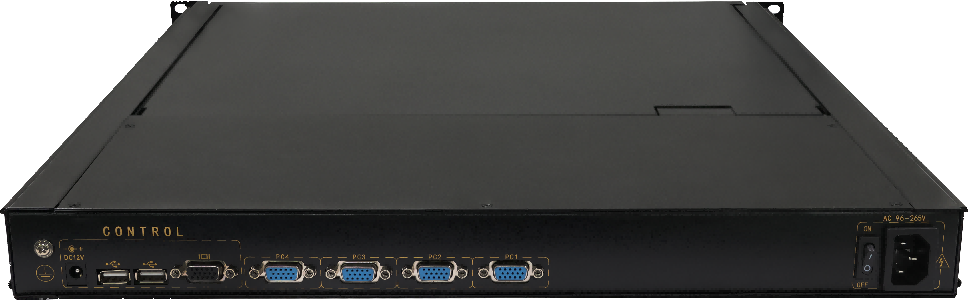

DY-SW1904AThis rack-mounted 19-inch LCD KVM switch features 4 ports with high-definition image quality, eliminating distortion, snow, and ghosting. It includes an additional local control port for external keyboard, mouse, and monitor. The device is designed for easy rack installation, offering professional-grade performance with a sleek, durable build.

Product Features

l Integrated 19" LED Screen/Keyboard/Mouse/Switcher

l ED LCD display adjustment function, rail with self-locking device

l The pull-out installation design allows length adjustment to fit various cabinet spaces.

l supports Microsoft IntelliMouse （Pro）， Optical, Mouse Man。

l Wheel Mouse，Scroll Point，Serial Mouse etc。

l When you switch computers, the keyboard's previous state is automatically saved.

l The Hot-key feature provides more convenient management operations.

l The Auto-scan feature enables KVM to automatically scan each computer.

l （Set up auto-scan through the OSD control function table for easier management.）

l Excellent video quality, with the best resolution reaching1280*1024 60HZ

l Dual-interface PS/2/USB keyboard and mouse switcher to connect and control a computer, can connect to a single device

l Complete DDC2B functionality detects screen models without switching computers

l User-friendly design, one-person installation and removal, improving administrator efficiency

l Supports servers and industrial PCs from various brands in the server room, such asIBM、DELL、HP、SUN、Lenovo、advantech 、EVOC etc

l Compatible with operating system series such

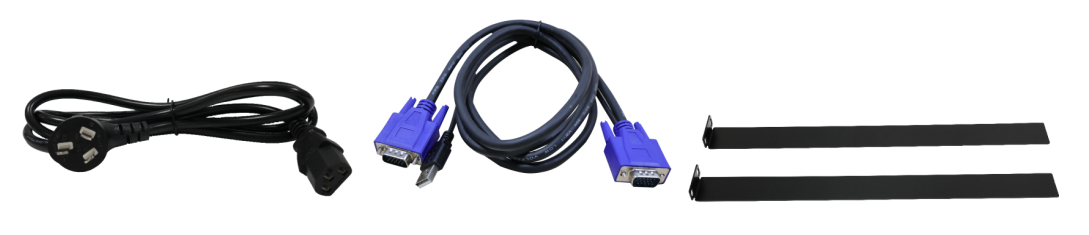

Product Accessories

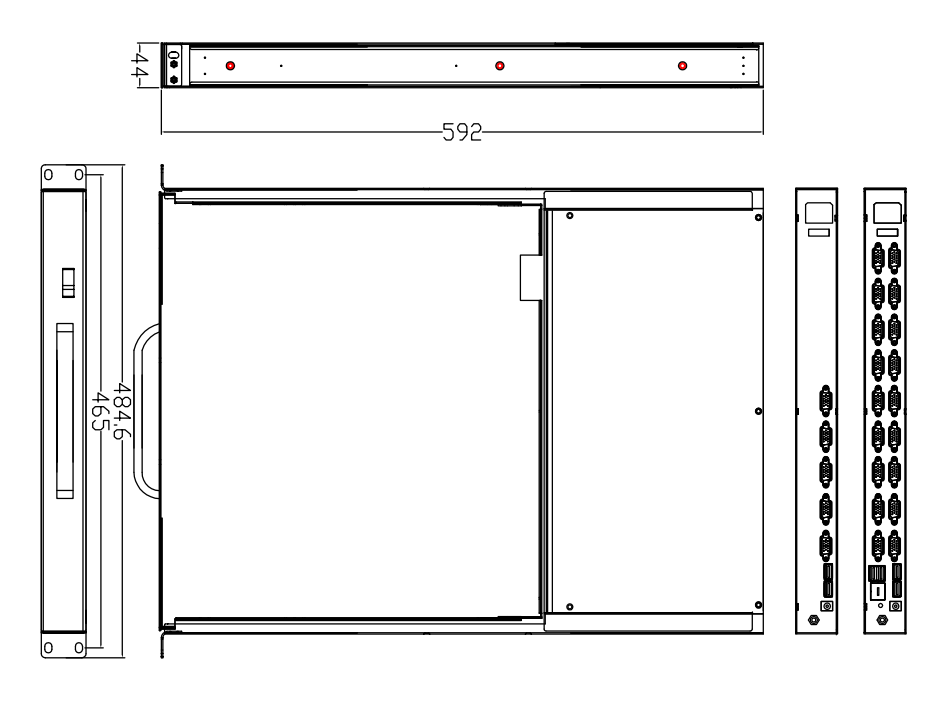

Product dimensions

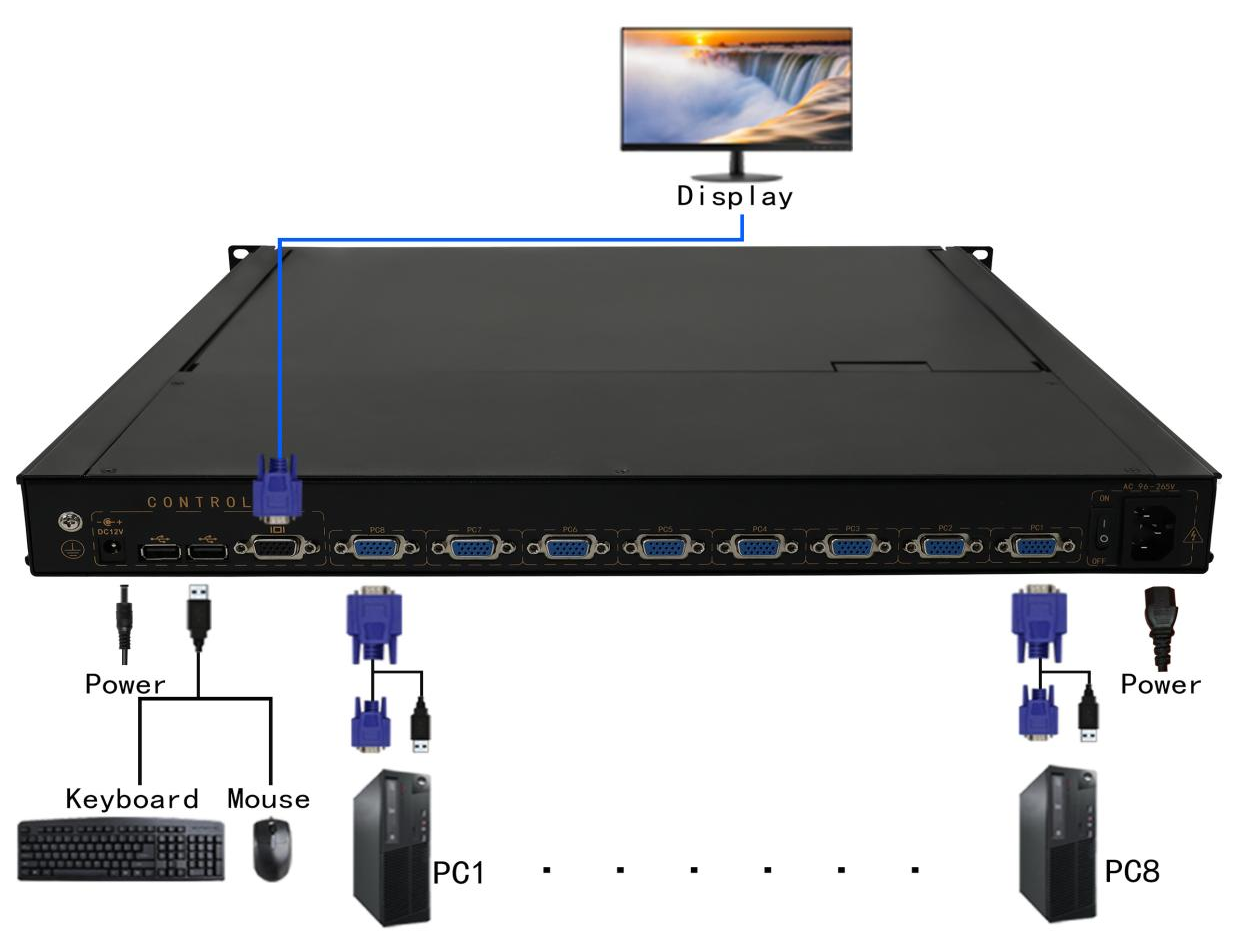

Product Connection Diagram

Specification Parameters
