Product Introduction

DY-SW1908AIt is a rack-mounted 19-inch screen 8-port LCD KVM switch. It features high-definition image quality without distortion, snow, or ghosting. The device has an extra local control port built into its body, allowing the connection of a separate keyboard, mouse, and monitor. It supports rack installation, which is easy to install and operate. The body is aesthetically pleasing and sturdy, making it a professional choice.。

Product Features

l Integrated 19" LED Screen/Keyboard/Mouse/Switcher

l Adjustment Function of LED LCD Screen with Self-locking Device on Guide Rail

l The pull-out installation design allows length adjustment to fit various cabinet spaces.

l supports Microsoft IntelliMouse （Pro）， Optical, Mouse Man。

l Wheel Mouse，Scroll Point，Serial Mouse etc。

l When you switch computers, the keyboard's previous state is automatically saved.

l The Hot-key feature provides more convenient management operations.。

l The Auto-scan feature enables KVM to automatically scan each computer.。

（Set up auto-scan through the OSD control function table for easier management。）

l Excellent video quality, with the best resolution reaching1280*1024 60HZ

l Dual interface PS/2/USB keyboard and mouse switcher for computer connection control

l Complete DDC2B functionality. Can detect screen models without switching computers.

l Humanized design allows one person to install and uninstall it, improving the efficiency of administrators.

l Compatible with servers and industrial PCs from various brands in the data center, including IBM, DELL, HP, SUN, Lenovo, Advantech, and EVOC.

l Compatible with Microsoft, Linux, Unix, and other operating systems

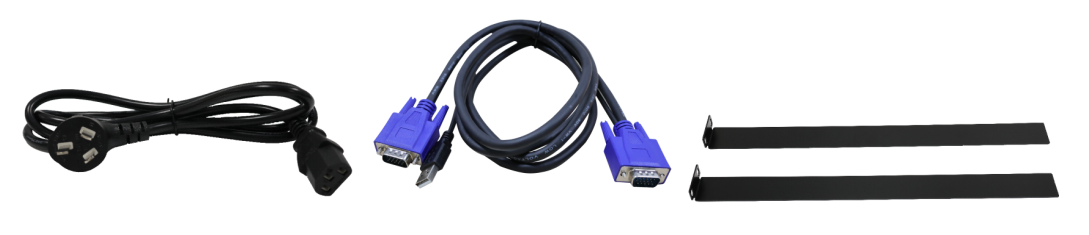

Product Accessories

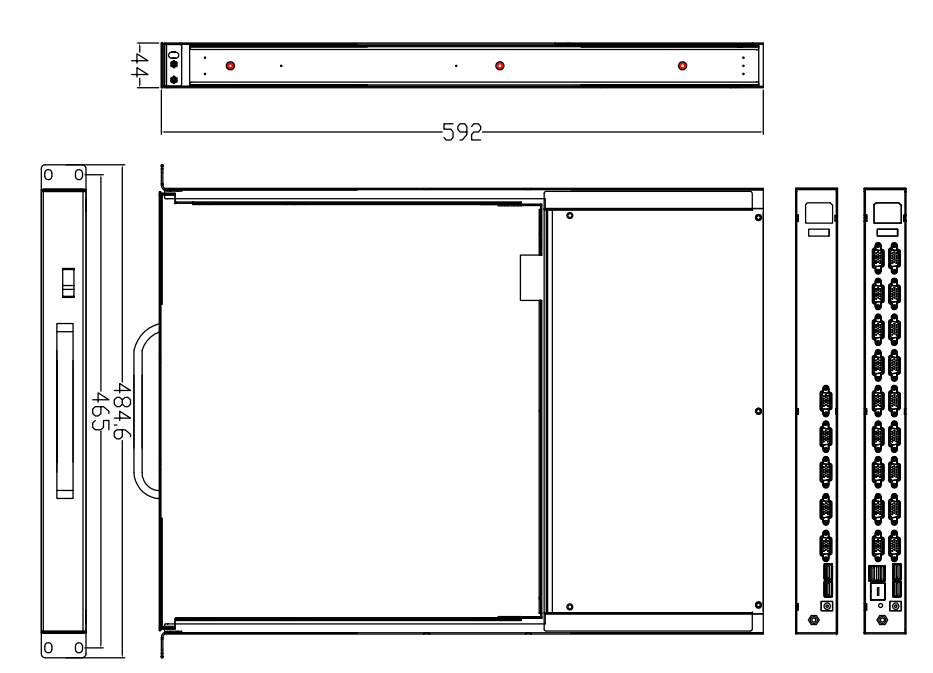

Product dimensions

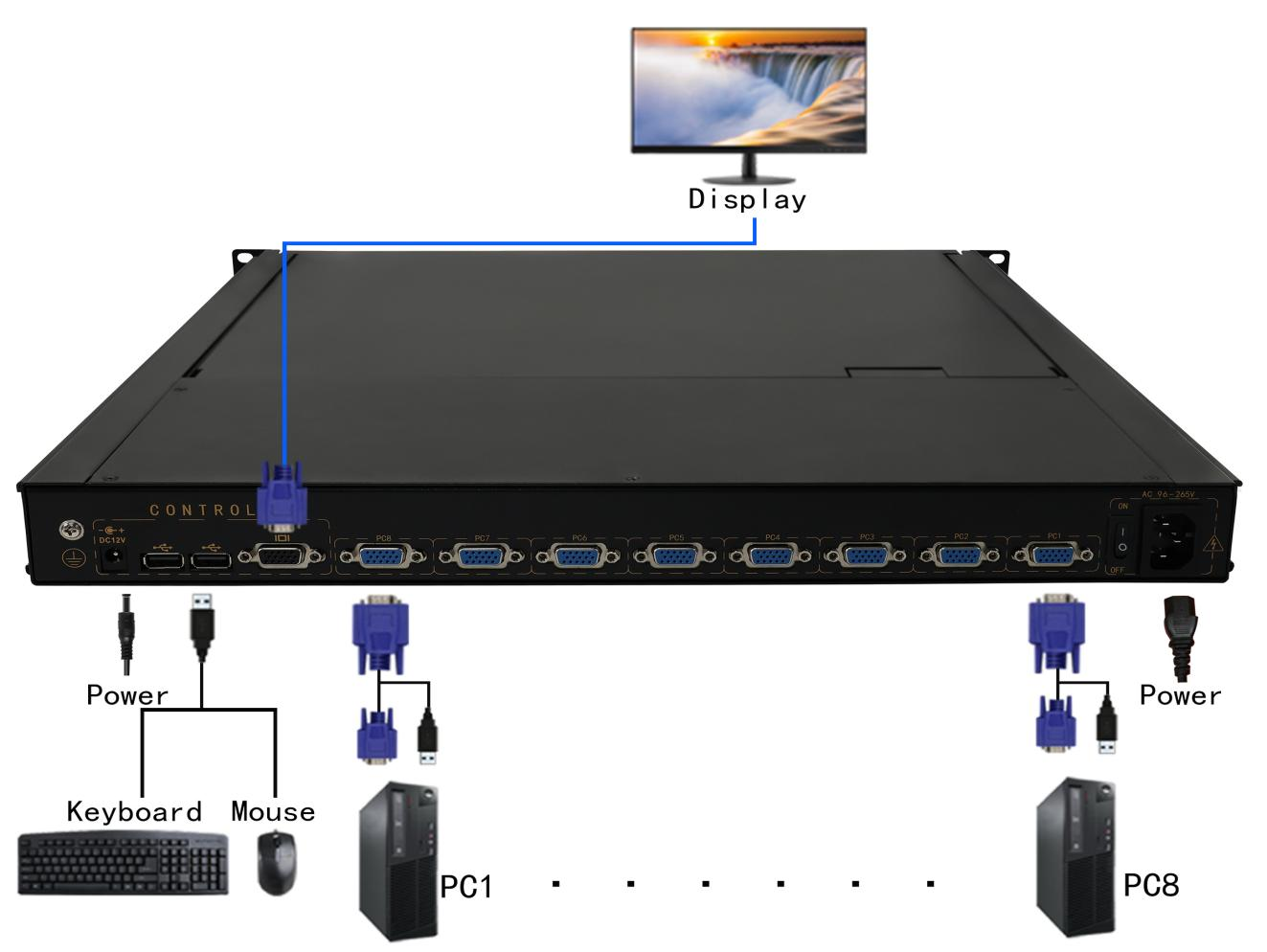

Product Connection Diagram

Specifications
