Product Introduction:

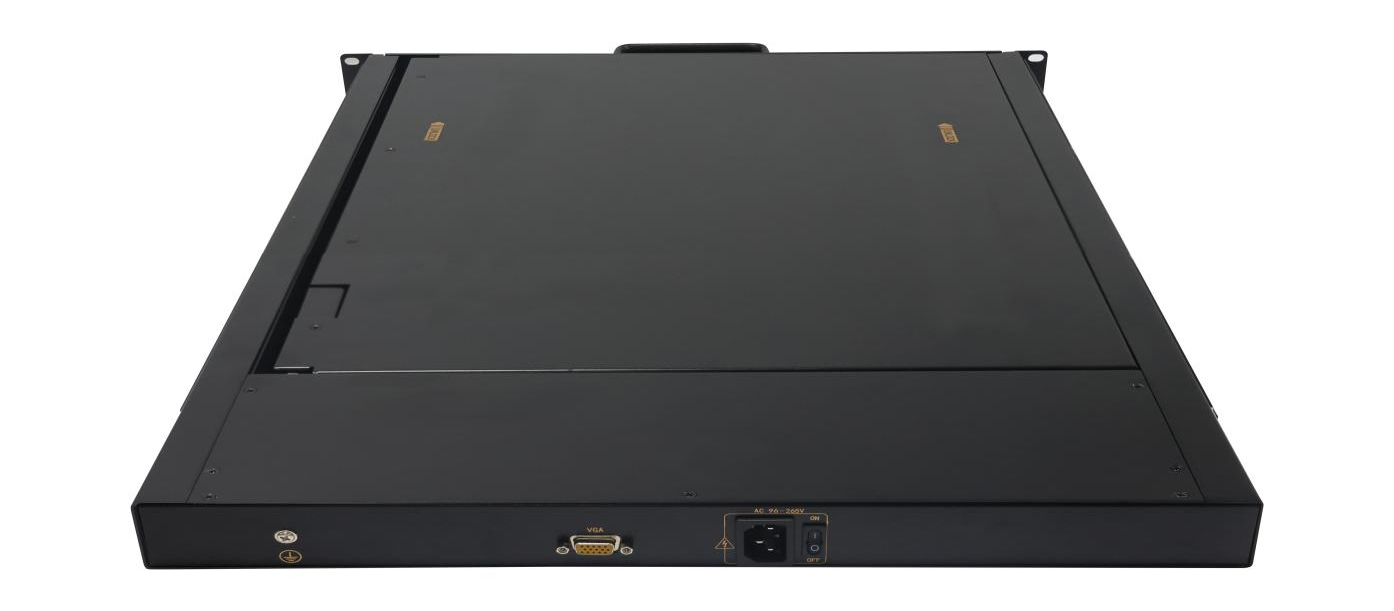

DY-SW2201AHThis rack-mounted 21.5-inch LCD KVM console delivers crystal-clear HD video with zero distortion, snowflakes, or ghosting. Featuring a built-in local control port, it supports external keyboard/mouse/monitor setups. The sleek, robust design ensures hassle-free installation and professional-grade performance.

Product Features

l Integrated 21.5-inch HD LED display with keyboard, mouse, and switcher in one

l LED LCD display adjustment function, with a self-locking device on the guide rail

l Drawer-type installation design, allowing length adjustment to fit various cabinet spaces

l Supports Microsoft IntelliMouse (Pro), Optical, Mouse Man, Wheel Mouse, Scroll Point, Serial Mouse, etc.

l Automatically records and saves the keyboard's current working status when switching computers

l Auto-scan function enables the KVM to scan computers one by one

l (Configure auto-scan via the OSD on-screen display menu for easy management)

l Excellent video performance, with a maximum resolution of 1920*1080 60HZ

l Dual-interface PS/2/USB keyboard-mouse switch for connecting and controlling computers

l Complete DDC2B function allows non-switched computers to detect the monitor model

l User-friendly design: installable and detachable by a single person, improving administrator efficiency

l  Compatible with various server and industrial computer brands in computer rooms, such as IBM, DELL, HP, SUN, Lenovo, Advantech, EVOC, etc.

l Supports operating systems like Microsoft, Linux, Unix, etc.

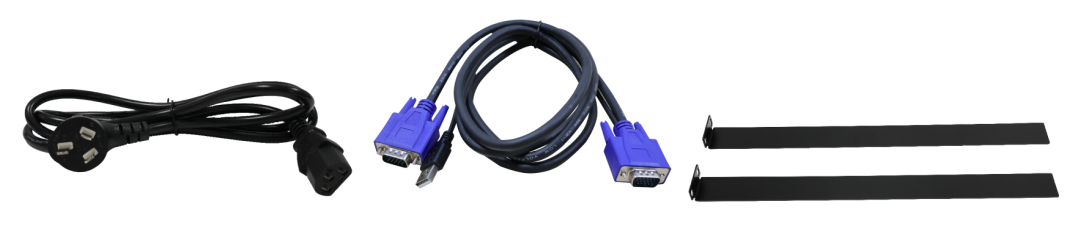

Product Accessories

Specification Parameters
