Product Introduction:

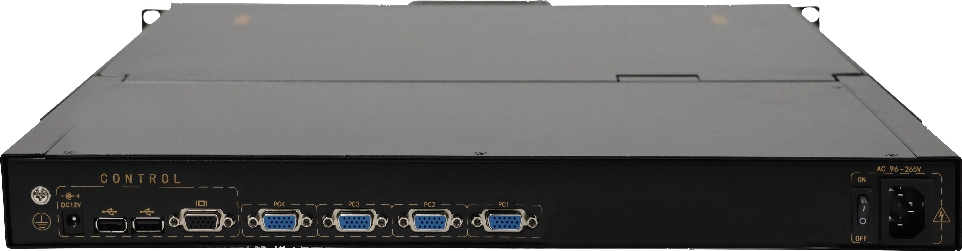

DY-SW1904AH It is a rack-mounted 18.5-inch screen 4-port LCD KVM switch. It features high-definition image quality without distortion, snow noise, or ghosting. The device has an additional built-in local control port, allowing the connection of an external keyboard, mouse, and monitor. It supports rack installation, which is easy to install and operate. The body is aesthetically pleasing and durable, making it a professional choice.

Product Features

l Integrated 18.5" LED Screen / Keyboard / Mouse / Switcher All-in-One Machine

l LED LCD display adjustment function, rail with self-locking device

l The pull-out installation design allows length adjustment to fit various cabinet spaces.

l Supports  Microsoft IntelliMouse （Pro）， Optical, Mouse Man。

l Wheel Mouse，Scroll Point，Serial Mouse etc。

l When switching computers, the original keyboard working status is automatically recorded and stored.

l The Hot-key function provides more convenient management operations。

l The Auto-scan feature enables KVM to automatically scan each computer.

l （Set auto-scan through the OSD control menu for convenient management.）

l Excellent video quality, with the best resolution reaching1920*1080 60HZ

l Dual interface PS/2/USB keyboard and mouse switcher for computer connection control

l Complete DDC2B function, can detect screen model without switching computers

l Multiple devices can be cascaded. With 16 ports, it can connect 256 computers for unified operation.

l Human-centered design, allowing one person to install and uninstall, thereby improving the efficiency of administrators

l Supports servers and industrial control computers of various brands in applicable data centers: such asIBM、DELL、HP、SUN、Lenovo、advantech 、EVOC etc

l Compatible with operating system series such

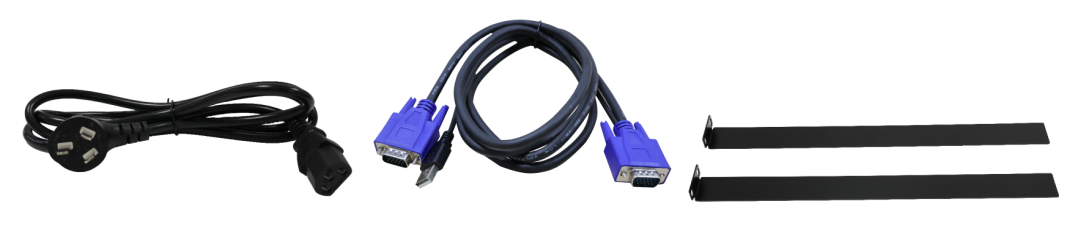

Product Accessories

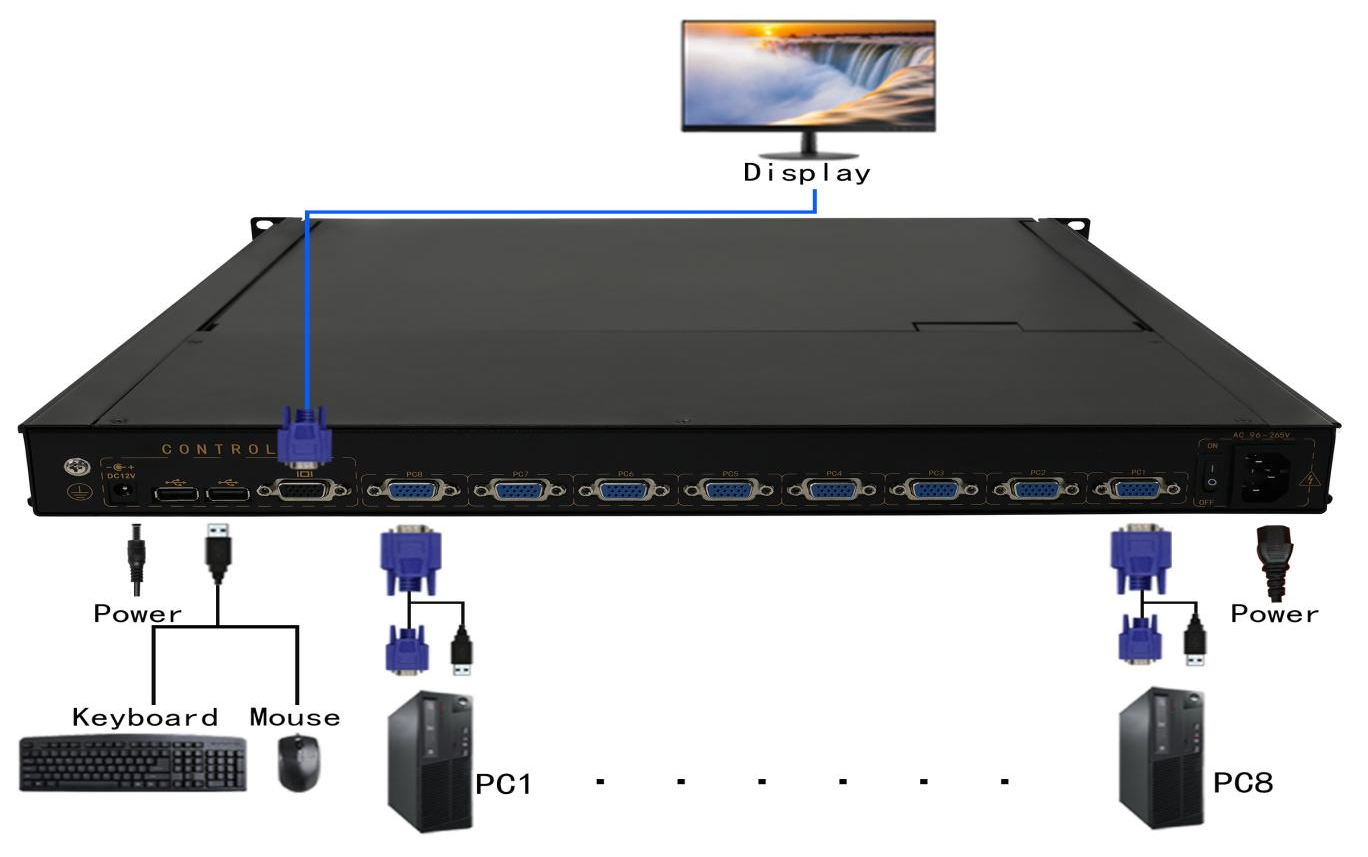

Product Connection Diagram

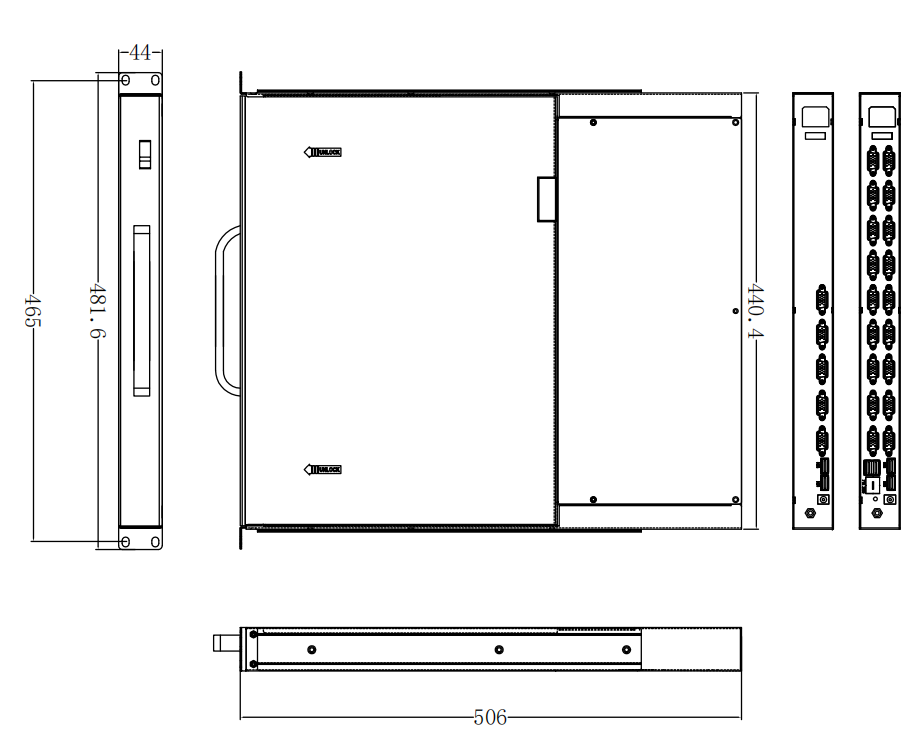

Product dimensions

Specification Parameters
