Overview:

The KVM over IP HD Video Fiber Optic Extender is a signal extension device for DVI, HDMI, VGA, or KVM interfaces, primarily operating via IP over fiber optic connections. Featuring professional over IP KVM functionality, it enables remote access to computer systems through USB control terminals within internal networks. The device supports 1Gbps SFP fiber optic module expansion, allowing seamless connectivity via fiber optic links.

1. A fiber optic extension cord that supports independent high-definition video signals (DP, HDMI, DVI, or VGA), USB keyboard/mouse control signals, USB2.0 devices (including USB flash drives, USB keys, printers, and external hard drives), RS232 interface signals, and LC fiber optic interfaces, with a sleek design featuring an iron or aluminum alloy casing (two casing options available).

2. The system employs Gigabit digital encoding technology to connect the device's local transmitter with computer interfaces (DP, HDMI, DVI, or VGA) and USB peripherals (keyboard/mouse). Using fiber optic jumpers, it extends the transmission range to include multimode (300-500 meters) and single-mode (over 20 kilometers) receivers, enabling users to operate computers directly at the receiving end.

3. This product consists of a local sender and a remote receiver, and must be used in pairs.

4. Supports video resolutions up to 4K x 2K (maximum 3840 x 2160) and VGA 1080P, delivering exceptional image quality. With ultra-low latency transmission, it ensures lossless video quality. Ideal for education, banking, securities, and confidential office environments.

Hardware structure

l Aluminum alloy body with topcoat painting (optional with a more cost-effective iron shell);

l DC power interface;

l Side heat dissipation and anti-slip design process;

l The edge of the plane is smooth and the hand feel is fine.

Features

l With the coding transmission technology, the image is clear and smooth with little delay.

l Supports audio microphone signal transmission；

l Supports USB keyboard and mouse, as well as USB 2.0 devices (including USB flash drives, USB keys, printers, and external hard drives).

l Single-mode single-fiber signal interface transmission；

l hot-swappable design；

l Supports display of high-definition video signals with resolutions up to 3840×2160 at 30Hz.

l Featuring four powerful USB ports, it supports high-capacity USB devices.

Assembly List

Thank you for using our product. Before opening the package, please check the product packing list.

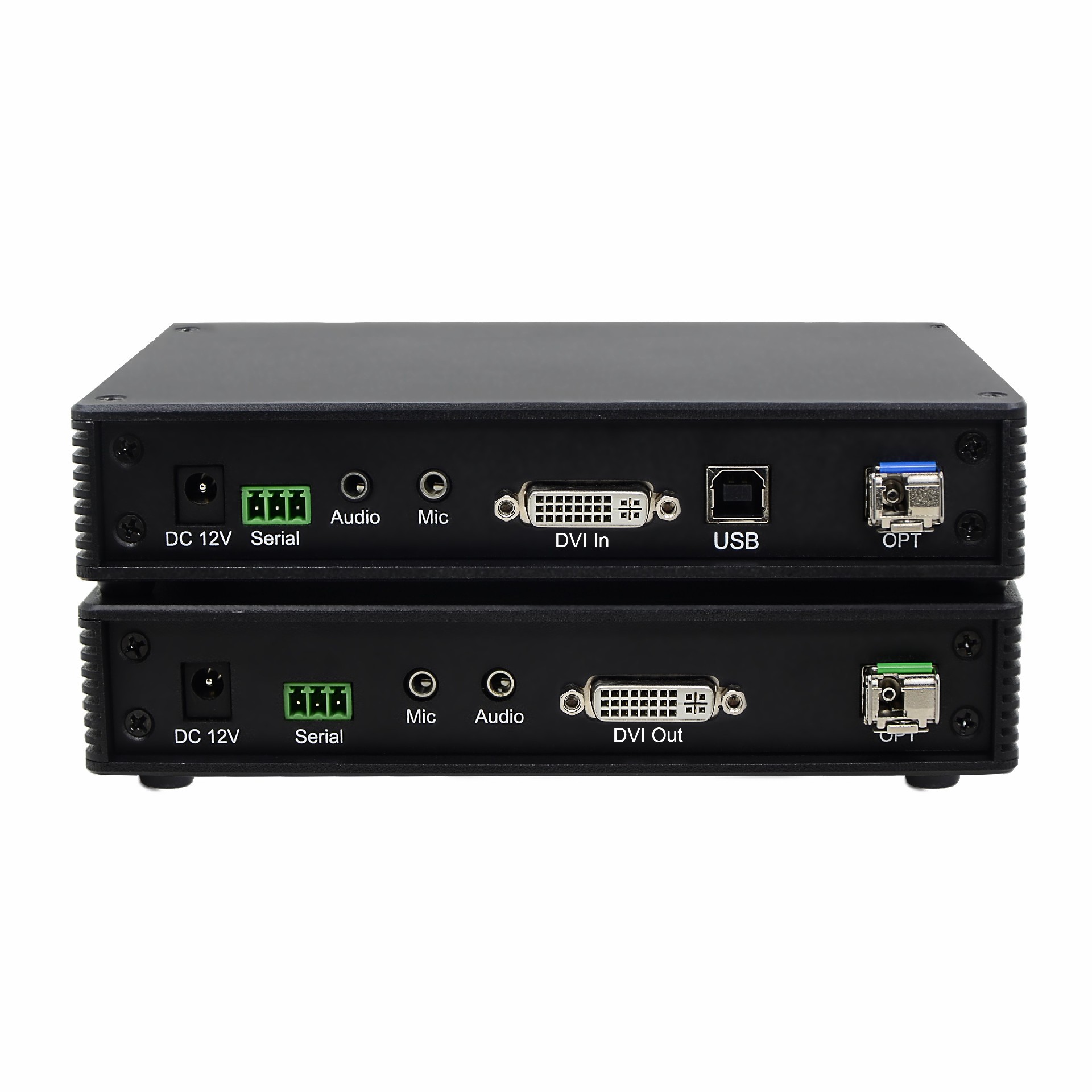

Product packing details:

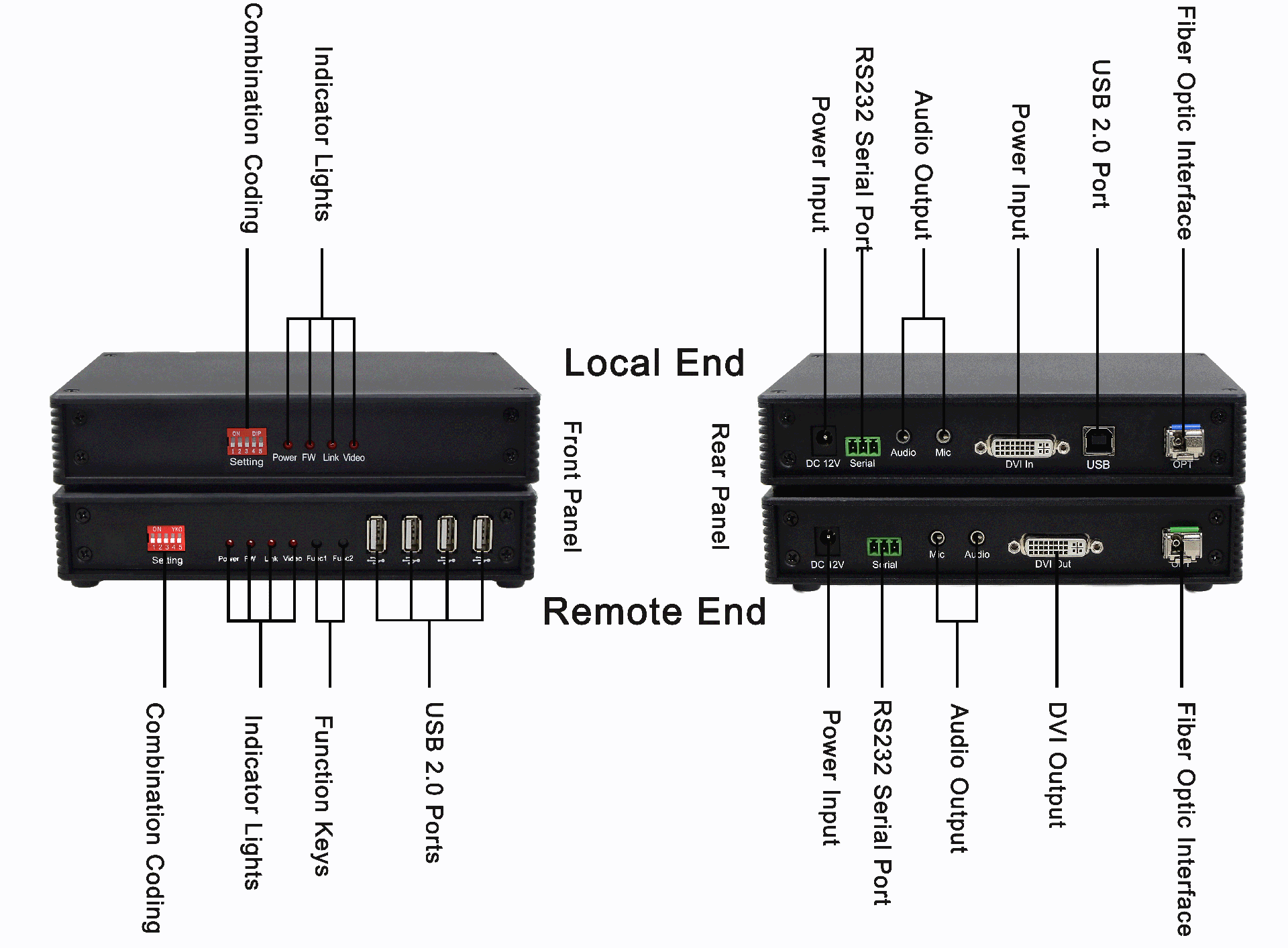

Interface diagram

Indicator lights and function keys

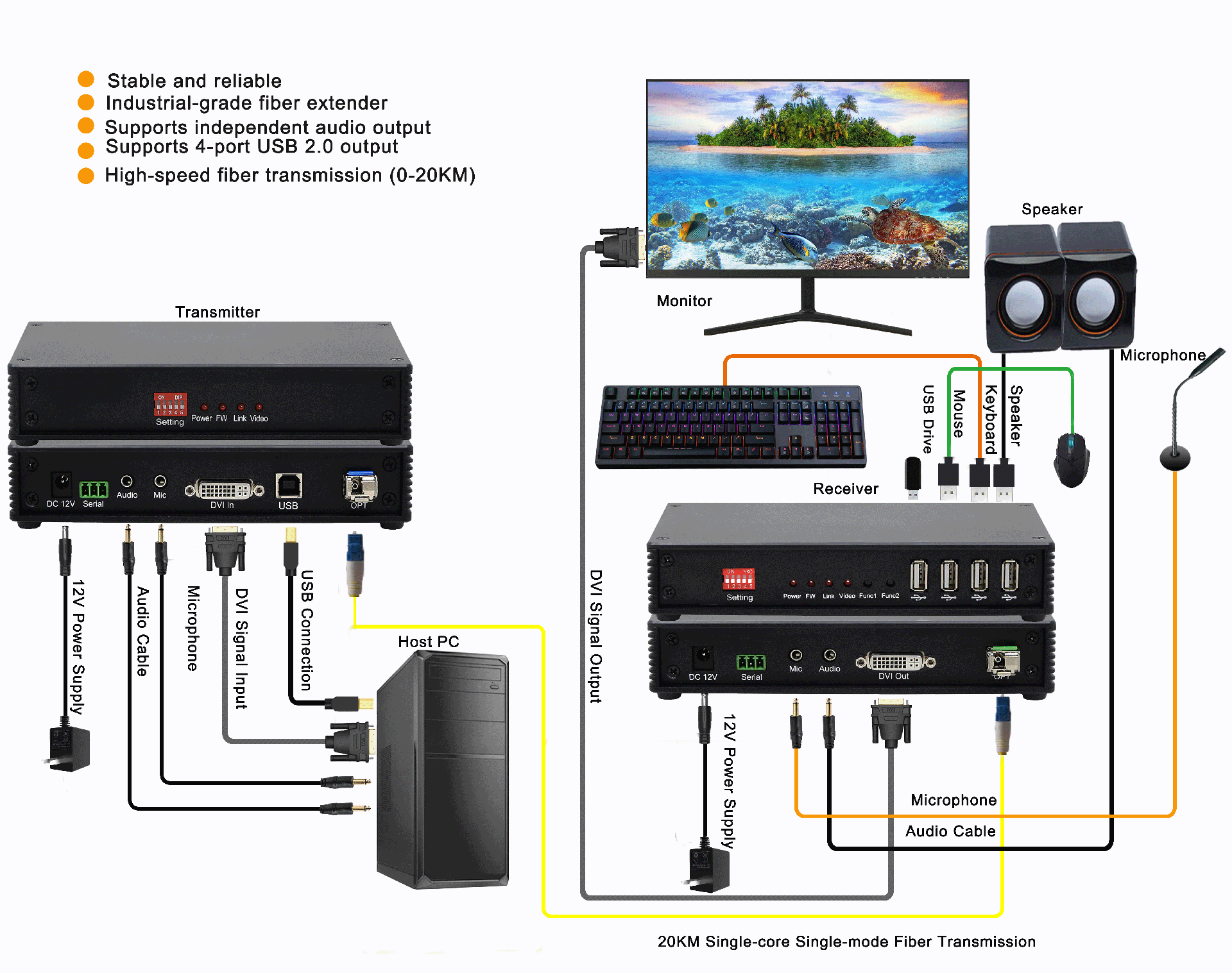

attended operation

1. The transmitter connects to the controlled host using standard DVI video cables, serial cables, USB cables, and audio microphone wiring.

2. The receiving end connects to a DVI monitor, audio microphone, serial port, USB keyboard and mouse, and other USB devices.；

3. The transmitter and receiver are connected by a direct fiber optic line.

4. Connect the power supply to both the transmitter and receiver.；

5. The connection status is displayed by the indicator light of the transmitter and receiver.

6. Support hot-swapping, allowing you to add or remove controlled devices at any time without powering down the KVM.

7. Cross-platform support for mainstream operating systems including Windows, Linux, and Sun.

Product Parameter
