Overview:

The 4K KVM over IP HD video fiber optic extender is a KVM video signal extension device primarily based on IP technology and connected via fiber optics. Featuring professional over IP KVM functionality, it enables remote access to the computer system through the internal network from the USB control terminal.

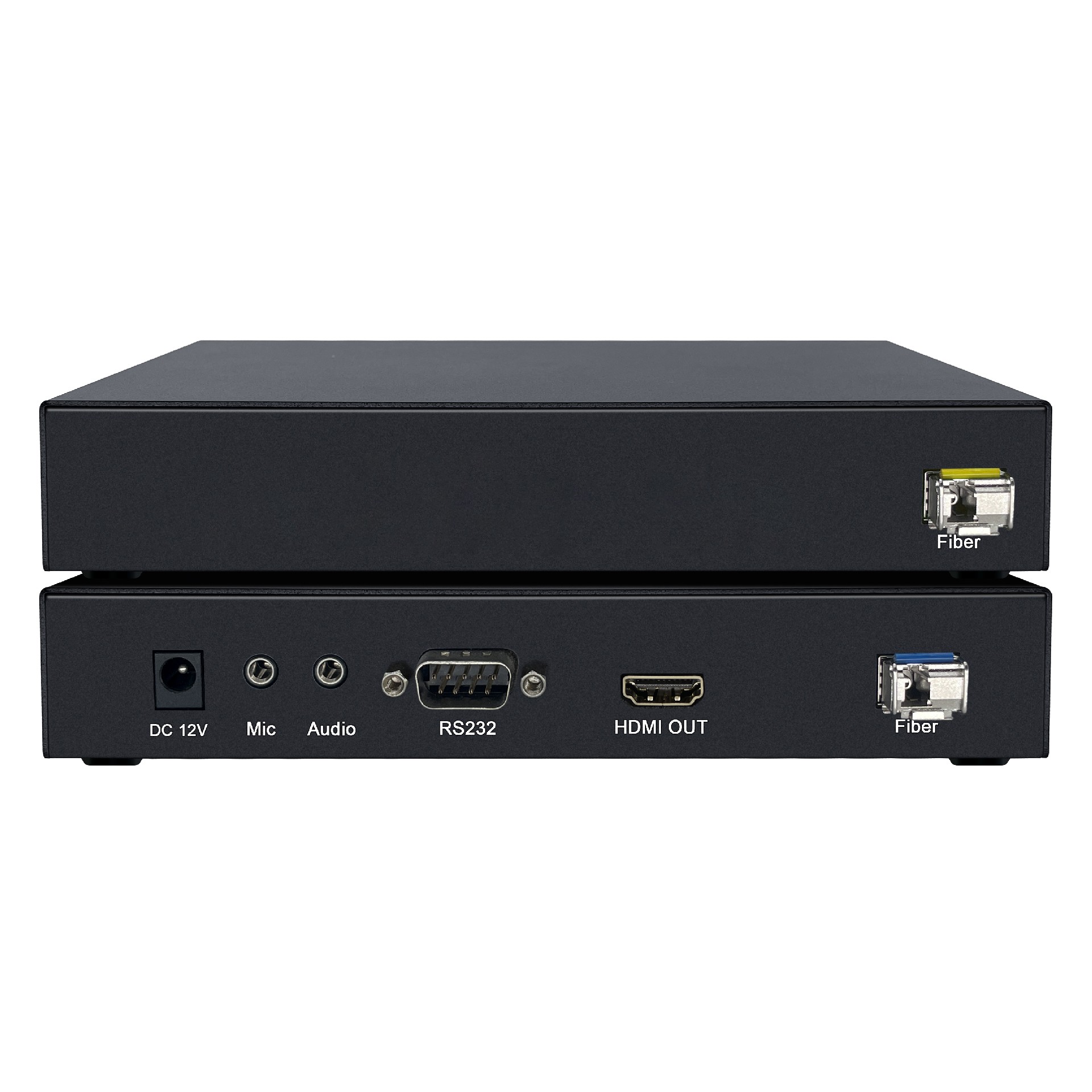

4KHDMIKVM HD Video Fiber Optic Extender

1. HDMI video signal, USB keyboard and mouse control signal, USB2.0HUB function (USB devices such as USB drives, U KEY, printers, mobile hard drives, touch screens, etc.), RS232 interface signal, bidirectional audio signal, LC fiber optic interface, and iron shell body in one fiber optic ultra HD video KVM extension.

2. The system employs gigabit digital encoding technology to transmit HDMI video signals and USB control signals from the device's local transmitter to the computer host via fiber optic jumpers (single-mode fiber supports 20 km transmission, while multi-mode fiber supports 300-500 m). The signals are then relayed to the receiver, which allows users to operate the computer while maintaining HDMI video output at the local end.

3. Supports 4K x 2K resolution (up to 3840 x 2160) for exceptional display performance. It delivers high-quality video with ultra-low latency, making it ideal for education, banking, healthcare, and confidential office environments.

Package Includes

l The gigabit digital encoding technology provides clear, smooth images with minimal delay

l Independent bidirectional audio transmission;

l HDMI digital audio and HDMI audio separation

l USB 2.0 hub capability (supporting USB devices including flash drives, printers, wireless peripherals, and touchscreens);

l It employs SFP single-mode single-fiber LC optical fiber signal interface for transmission.

l Hot-swappable design, plug and play;

l Supports 3840 x 2160@30Hz and backward compatibility with various standard resolutions;

l Featuring four powerful USB ports, it supports high-capacity USB devices.

l You can connect through a switch or directly

l Compatible with different video signal interfaces.

Product options

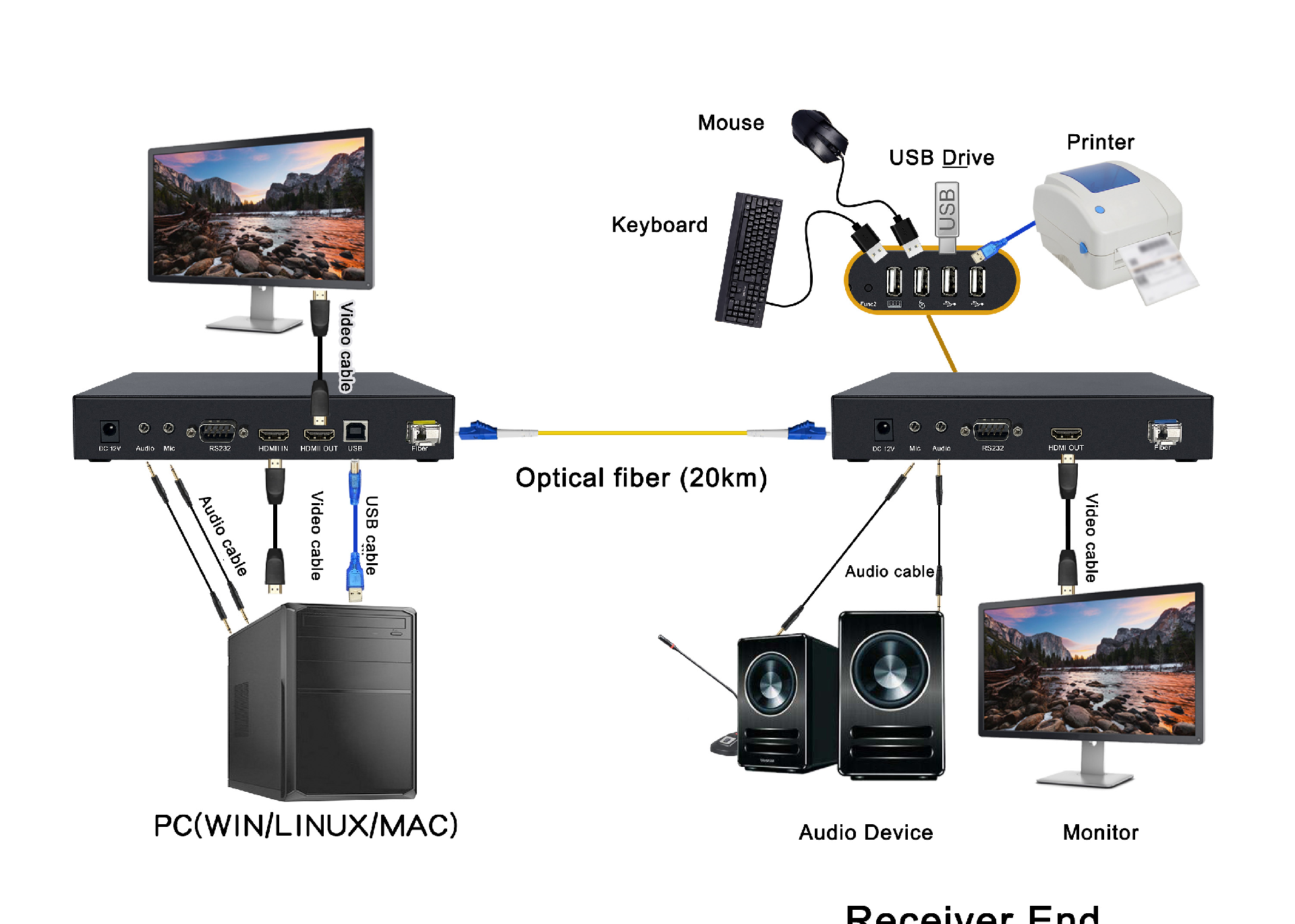

attended operation

1. First, verify that the dial codes on both the sender and receiver match.

2. The transmitter connects to the controlled host via standard video cables, USB cables, and audio cables.

3. The receiver connects to monitors, audio devices, USB keyboards, mice, and other USB peripherals.

4. The sender and receiver are connected by optical fiber.

5. Turn on the power supply of the transmitter and receiver;

6. The sender and receiver display the connection status through indicator lights;

7. Supports hot-swapping, allowing you to add or remove controlled devices at any time without shutting down the KVM power.

8. Cross-platform support for mainstream operating systems including Windows, Linux, and Sun.

Note: Change the dial code and power off the device to restart it.

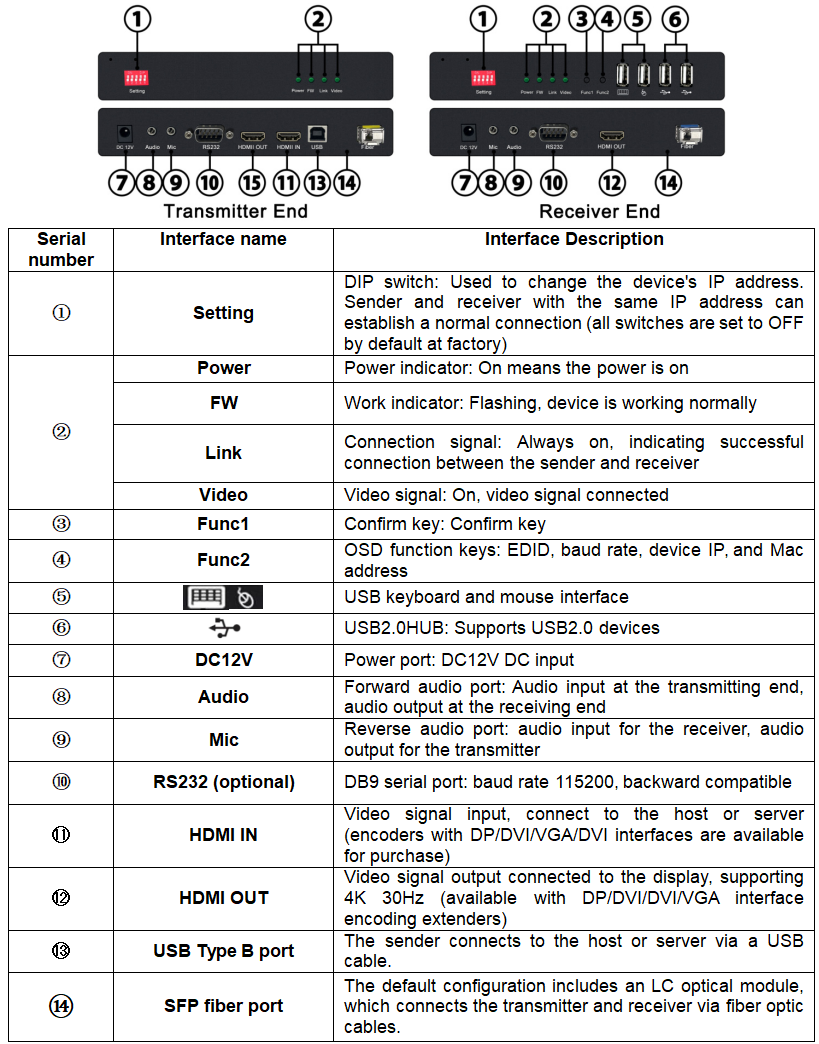

Interface Schematic Diagram
