Overview:

The 4K KVM over IP HD video fiber optic extender is a KVM video signal extender primarily connected via IP over fiber optics. Featuring professional over IP KVM functionality, it enables remote access to the sending computer system through internal network USB control.

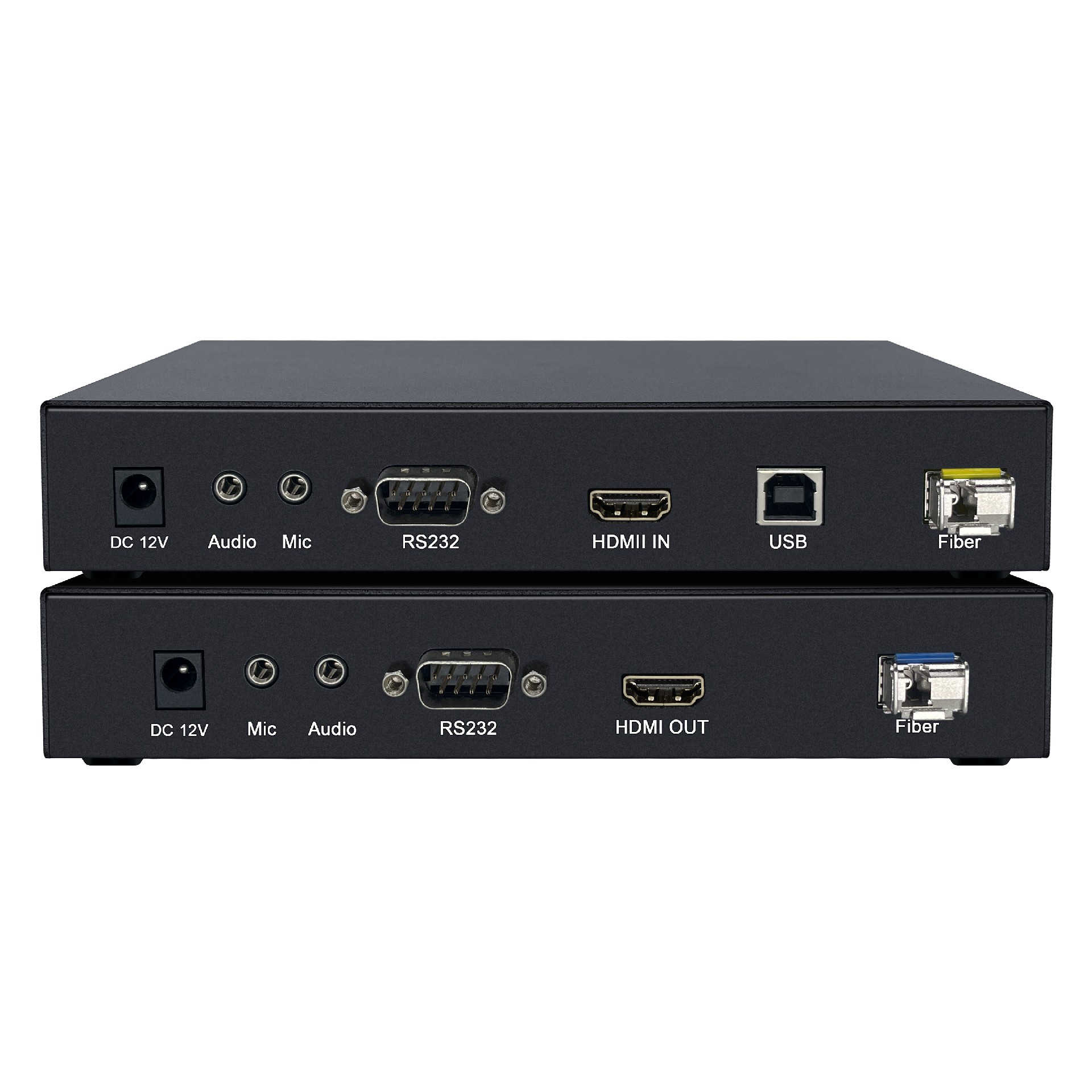

4KHDMIKVM HD Video Extender

1. Network ultra HD video KVM extender with integrated HDMI video signal, USB keyboard and mouse control signal, USB2.0HUB function (USB devices such as USB drives, U KEY, printers, mobile hard drives, touch screens, etc.), RS232 interface signal, bidirectional audio signal, SFP fiber optic port, and iron casing.

2. Using gigabit digital encoding technology, the local transmitting end of the device connects the computer's HDMI video signal and USB control signals to the receiving end of the extender via network cable, allowing for an extension of up to 150 meters. Users can operate the computer at the receiving end.

3. Supports 4K x 2K resolution (up to 3840 x 2160) for exceptional visual display. It delivers high-quality video with ultra-low latency. Widely applicable in education, banking, healthcare, and confidential office environments.

4. The system employs a 1625 encoding scheme with multi-receiver capability, enabling a single transmitter to establish paired connections with multiple receivers via a switch for synchronized video feed. It also features USB2.0 hosting functionality, allowing users to control USB2.0 signals through front buttons on any receiver.

Package Includes

Features

l The gigabit digital coding technology is adopted to make the image clear and smooth with small delay;

l Independent bidirectional audio transmission;

l HDMI digital audio and HDMI audio separation

l USB 2.0 HUB feature (USB devices such as USB flash drives, printers, wireless keyboards and mice, touchscreens, etc.);

l The RJ45 port enables signal transmission up to 150 meters.

l Hot-swappable design, plug and play;

l Supports 3840 x 2160@30Hz and backward compatibility with various standard resolutions.

l Featuring four powerful USB ports, it supports high-capacity USB devices.

l You can connect through a switch or directly

l Compatible with different video signal interfaces.

attended operation

1. The transmitter connects to the controlled host using standard HDMI video cables, serial cables, USB cables, and audio microphone wiring.

2. The receiver connects to HDMI monitors, audio devices, USB keyboards/mice, and other USB peripherals..

3. The sender and receiver are connected to the switch via a network cable (using a Gigabit switch).

4. The sender connects to the controlled host, and the receiver connects to the monitor and USB devices.

5. The four indicator lights are displayed normally

6. The receiver can take over USB functionality to this device via the fan1 interface.

7. Due to varying display sizes and resolutions, all receiving terminals must share the EDID of a single display. If a terminal fails to display, the update EDID function in Fanc2 can switch the EDID to the terminal where the button is located to ensure proper display.

8. To prevent EDID incompatibility between displays, it is recommended to use the same model for multiple receivers.

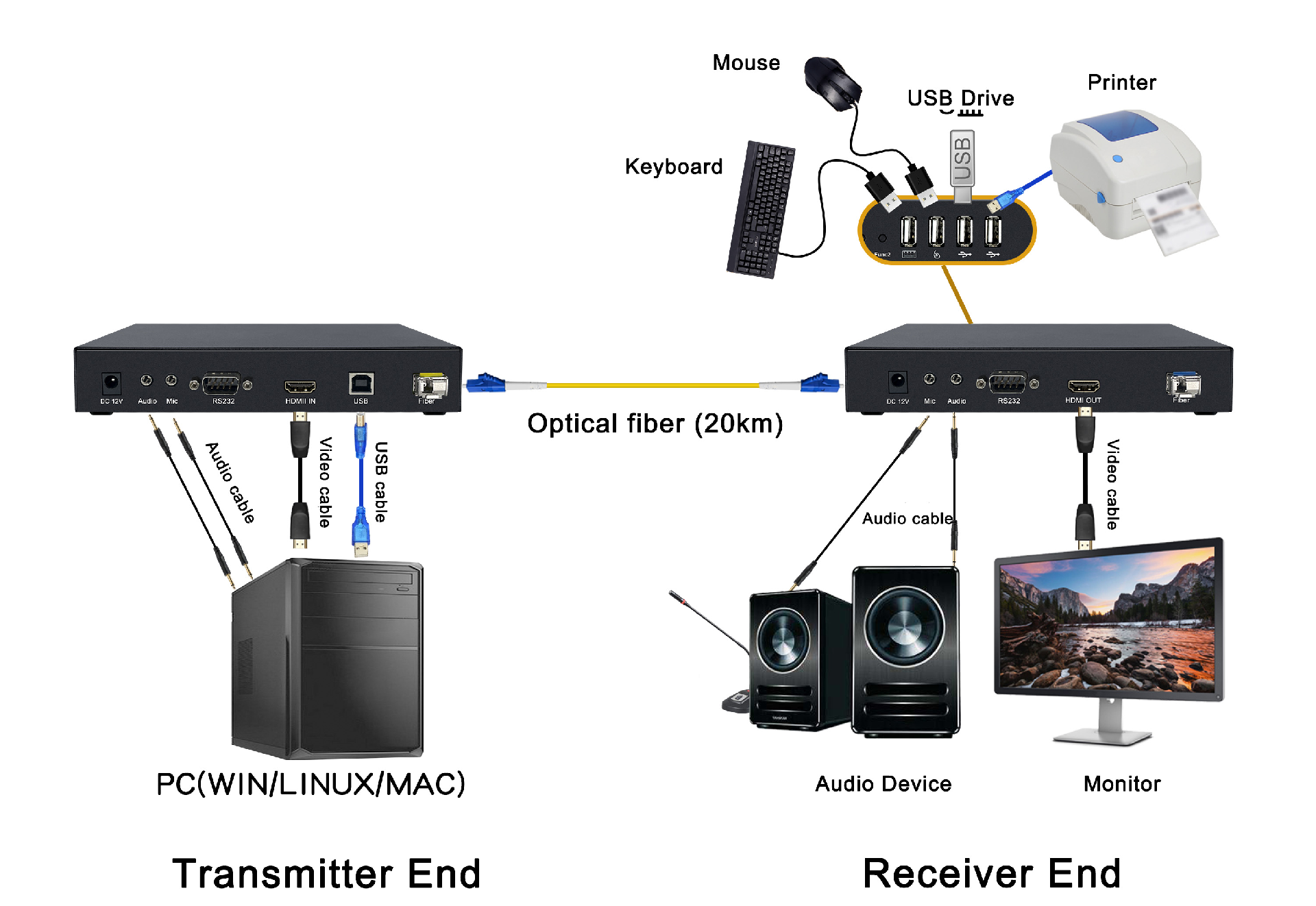

Connection Diagram

a. One-on-one

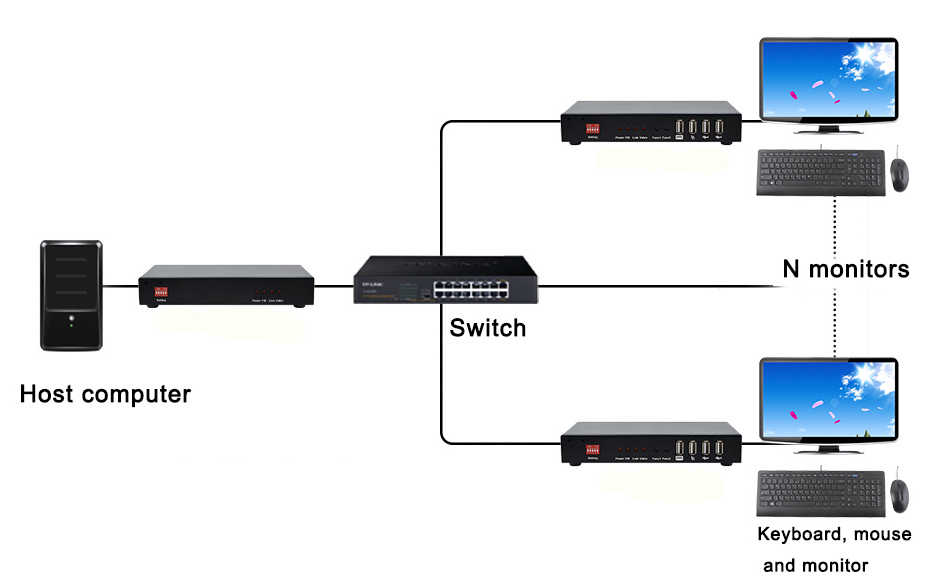

a. one-to-many
