分类：KVM Fiber Extender
描述：
OverviewIt is possible to transmit up to 20KMmeters using a Fiber cable; With an easy cable installation supporting various signals, the KVM Extender is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial w0755 86120002

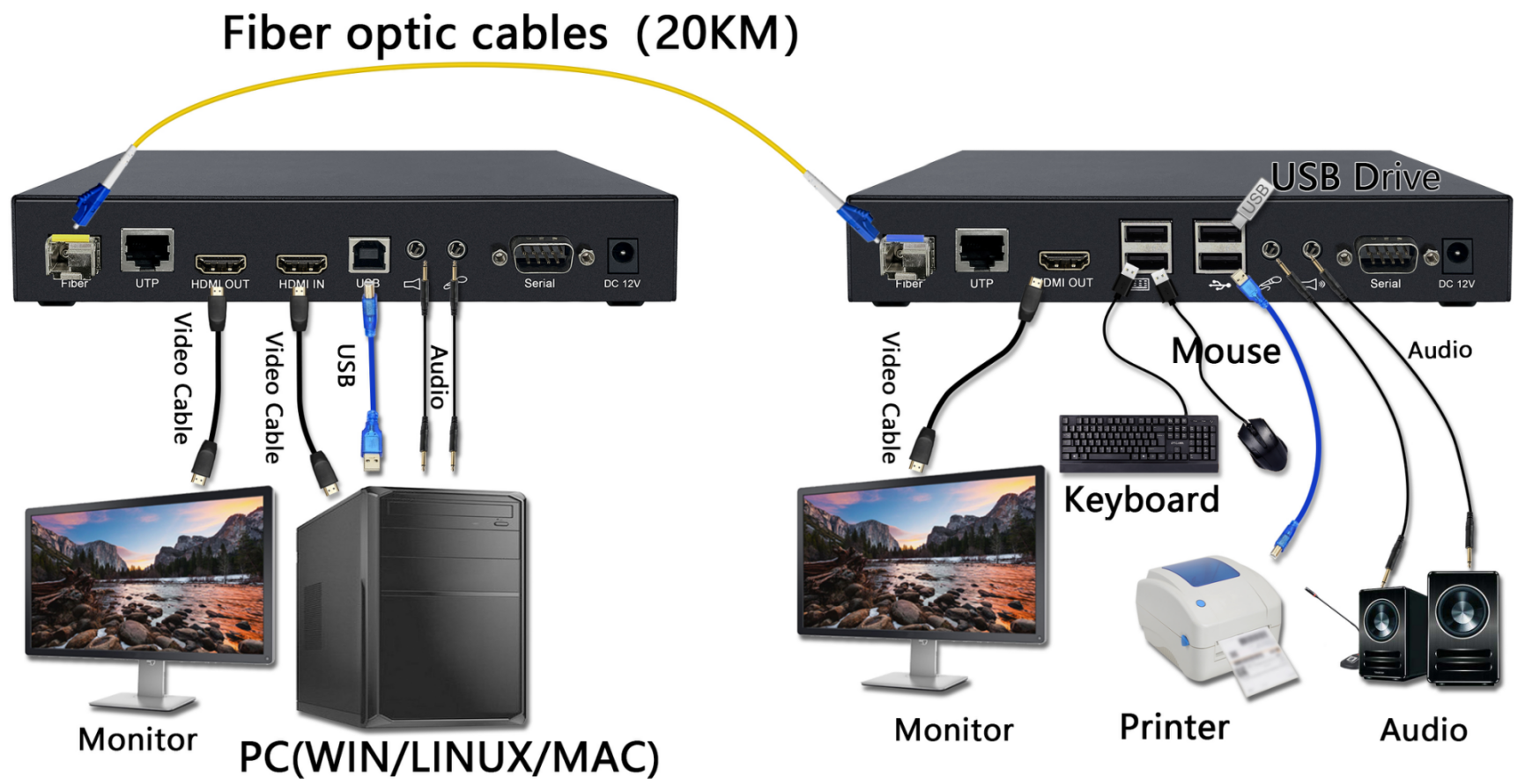

It is possible to transmit up to 20KM meters using a Fiber cable; With an easy cable installation supporting various signals, the KVM Extender is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations
n Uses Twisted pair cable to connect the Transmitter and Receiver units
n Superior HDMI video quality: up to 3840*2160@60Hz
n Transparent USB2.0 – supports a wide range of USB devices include keyboard, mouse, mass storage devices and printers. It provides 4 USB ports on the receiver and 1 USB on the transmitter
n Support stereo audio
n RS232 serial port – support connection to a serial terminal
n Easy to install – no software required - connecting cables to the devices is all it takes
n Plug and play
Thank you for using our products. To open the package, please clear the product packing list first
Product packing detail list:
KVM fiber extender transmitter | 1 |
KVM fiber extender receiver | 1 |
HDMI Cable | 1 |
Audio Cable | 1 |
USB-AB Cable | 1 |
The 12V / 2A power supply adapter | 2 |

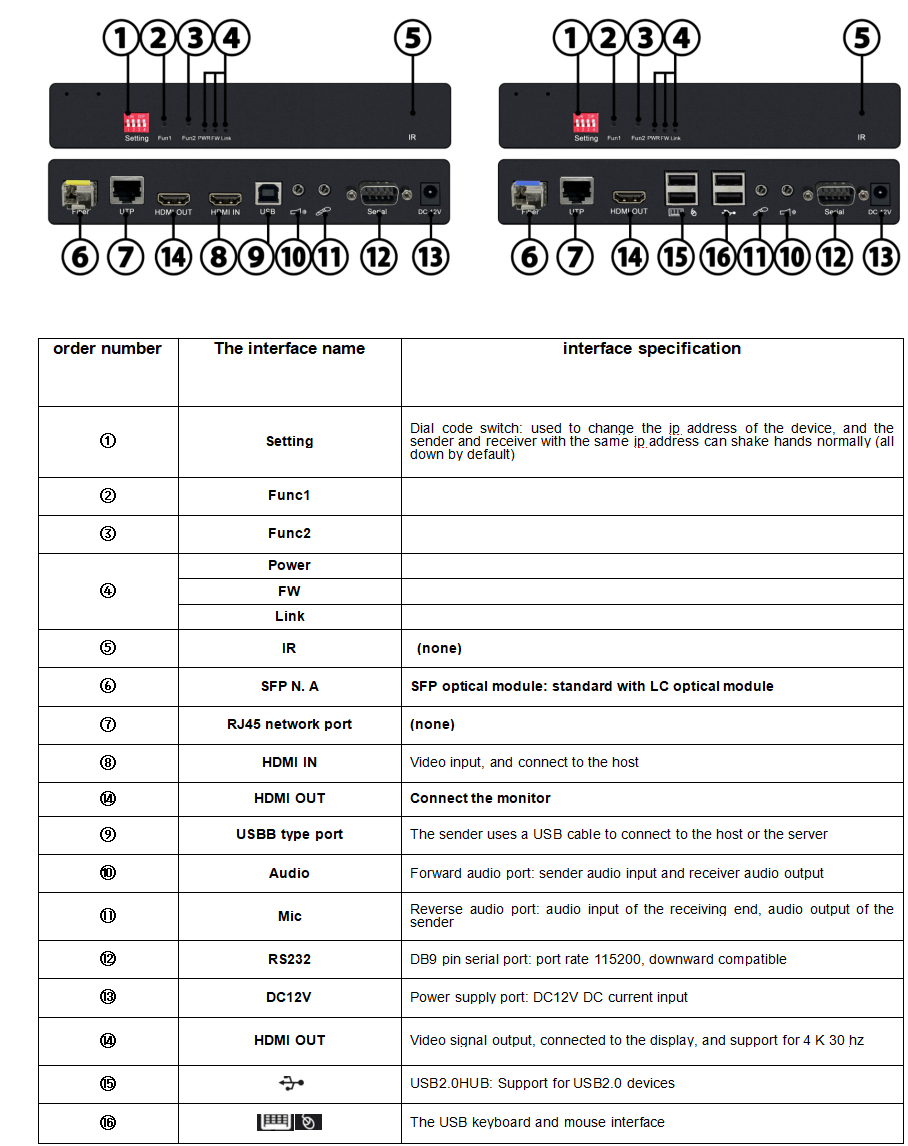

interface |
transmitting terminal | receiving terminal | |
Connection port | HDMI IN*1 and HDMI Out *1 | HDMI Out*1 |
RS232 serial port *1 | RS232 serial port *1 | |
USB typeB*1 | The USB type A*4 | |
Audio IN*1 | Audio Out*1 | |
MIC Out*1 | MIC IN*1 | |
RJ 45 network port*1 | RJ 45 network port*1 | |
SFP fiber optic interface*1 | SFP fiber optic interface*1 | |
Power LED*1 | Power LED*1 | |
FW LED*1 | FW LED*1 | |
LINK LED*1 | LINK LED*1 | |
resolution ratio | 3840 * 2160@60Hz 1920*1080@60Hz | 3840 * 2160@60Hz 1920*1080@60Hz |
source | Power | Power |
DC12V2A | DC12V2A | |
work environment | Recommended operating temperature: 0~50°C | Recommended operating temperature: 0~50°C |
Storage temperature: -20~60°C | Storage temperature: -20~60°C | |
Humidity 0 ~ 90% RH, no condensation | Humidity 0 ~ 90% RH, no condensation | |
physical characteristics | ironclad | ironclad |
Dimensions: 193 * 135 * 33 (L * W * H) mm | Dimensions: 193 * 135 * 33 (L * W * H) mm |
