Product Introduction

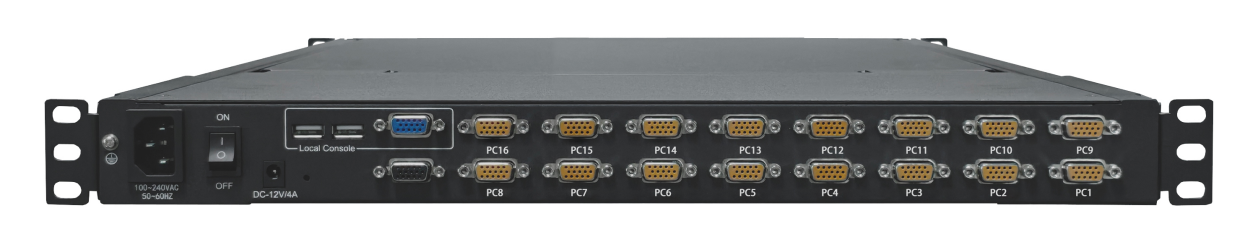

DY-SWB1716It is a rack-mounted 17-inch screen 16-port LCD KVM switch. It features high-definition image quality without distortion, snow, or ghosting. The device has an additional local control port built into its body, allowing the connection of a separate keyboard, mouse, and monitor. It supports rack installation, which is easy to install and operate. The body is aesthetically pleasing and sturdy, making it a professional choice.

Product Features

l The integrated 17-inch LCD display, keyboard, mouse, and KVM control terminal are housed in a single pull-out chassis.

l Standard 1U rack-mounted installation;；

l It can directly connect 16 computers or servers；

l Supports an external KVM control port；

l Thin chocolate keyboard with a numeric keypad；

l Supports built-in AC220V and DC12V adapter power redundancy

l Resolution up to 1280*1024 @ 60Hz;

l Supports hot swapping, allowing you to add or remove connected devices without turning off the KVM or device power;

l No software installation required – simply select and switch the controlled port server by clicking the panel button, keyboard hotkey, and OSD menu below;

l The rail has an automatic locking device, a pull-out installation design, and can adjust its length to fit various cabinet spaces.

l The Auto-scan feature enables KVM to automatically scan each computer and name every server through the OSD visual control menu for easier management.

l Compatible with mainstream brand devices including PCs, servers, DVRs, and industrial PCs.

l Complies with the ISO9001:2015 Quality Management System;

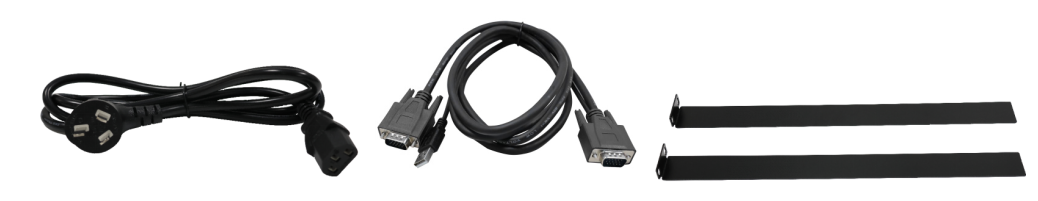

Product Accessories

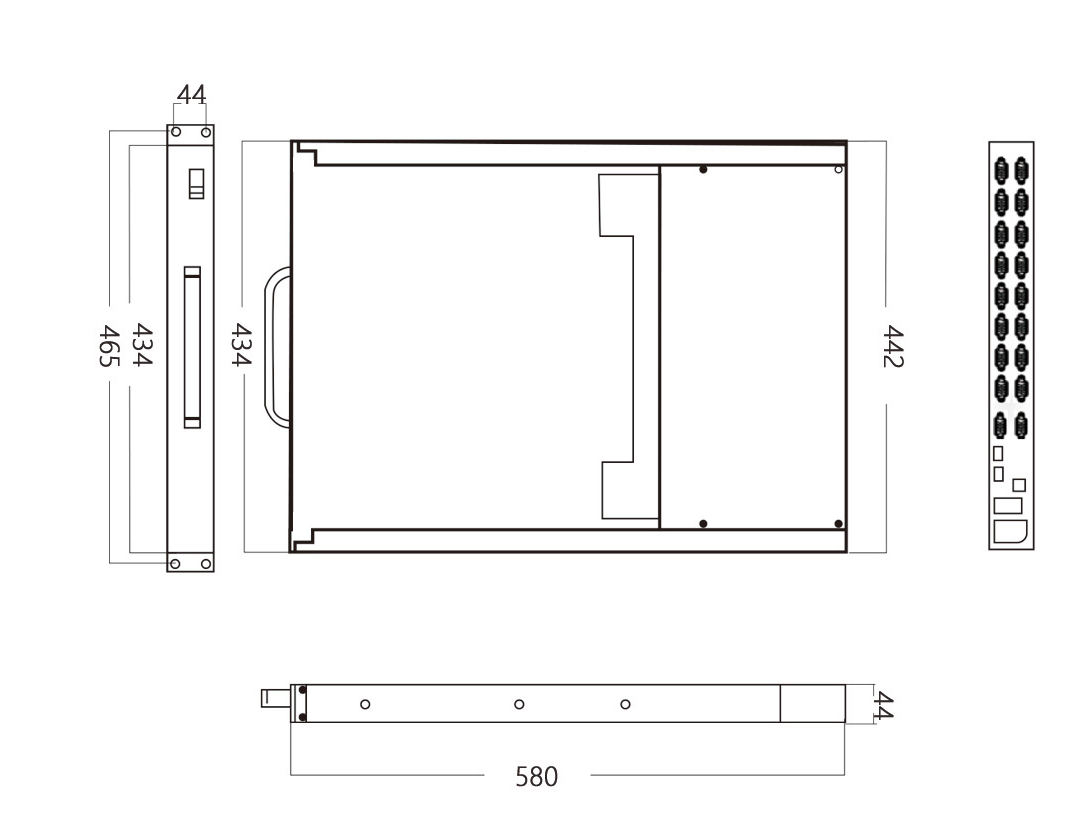

Product dimensions

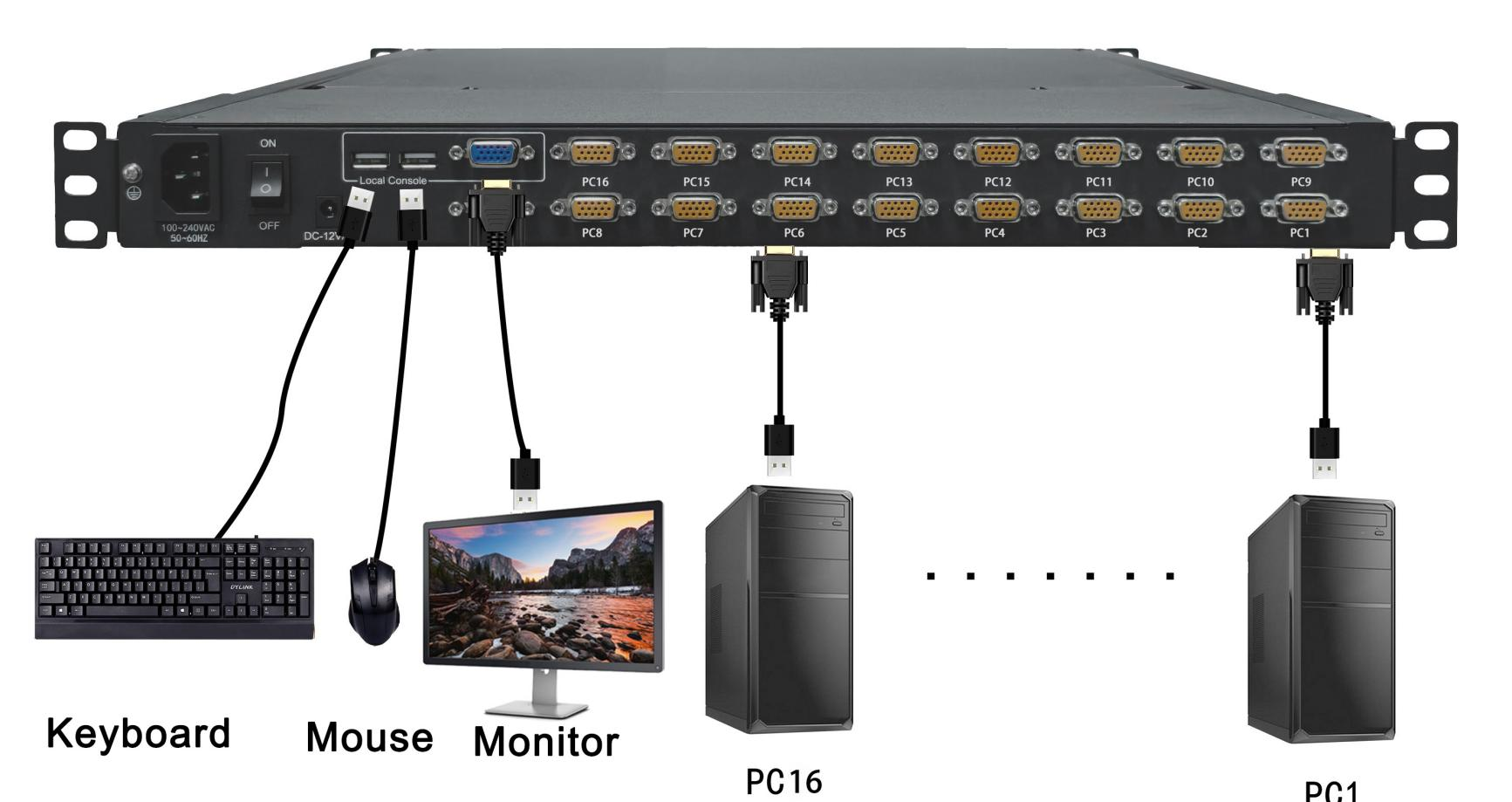

Product Connection Schematic Diagram

Switch by pressing the key

16-Port:：

  Switch directly by pressing the 1-16 port buttons on the host

Menu toggle

(1) OSD Key

（2）Call up the OSD menu via hotkeys

OSD (On-Screen Display Menu)

Main Menu --- Provides 8 menus for operation, details as follows:

Installation Steps

Please install according to the installation diagram and the following operating steps:

(1) Please ensure that the power of all devices to be connected is turned off, including the power of the originally existing devices being turned off.

(2) Use a set of KVM cables to connect the rear ports of the KVM switch to the servers with KVM-specific cables.。

(3) a) For the USB connection head, connect one end of the VGA cable to the VGA port on the back of the KVM, and the other end of the VGA cable to the VGA port on the server. Connect the USB cable to the USB port on the server.

(4) b)For PS/2 connectors, insert the keyboard, mouse, and monitor connectors into the corresponding ports on the host.

(5) Note: Repeat steps 2 and 3 to connect other hosts.

(6)  Power on KVM Turn on the power of all hosts.。

Note: Power-on sequence requirements. First, turn on the server power, then turn on the KVM power.

Specification Parameters
