product description

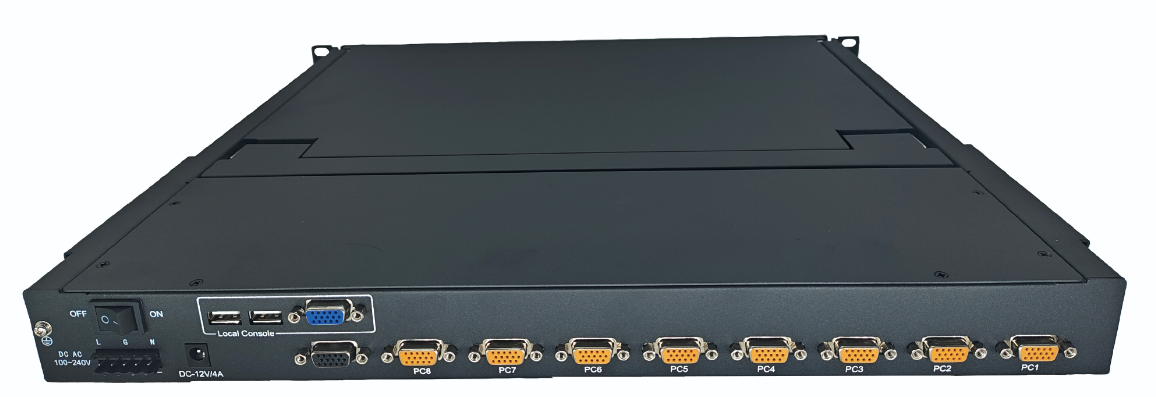

DY-SW1508AH-DC-410mmIt is a KVM control device with video and USB switching functions. It integrates 8 KVM console ports and a 15.6-inch LCD screen into a 1U height structure, allowing management of 8 computer servers through an internal keyboard, touch mouse, and display. It is efficient, convenient, space-saving, and cost-effective. The device is easy and simple to install; just connect the cables to their corresponding ports. No software configuration is required, and there are no compatibility issues.

Product Features

• Integrate 8-port KVM console and 15.6-inch LCD screen into a 1U height structure to manage 8 computer servers;

• Equipped with a high-definition display with a resolution as high as 1920 x 1080, and compatible with multiple lower resolutions.

• The video switching speed is fast; images can be rendered in 1~2 seconds.

• l Two switching methods: switching via the front panel button and switching via the OSD menu (double-click Scroll LOCK)

• Connect to the computer's USB port to control the device with a keyboard and mouse.

• Built-in keyboard, touchpad, and display;

•     Provides 2 USB 1.1 interfaces (2 rear, 1 front) for connecting external USB keyboards and mice, supporting most wired and wireless keyboards and mice. The USB keyboards and mice support port emulation, enabling seamless switching of USB keyboards and mice between computers and servers.

• Supports cross-platform operating systems such as Windows, Unix, Linux, Mac, and domestic operating systems based on Linux like NingSi, Kylin, and UnionTech.

•  Hot-swappable support – servers can be added or removed at any time without needing to power down the LCD console;

• The panel has 8 buttons to select and switch between 8 computer servers, and it can also switch using hotkeys;

• No software installation is required; you can directly operate on the computer server.。

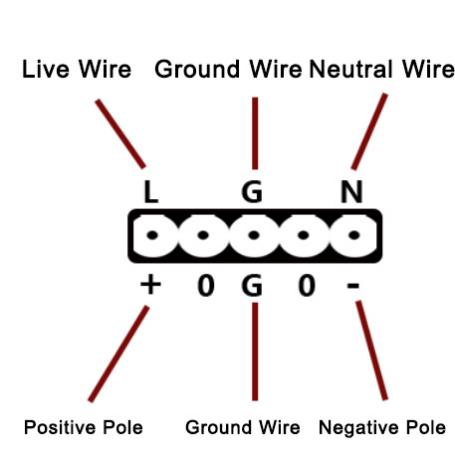

contact indicationcontact indication

AC220V AC power input  ———

DC220VDC power connection ———

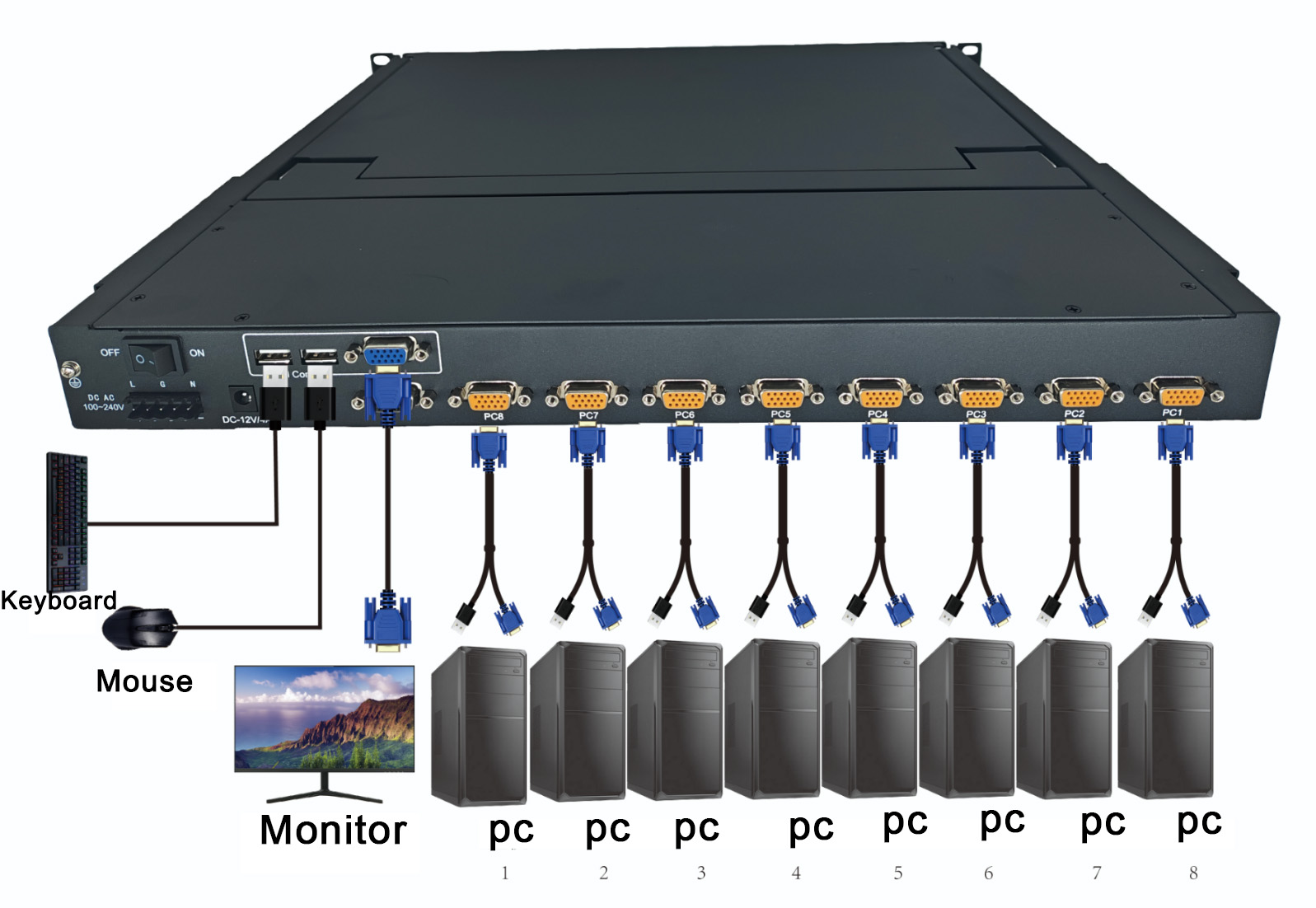

Schematic Diagram of Device Connection

Specifications
