4K HDMILCDKVM Switch

分类：HDMI DVI DP KVM4in-1

描述：

Product Description：The 17.3inch LCD HDMI KVM switch is a 4K KVM control device with audio and video functions. It integrates a 17inch monitor, ultrathin keyboard, and mouse touchpad into a 1U height unit, using a drawerstyle installation method. Compared to standard keyboards, monitors, and mice,

在线咨询

全国热线

0755 86120002

简介 / Introduction

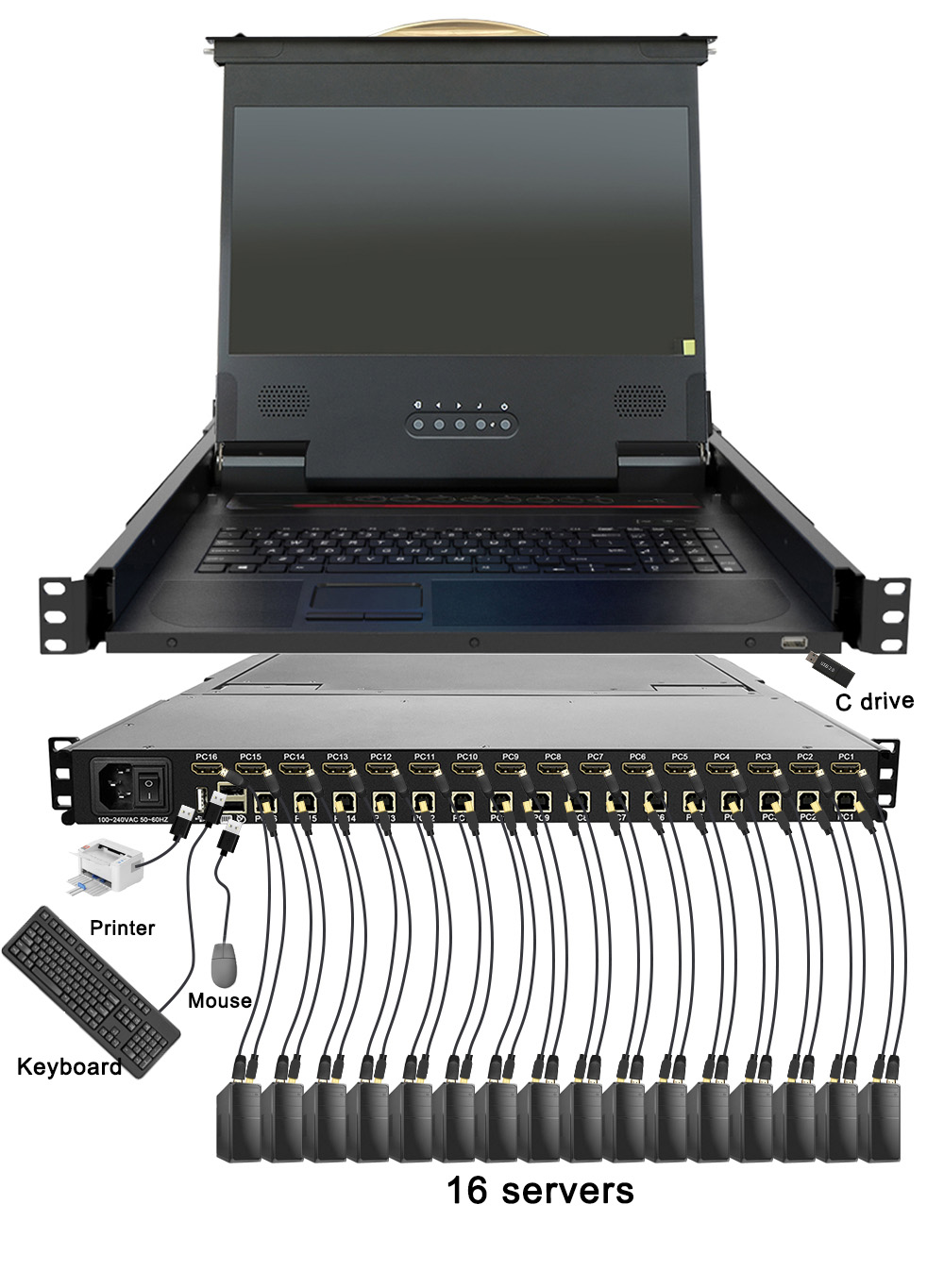

概括拓扑图规格

Product Description：

The 17.3inch LCD HDMI KVM switch is a 4K KVM control device with audio and video functions. It integrates a 17inch monitor, ultrathin keyboard, and mouse touchpad into a 1U height unit, using a drawerstyle installation method. Compared to standard keyboards, monitors, and mice, it can save up to 85% of space.

HDMI video input interface, which supports ultrahighdefinition digital video display with a maximum resolution of 3840 x 2160 (60Hz) and is downward compatible with multiple resolutions such as 2560x1600, 2560x1440, 1920x1200, and 1920x1080.

The rackmounted pullout design allows for the LCD display, keyboard, and touchpad. It can control 16 channels of HDMI 4K highdefinition video signals and USB control signals.

The front panel of the LCD KVM switch additionally features a set of USB 2.0 HUB, which can connect USB flash drives, keyboards, mice, and other devices; the rear interface panel reserves 2 USB 1.1 ports and 1 USB 2.0 port for connecting external keyboards, mice, and USB flash drives.

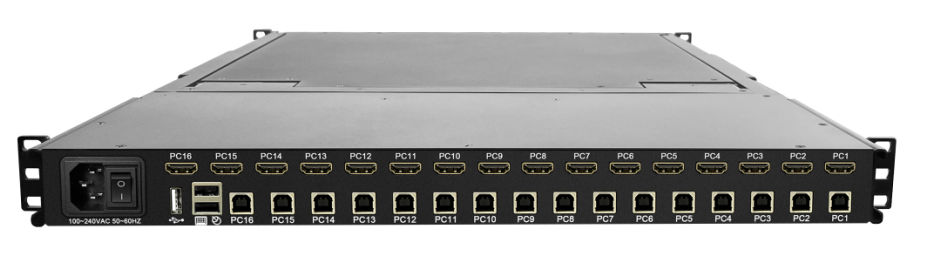

Interface Schematic Diagram

Product Features:

l Integrate 16 KVM control units and a 17.3inch LCD screen into a 1U height structure to manage 16 computer servers

l Supports ultrahighdefinition digital video (4K@60Hz) with a maximum display resolution of 3840 x 2160, and is compatible with multiple resolutions such as 2560x1600, 2560x1440, 1920x1200, and 1920x1080.

l Complies with HDMI 2.0 specification

l Connect the USB interface to the computer server port to control the computer

l Frontpanel reserved USBHub, fully compliant with USB 2.0 specifications, supporting connection of any USB 2.0 devices.

l USB keyboard and mouse support port emulation, enabling hotkey switching of USB keyboard and mouse between computer servers.

l Multiplatform support, compatible with systems such as Windows, Netware, Unix, Linux, etc.

l Supports hotswapping – servers can be added or removed at any time without turning off the LCD console.

l Select and switch between computer servers via buttons or keyboard hotkeys.

l Supports automatic scanning with 7 adjustable interval levels ranging from 5 to 300 seconds.

l No software installation required; direct operation of computer servers is available.

l Equipped with two frontmounted 8Ω 2W highfidelity speakers, supporting HDMI audio functionality and fullfrequency stereo audio playback.

l The touchpad supports scroll wheel sliding.

Product dimensions

Product Parameters

LCD Screen Parameters	Size:	17.3-inch 4K Screen (LCD)
	Resolution:	3840(RGB)×2160 , UHD
	Color display:	16.7M
	Brightness:	300 cd/m2
	Viewing Angle:	89/89/89/89 (Typ.)(CR≥10
	Display area	382.12(W)×214.94(H) mm
	Contrast:	1000:1 (Typ.) (TM)
	Working frequency	60Hz
Touchscreen Parameters (Optional)	Resolution	4096 x 2160
	Transmittance	≥80%
	Click lifespan	＞1000000 Times
	Surface hardness	≥4H
Interface	Control signal	16 x USB B type interface
	Video signal	16 x HDMI 2.0 type interface
	Keyboard and mouse expansion interface	2 x USB 1.1(rear)
	Peripheral Expansion Operation Interface	1 x USB 2.0(front) ，1 x USB 2.0(rear)
Switch Panel Function		16 x Switch Button (The switch button can arbitrarily switch a certain port)
Switch Panel Indicator Light Function		16 x red LED lights (LED lights flashing indicate the current port position)
Maximum PC connections:		16 units
PC Port Connection Specifications		HDMI
Switching method:		Switching with buttons/shortcut keys
Automatic scan interval:		5 ~ 300 seconds, 7 adjustable levels
Keyboard/Mouse:		104-key keyboard and touchpad
Input Rated Voltage:		AC 100240V , 50/60Hz , 48w
Shell:		Iron shell spray painting
Space:		1U, 19-inch rack
Net Weight / Gross Weight (KG):		12.7kg / 17kg
Size(W x H x D)：		442 x 42 x 580 (mm)
Package dimensions (W x H x D)：		675x578x170mm
Operating Temperature:		0°C to 50 °C
Storage Temperature:		20°C to 60°C
Humidity:		10% to 90% (non-condensing)
