Product Description：

1.  The DYSW1708HLCD HDMI console is a 4K KVM control device with audio and video capabilities. Integrating an 8port KVM console and a 17inch LCD screen into a 1Uheight structure, it can manage 8 computer servers. Equipped with HDMI video input interfaces, it supports ultrahighdefinition digital video (4K@60Hz) with a maximum resolution of 3840 x 2160.

2.  It is compatible with multiple resolutions including 2560x1600, 2560x1440, 1920 x 1200, and 1920 x 1080.

3.  Users can pair this pullout console with compatible KVM switches or audio/video extenders. Its singlerail design allows independent operation of the LCD display, keyboard, and touchpad. The console provides 8 HDMI 4K highdefinition video signals, enabling connection of highresolution monitors to the console ports or HDMIcompatible switches to the computerside ports.

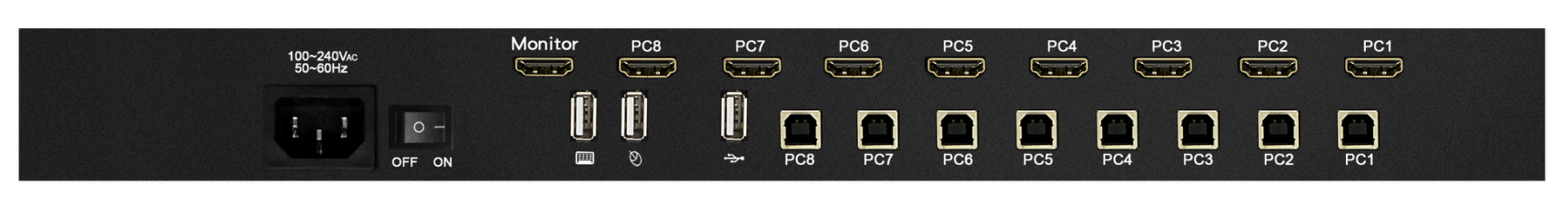

4.  The front panel of the SW1708H additionally features a USB mouse port; the rear panel is equipped with external console ports (for keyboard, mouse, USB flash drive, and HDMI 4K highdefinition monitor).

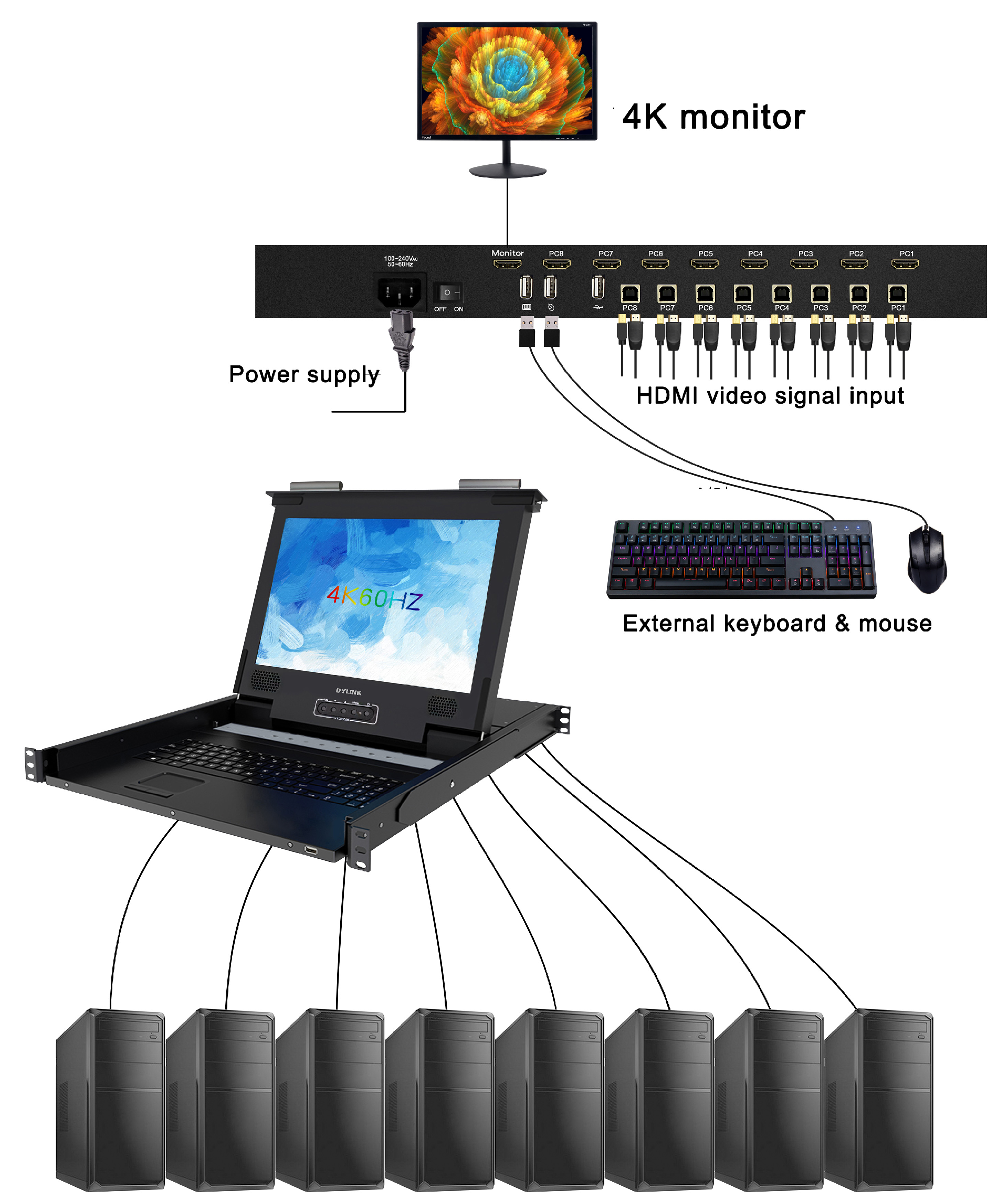

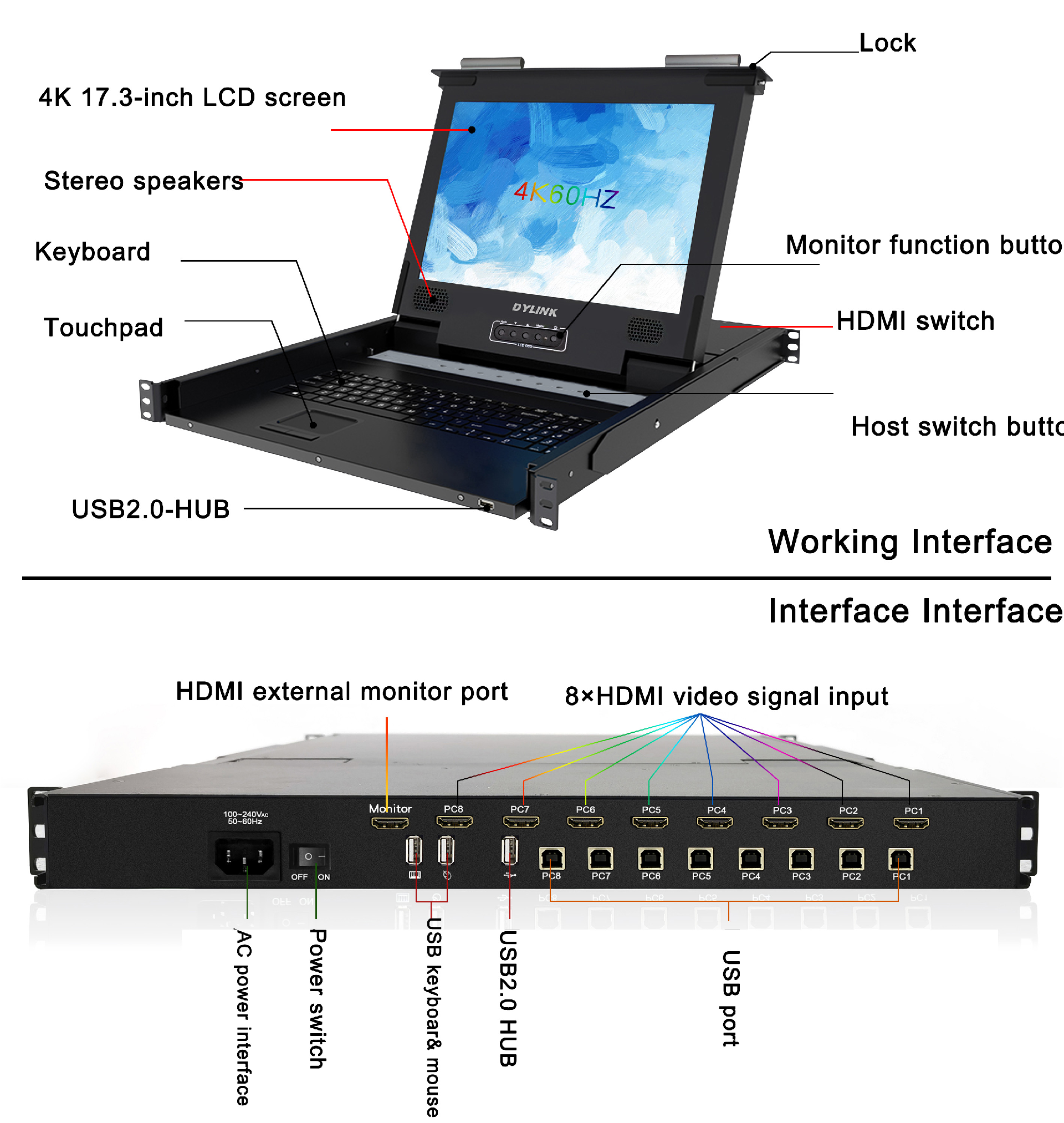

Interface Schematic Diagram

Product Features:

•  Integrates an 8port KVM console and a 17inch LCD screen into a 1Uheight structure to manage 8 computer servers.

• Equipped with HDMI video input interfaces, supporting ultrahighdefinition digital video (4K@60Hz) with a maximum resolution of 3840 x 2160, and compatible with multiple resolutions including 2560x1600, 2560x1440, 1920 x 1200, and 1920 x 1080.

• Complies with the HDMI 2.0 specification and supports HDCP.

•  Supports HDMI audio function and fullfrequency stereo audio playback, allowing you to work happily with music!

• USB ports connect to computer server ports for system control.

• Builtin 2port USB Hub, fully USB 2.0 compliant, supporting any USB 2.0 devices.

•  Equipped with a keyboard and touchpad.

•  USB keyboard and touchpad support port emulation, enabling seamless switching of USB peripherals between servers.

• Multiplatform compatibility: supports MS Windows, Netware, Unix, Linux, etc.

• Supports hotswapping – servers can be added or removed at any time without shutting down the LCD console.

•  Server selection and switching via buttons or keyboard hotkeys.

•  Supports adjustable autoscan intervals (7 levels, 5–200 seconds).

• Supports daisychaining to control more computer servers.

• No software installation required; direct operation of computer servers is available.

•       Two frontmounted 8Ω 2W highfidelity speakers.
