Product DescriptionThe DY-SW1708DP-LCD DisplayPort console is a 4K KVM control device with audio and video capabilities. The DY-SW1708DP integrates an 8-port KVM console and a 17-inch LCD screen into a 1U-height structure to manage 8 computer servers. Equipped with DisplayPort video input interfaces0755 86120002
The DY-SW1708DP-LCD DisplayPort console is a 4K KVM control device with audio and video capabilities. The DY-SW1708DP integrates an 8-port KVM console and a 17-inch LCD screen into a 1U-height structure to manage 8 computer servers. Equipped with DisplayPort video input interfaces, it supports ultra-high-definition digital video (4K@60Hz) with a maximum resolution of 3840 x 2160, and is compatible with multiple resolutions including 2560x1600, 2560x1440, 1920 x 1200, and 1920 x 1080.
Users can pair this pull-out console with compatible DYLINK KVM switches or audio/video extenders. Its single-rail design allows independent operation of the LCD display, keyboard, and touchscreen. The console provides 8 DP 4K high-definition video signals, enabling connection of high-resolution monitors to the console ports, or connection of DP-compatible switches to the computer-side ports.

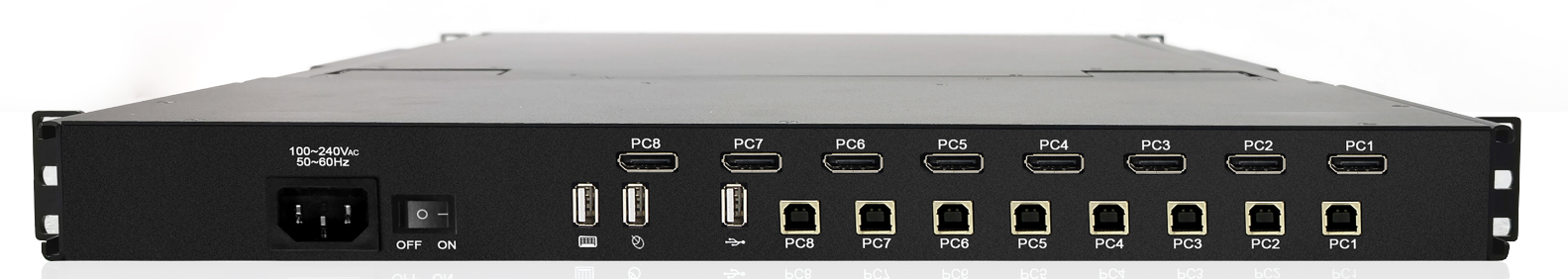

The front panel of the DY-SW1708DP additionally features a USB mouse port; the rear panel is equipped with external console ports (for keyboard and mouse).

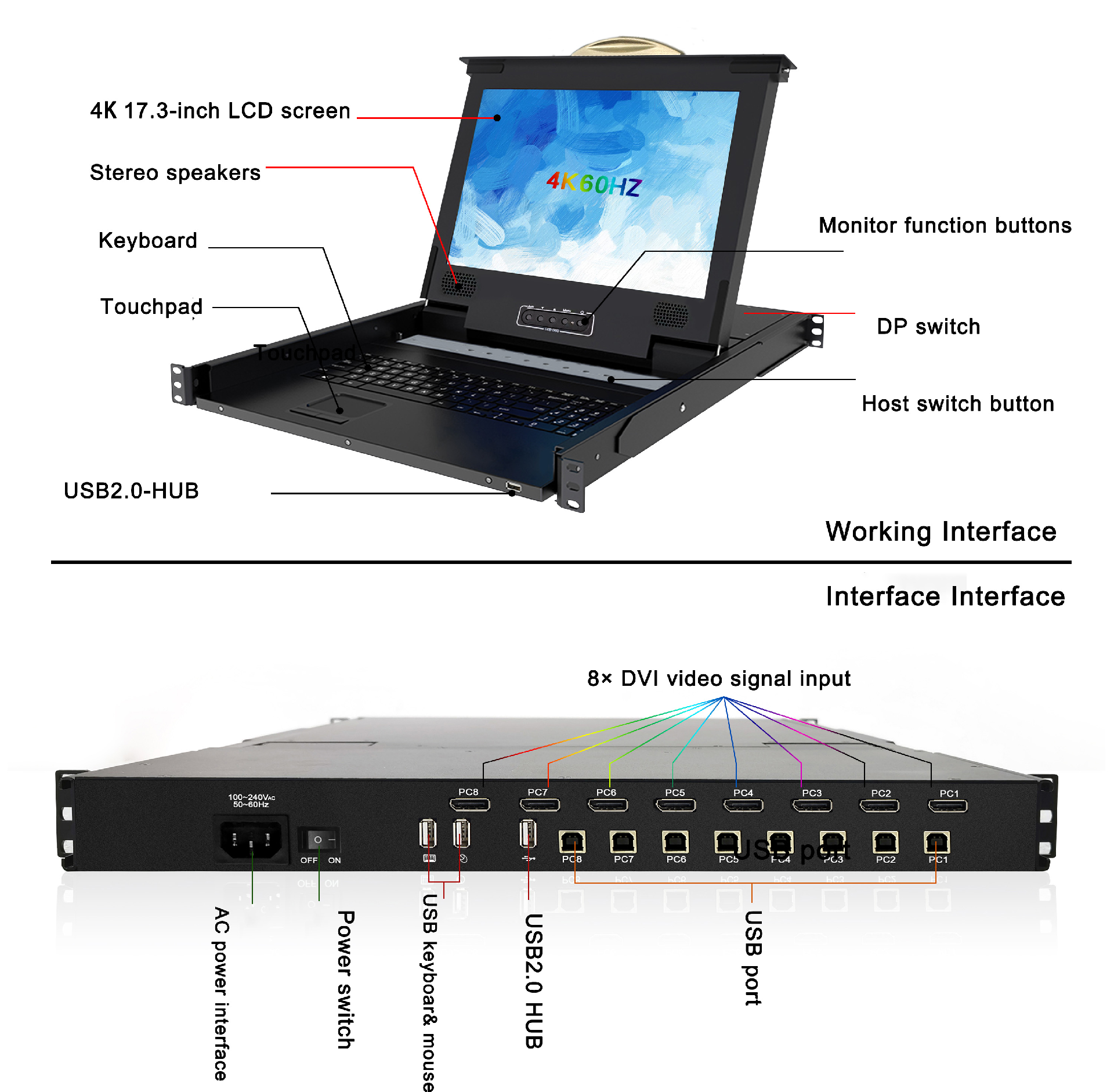

Interface Schematic Diagram
l Integrates an 8-port KVM console and a 17-inch LCD screen into a 1U-height structure to manage 8 computer servers.
l Equipped with DisplayPort (DP) video input interfaces, supporting ultra-high-definition digital video (4K@60Hz) with a maximum resolution of 3840 x 2160.
l Compatible with multiple resolutions including 2560x1600, 2560x1440, 1920 x 1200, and 1920 x 1080.
l Complies with the DP 1.2 specification and supports HDCP.
l Supports DP audio function and full-frequency stereo audio playback, allowing you to work happily with music!
l USB ports connect to computer server ports for system control.
l Built-in 2-port USB Hub, fully USB 2.0 compliant, supporting any USB 2.0 devices.
l Equipped with a keyboard and touchpad.
l USB keyboard and touchpad support port emulation, enabling seamless switching of USB peripherals between servers.
l Multi-platform compatibility: supports MS Windows, Netware, Unix, Linux, etc.
l Supports hot-swapping – servers can be added or removed at any time without shutting down the LCD console.
l Server selection and switching via buttons or keyboard hotkeys.
l Supports adjustable auto-scan intervals (7 levels, 5–200 seconds).
l Supports daisy-chaining to control more computer servers.
l No software installation required; direct operation of computer servers is available.
l Two front-mounted 8Ω 2W high-fidelity speakers.

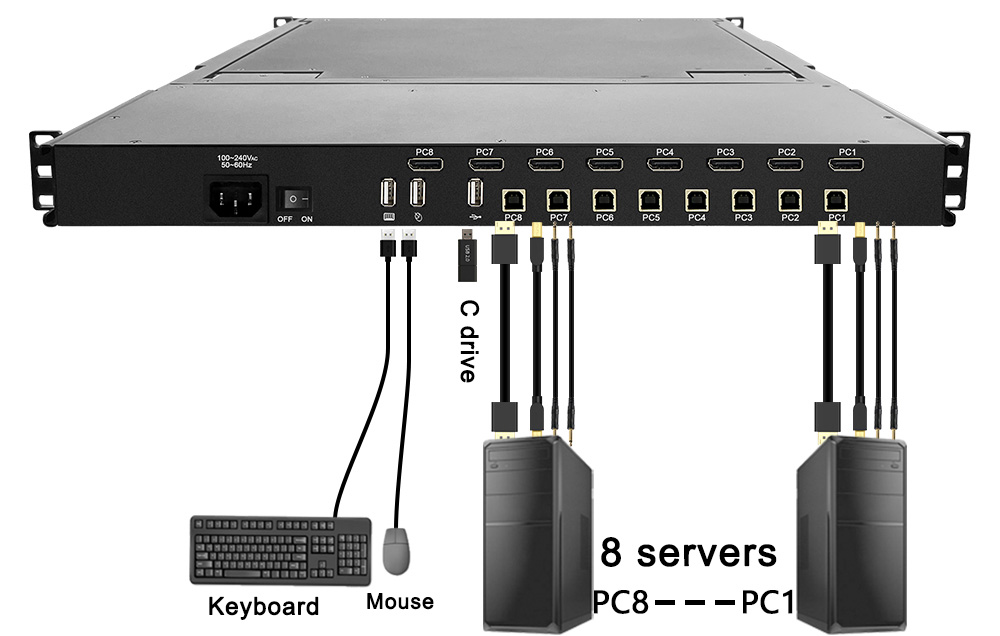

Topology diagram

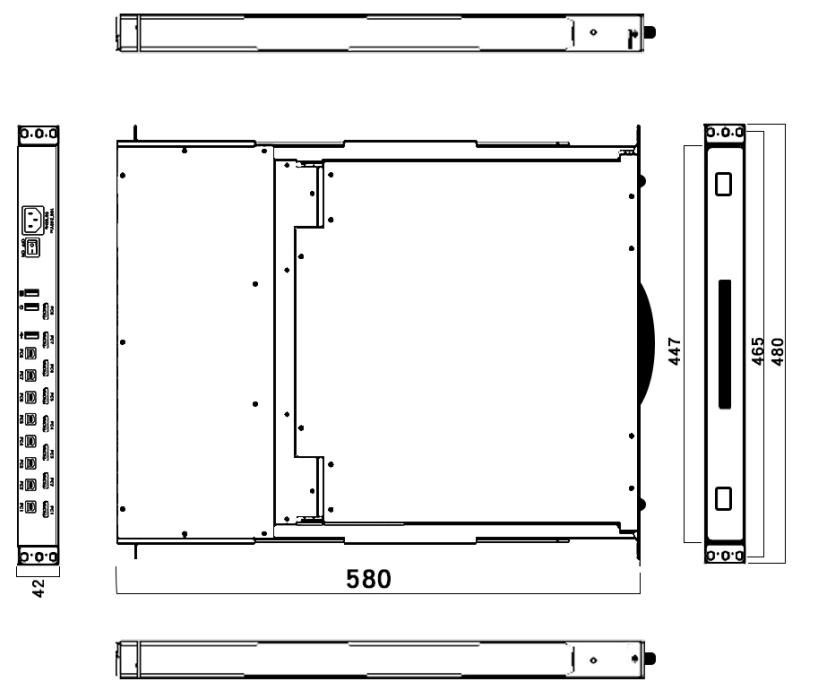

Product dimension
Specifications
Model | DY-SW1708DP | |
LCD Screen Parameters | Size ： | 17.3-inch 2K LCD |
Resolution ： | 3840(RGB)×2160 , UHD | |
Color Display ： | 16.7M | |
Brightness ： | 300 cd/m2 | |
Viewing Angle ： | 89/89/89/89 (Typ.)(CR≥10 | |
Display Area | 382.12(W)×214.94(H) mm | |
Contrast Ratio ： | 1000:1 (Typ.) (TM) | |
Operating Frequency | 60Hz | |
Interface | Keyboard/Mouse | 8 x USB-B type interface |
Video Signals | 8 xDP interface | |
Keyboard and mouse expansion interface | 2 x USB 1.1 (rear) | |
Peripheral Expansion Operation Interface | 1 x USB 2.0 (front) ，1 x USB 2.0 (rear) | |
Switch Panel Function | 8 x Switch Button (The switch button can arbitrarily switch a certain port) | |
Switch Panel Indicator Light Function | 8 x red LED lights (the LED lights flashing indicate the current port position) | |
Maximum PC connections: | 8 | |
PC Port Connection Specifications | HDMI | |
Switching method: | Toggle button | |
Automatic scan interval:： | 5 ~ 300 Times | |
Keyboard/Mouse： | USB | |
Input Rated Voltage: | AC 100-240V , 50/60Hz , 48W | |
Shell: | Galvanized steel sheet | |
Space: | 1U ,19-inch rack | |
Net Weight / Gross Weight (KG): | 13.5kg / 20kg | |
Dimensions (W x Hx D): | 442 x 42 x 580 (mm) | |
Package dimensions (W x H x D): | 800x168x710mm | |
Operating Temperature： | 0°C to 50 °C | |
Storage Temperature： | -20°C to 60°C | |
Humidity： | 10% to 90% (non-condensing) | |
Certifications | CE/FCC | |
