Product Description:
The 17-inch LCD DVI KVM switch is an audio-visual KVM control device that integrates a 17-inch display, ultra-thin keyboard, and mouse touchpad into a 1U-height unit. It adopts a drawer-type installation, which completely solves space shortages—saving 85% of space compared to standard keyboards, displays, and mice.
It features a DVI video input port, supporting ultra-high-definition digital video with a maximum resolution of 1920×1080 (60Hz), and is backward compatible with multiple resolutions including 1600×900, 1440×900, 1366×768, and 1280×1024.
The rack-mounted drawer design allows access to the LCD display, keyboard, and touchpad. It can control 8 channels of DVI high-definition video signals, USB control signals, and bidirectional audio signals.

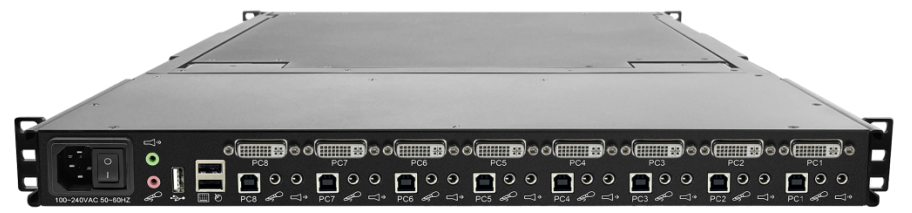

The front panel of the LCD KVM switch is additionally equipped with a USB 2.0 HUB, which can connect devices such as USB drives, keyboards, and mice. The rear interface panel reserves 2 USB 1.1 ports and 1 USB 2.0 port (for external keyboards, mice, and USB drives), and also supports synchronous switching of 8 channels of bidirectional audio signals.

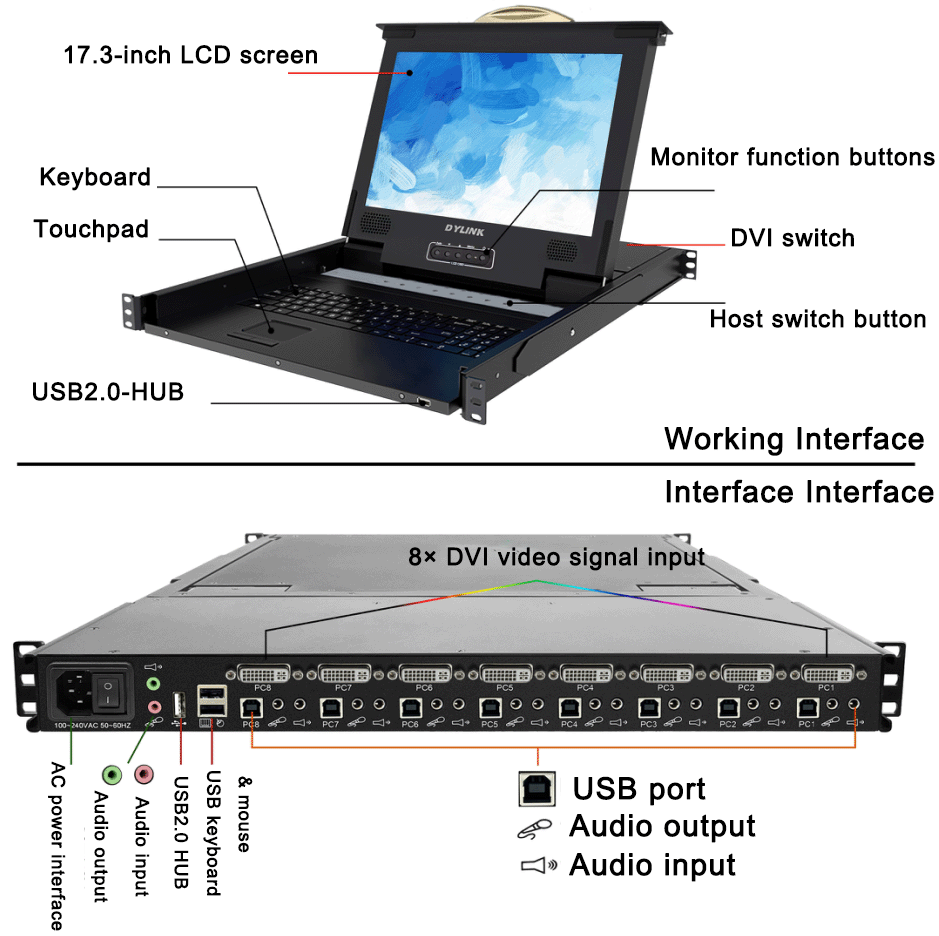

Interface Schematic Diagram
Product Features
l Integrates an 8-port KVM console and a 17-inch LCD screen into a 1U-height structure to manage 8 computer servers.
l Supports high-definition digital video display with a maximum resolution of 1920 x 1080, and is compatible with multiple resolutions including 1600x900, 1440x900, 1366 x 768, 1280 x 1024.
l Complies with the DVI 1.0 specification.
l USB ports connect to computer server ports for system control.
l A front-panel USB Hub (fully USB 2.0 compliant) is reserved, supporting any USB 2.0 devices.
l USB keyboard and mouse support port emulation, enabling seamless switching of USB peripherals between servers.
l Multi-platform compatibility: supports MS Windows, Netware, Unix, Linux, etc.
l Supports hot-swapping – servers can be added or removed at any time without shutting down the LCD console.
l Server selection and switching via buttons or keyboard hotkeys.
l Supports adjustable auto-scan intervals (7 levels, 5–300 seconds).
l No software installation required; direct operation of computer servers is available.
l Equipped with bidirectional audio switching: audio is switched simultaneously when the server is switched.

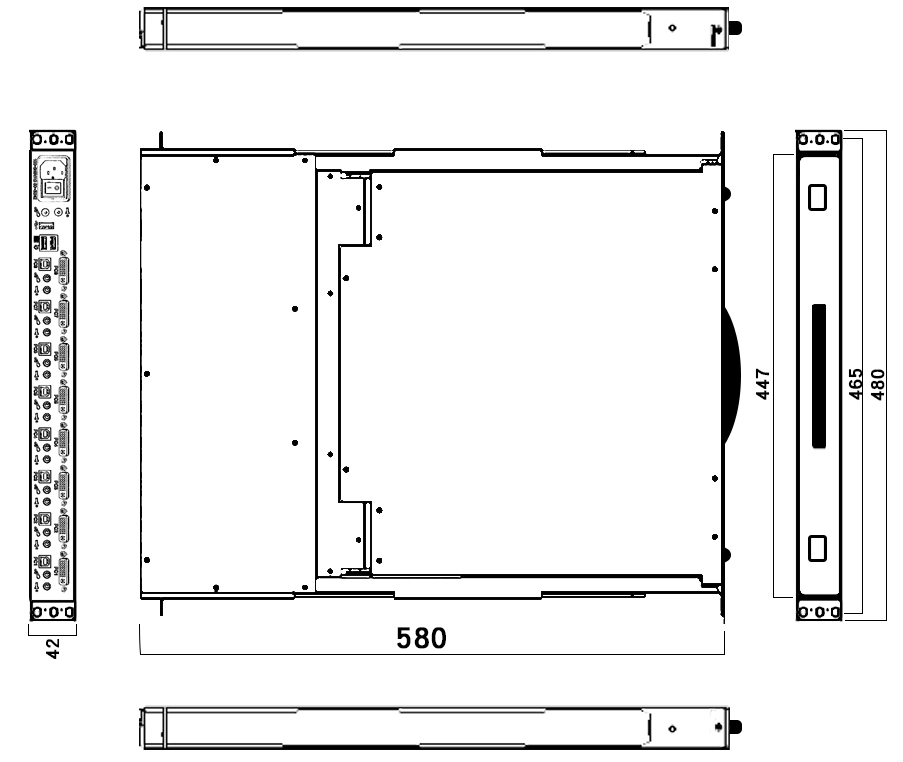

Product dimensions

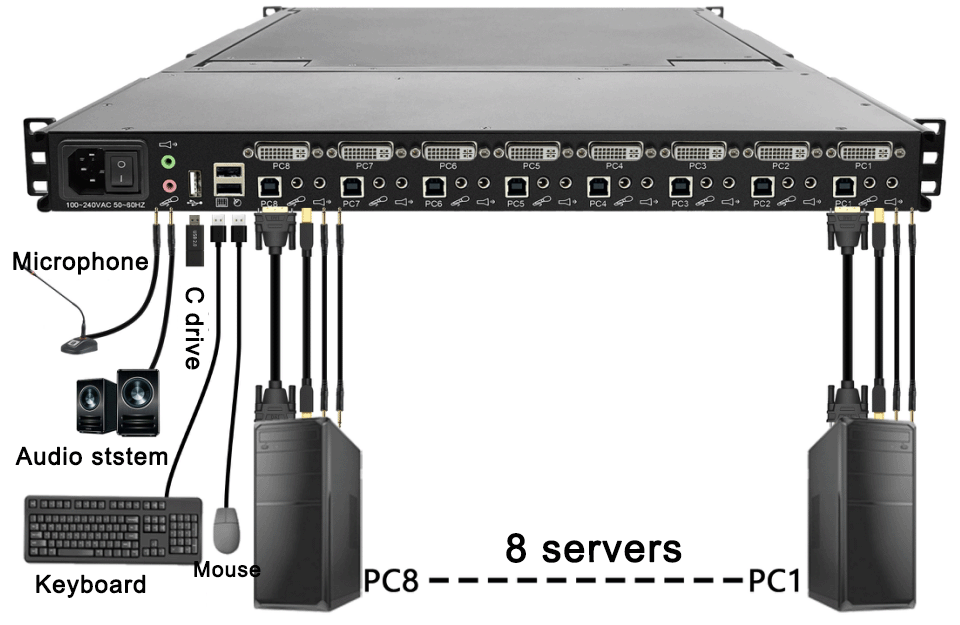

Topology diagram
Specifications
Model | SW1708H | |
LCD Screen Parameters | Size ： | 17.3-inch 2K LCD |
Resolution ： | 1920*1080p | |
Color Display ： | 16.7M | |
Brightness ： | 300 cd/m2 | |
Viewing Angle ： | 89/89/89/89 (Typ.)(CR≥10 | |
Display Area | 382.12(w)×214.94(h) mm | |
Contrast Ratio ： | 1000:1 (Typ.) (TM) | |
Operating Frequency | 60Hz | |
Touch Screen Parameters (Optional) | Resolution | 4096 x 2160 |
Transmittance | ≥80% | |
Click Lifespan | ＞1000000 times | |
Surface Hardness | ≥4H | |
Interfaces | Control Signals | 8×USB-B female ports |
Video Signals | 8×DVI 1.0 ports | |
Keyboard/Mouse Interface | 2 x USB 1.1 (rear) | |
Peripheral Expansion Ports | 1×USB 2.0 (front), 1×USB 2.0 (rear) | |
Switch Functions | 8×switch buttons (each button switches the corresponding port) | |
Switch Indicator Function | 8×red LED lights (blinking indicates the current port) | |
Maximum PC Connections | 8 units | |
PC Port Connection Specifications | DVI | |
Switching method:： | Switch by pressing a key / Hotkey switch | |
Automatic scan interval: | 5 ~ 300 seconds, 7 adjustable levels | |
Keyboard/Mouse: | 104-key keyboard and touchpad | |
Input rated voltage: | AC 100-240V , 50/60Hz , 48瓦 | |
Shell: | Iron shell spray painting | |
Space: | 1U, 19-inch rack | |
Net Weight / Gross Weight (KG): | 12.7kg / 17kg | |
Dimensions (Width x Height x Depth): | 442 x 42 x 580 (mm) | |
Package Dimensions (W×H×D) | 675x578x170mm | |
Operating Temperature： | 0°C to 50 °C | |
Storage Temperature： | -20°C to 60°C | |
Humidity： | 10% to 90% (non-condensing) | |
Certifications | CE/FCC/ISO9001; Entire unit meets UL standards | |
