Overview:

The 4K KVM over IP HD video fiber optic extender is a KVM video signal extension device primarily based on IP technology and connected via fiber optics. Featuring professional over IP KVM functionality, it enables remote access to the computer system through the internal network from the USB control terminal.

4K Dual DP KVM High-Definition Video Fiber Extender

1. A fiber optic 4K video KVM extender with integrated DisplayPort video signals, USB keyboard and mouse control signals, USB2.0HUB function (USB devices such as USB drives, U KEY, printers, mobile hard drives, touch screens, etc.), RS232 interface signals, bidirectional audio signals, LC fiber optic interface, and iron shell body;

2. The local transmitting end of the device is connected to the computer host through the video signal and control signal of the gigabit digital encoding technology, and then connected to the receiving end of the extender through the optical fiber jumper (single mode can transmit 20 kilometers, multi-mode can transmit 300-500 meters). The user can operate the computer at the receiving end.

3. Supports 4K x 2K resolution (up to 3840 x 2160, VGA 1080p) for exceptional display performance. With ultra-low latency transmission, it ensures premium video quality. Ideal for education, banking, healthcare, and confidential office environments.

Package Includes

Features

l The gigabit digital coding technology is adopted to make the image clear and smooth with small delay;

l Independent bidirectional audio transmission;

l DP digital audio and DP audio separation function

l USB 2.0 HUB feature (USB devices such as USB flash drives, printers, wireless keyboards and mice, touchscreens, etc.);

l The RJ45 port enables signal transmission up to 150 meters.

l Hot-swappable design, plug and play;

l Supports 1920 x 1080 and is backward compatible with various standard resolutions

l Featuring four powerful USB ports, it supports high-capacity USB devices.

l You can connect through a switch or directly

l Compatible with different video signal interfaces.

Product options

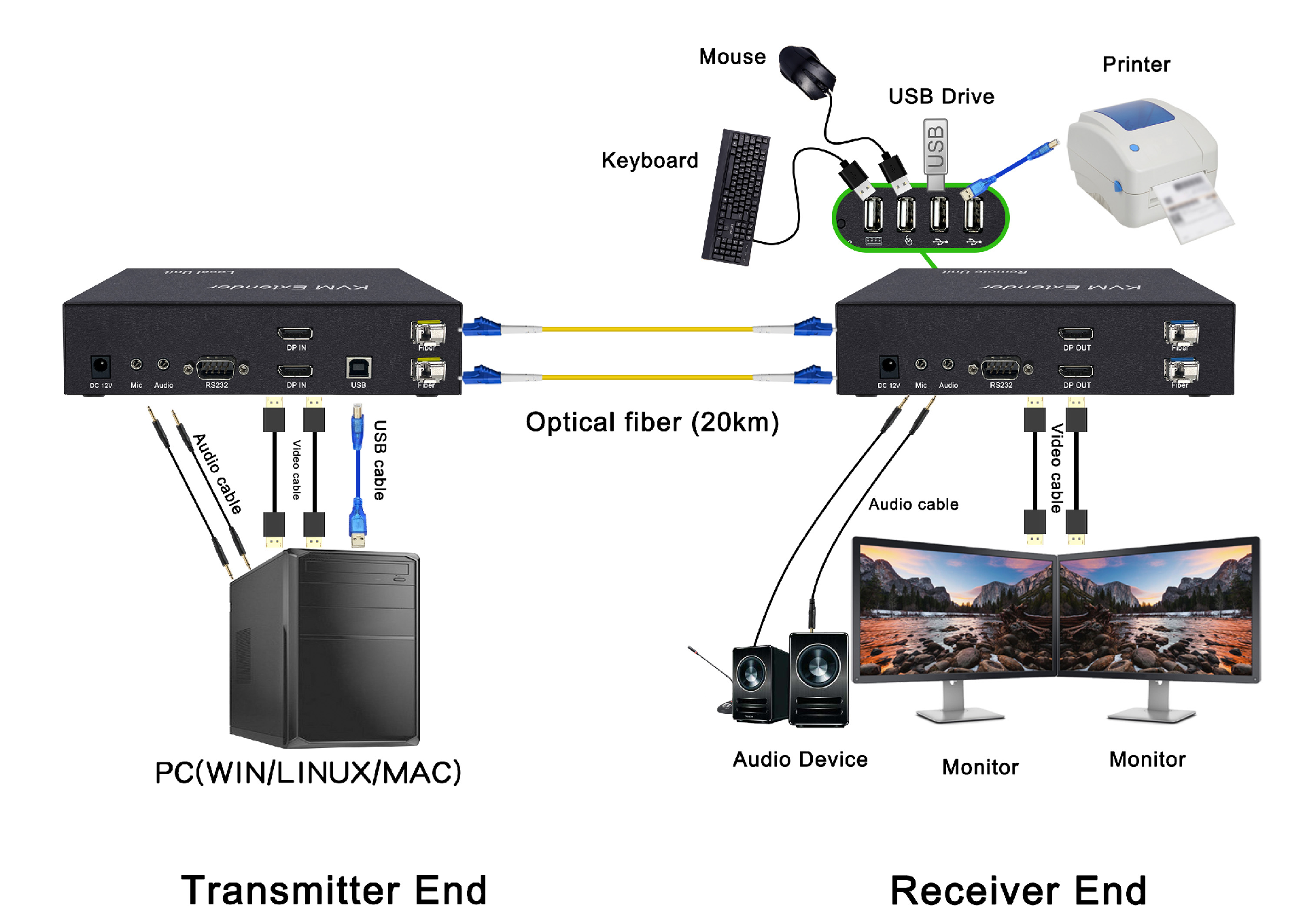

 attended operation

1. First, verify that the dial switch encoding on both the sending and receiving ends is consistent.

2. The transmitter connects to the controlled host via standard video cables, USB cables, and audio cables

3. The receiver connects to monitors, audio devices, USB keyboards, mice, and other USB devices.

4. The sender and receiver are connected by optical fiber..

5. Connect the power supply to both the transmitter and receiver.

6. The sender and receiver display the connection status through indicator lights.

7. Support hot-swapping, allowing you to add or remove controlled devices without powering down the KVM.

8. Cross-platform support for mainstream operating systems including Windows, Linux, and Sun

Note: Change the dial code and power off the device to restart it.

Interface Diagram

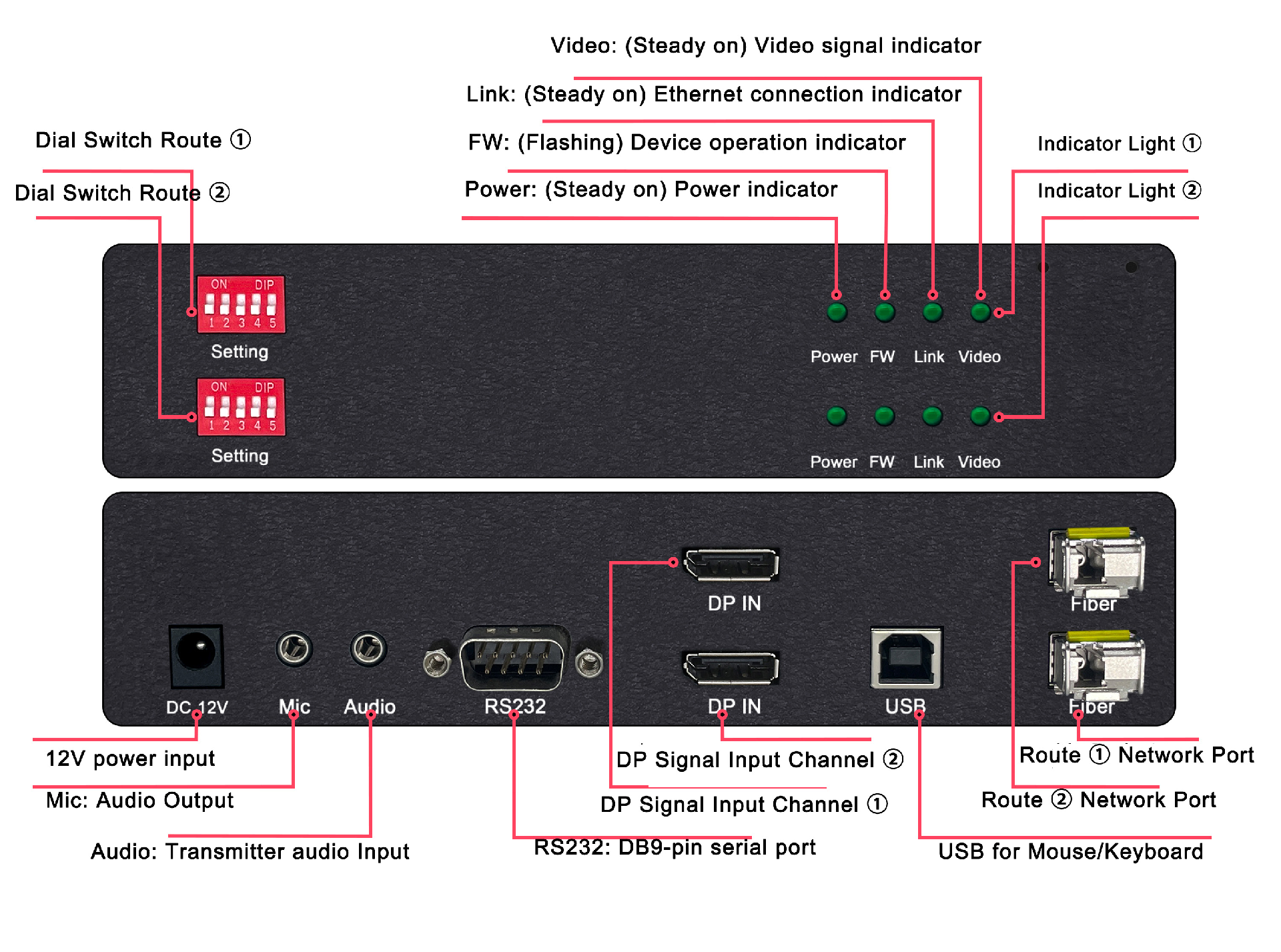

l Transmitting end

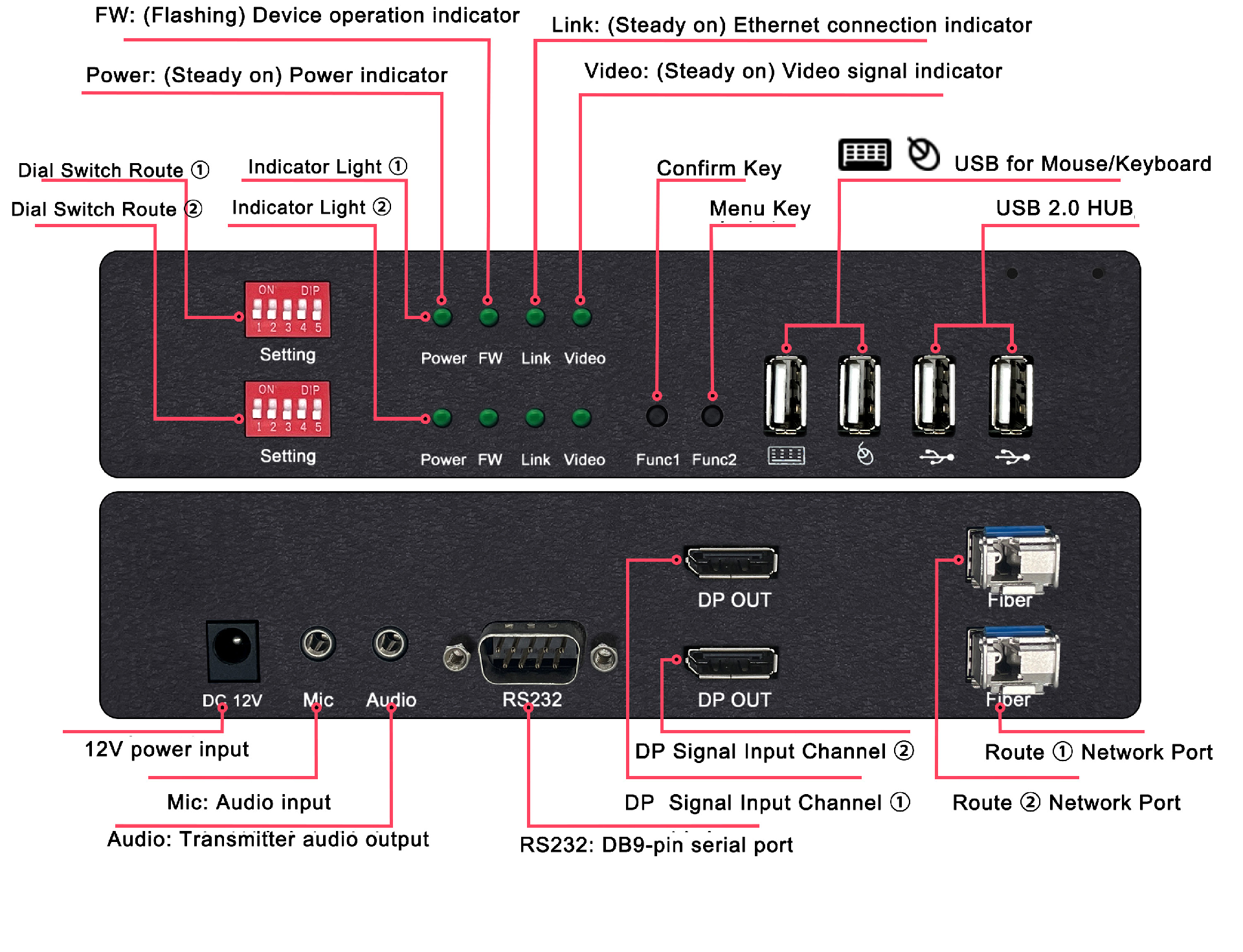

l Receiving end

Product Parameter
