分类：Reinforcement machine
描述：
Product Introduction：DY-MPC14PIt is a 14.0-inch rugged portable handheld terminal. It features a high-performance, low-power, wide-temperature computer motherboard with built-in power management functions and supports large-capacity batteries for long续航 time. It is equipped with a high-definition0755 86120002
Product Introduction：
DY-MPC14PIt is a 14.0-inch rugged portable handheld terminal. It features a high-performance, low-power, wide-temperature computer motherboard with built-in power management functions and supports large-capacity batteries for long续航 time. It is equipped with a high-definition, high-brightness display and an anti-glare touchscreen. The motherboard has rich native expansion signals such as PCIe, gigabit Ethernet port, USB 3.0, and serial port, offering powerful expansion capabilities and space to meet customized service needs for various requirements. The housing is processed using CNC aluminum alloy technology, with a fanless design and stand. It boasts strong rugged protection, wide-temperature design, and strong environmental adaptability. The entire machine has undergone testing for vibration, impact, drop, high and low temperatures, and can start and work directly at low temperatures.
Product Features
l Industrial reinforcement, three-proof design, full aluminum alloy CNC machining process
l 14-inch EDP 1920*1200 resolution with a default brightness of 400; high-brightness screens with customizable brightness from 700 to 1000 are available.
l Adopts Intel 6th, 7th, and 8th generation platform wide-temperature motherboards with built-in power management to meet industrial industry requirements;
l Built-in 3-series 11.4V=12500mAh high-capacity polymer battery, which can be customized to meet wide-temperature requirements as needed.
l Single camera design, rear 5MP, or can be customized as required;;
l Rich function interfaces, supporting dual network ports, serial port, multiple USB interfaces, etc., and also supporting customized function interfaces;

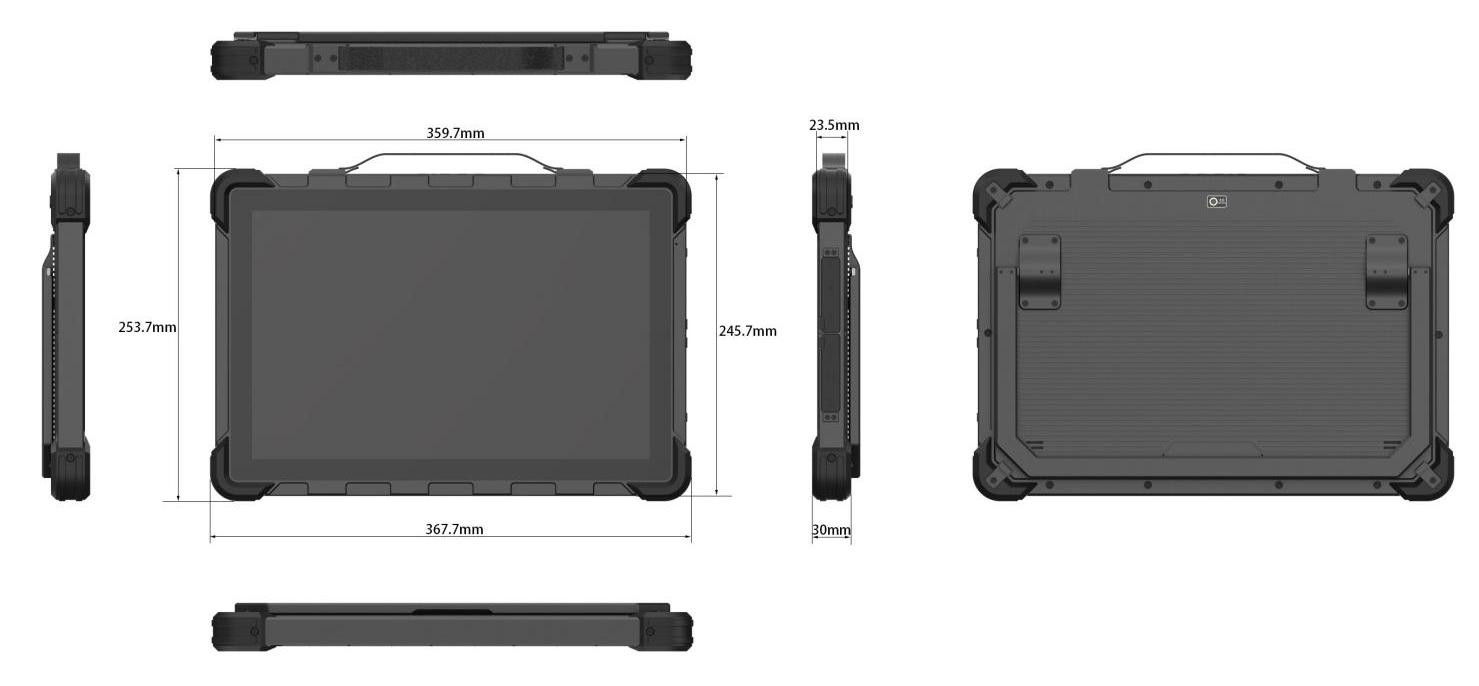

Product Interface and Dimensions
Specifications
Serial number | Name | Detailed description | Note | |
1 | Platform | Intel® Core™ 6th, 7th, and 8th Generation Platforms | ||
2 | Processor | Intel® Core™ i7-6600U Processor 4M Cache, up to 3.40 GHz Intel® Core™ i5-7200U Processor 3M Cache, up to 3.10 GHz Intel® Core™ i7-8550U Processor 8M Cache, up to 4.00 GHz Support I3-6100U/7100U/8130U、I5-6200U/7200U/7300U/8250U、 I7-6500U/6600U/7500U/8550U Wait for the entire series of CPUs | ||
3 | Graphics card | Intel® UHD Graphics 520 or 620 | ||
4 | System | Operating systems such as Windows 7/10, Linux, Zhongbiao, and Kylin; | ||
5 | Display screen | 14.0-inch EDP 1920*1200 resolution 400 nits brightness (customizable to 700-1000 nits brightness) | ||
6 | Touchscreen | 14.0-inch Capacitive Touchscreen (Optional Anti-Glare, Waterproof Touchscreen) -- Full Lamination Process | ||
7 | Memory | Supports 8GB RAM | Supports up to 40GB at 2133 MHz | Select sticker |
Supports 1*SODIMM memory module with 2133, each module supports up to 32GB | Optional | |||
8 | Storage | Supports 1*M.2 NVMe 2280 SSD hard drive, maximum support 2TB | ||
Supports 1*M.2 SSD hard drive, maximum support 4TB | ||||
9 | Wireless network | INTEL AC7260 WIFI/BT module supporting MINI PCIE interface | Optional | |
10 | 3G/4G | 3G or 4G module supporting MINI PCIE interface | Optional | |
11 | Camera | Supports rear 500W HD USB camera | Optional | |
12 | GPS/BD | Supports GPS/BD dual-in-one module | Optional | |
13 | Fingerprint recognition | USB Interface Fingerprint Module | Optional | |
14 | Indicator light | 1 Power indicator light, 1 battery indicator light | ||
15 | Press the key | 4 buttons (1 power on/off button, volume up/down buttons, F1 (customizable function key)) | ||
16 | Loudspeaker | Built-in 2 stereo speakers | ||
17 | Microphone | Built-in microphone | ||
18 | Battery | Built-in 3 11.4V=12500mAh polymer battery. Normal temperature working time ≥8 hours, low temperature working ≥3 hours, standby time 240 hours (10 days); ---- The battery can be customized to be larger. | Optional | |
19 | Standard interface | Right side: 2*USB 3.0, 1*RJ45, 1*HDMI, 1*Audio Jack, 1*SIM Card Slot, 1*DC Power Port | ||
20 | Encryption | It can be equipped with an encryption dog. | Optional | |
21 | Power supply | 19V=3.42A DC5525 Plug | ||
22 | Shell material | Aluminum alloy CNC precision housing, silicone protective corners, silicone stoppers, and metal brackets | ||
23 | Overall dimensions | 359.7mm*245.7mm*23.5mm (Without corner guards）、367.7mm*253.7mm*30mm (With corner guards） | ||
24 | Overall weight | 3.15kg | ||
25 | Operating temperature | 20 degrees to 55 degrees or -40 degrees to 55 degrees | Optional | |
26 | Storage temperature | from -30 degrees to 60 degrees | ||
24 | Damp heat | Meets the relevant requirements in GJB367A-2001/GJB150A-2009 | Optional | |
28 | Vibration | Meets the relevant requirements in GJB367A-2001/GJB150A-2009 | Optional | |
29 | Impact | Meets the relevant requirements in GJB367A-2001/GJB150A-2009 | Optional | |
30 | Salt spray | Meets the relevant requirements in GJB367A-2001/GJB150A-2009 | Optional | |
31 | Mold | Meets the relevant requirements in GJB367A-2001/GJB150A-2009 | Optional | |
32 | Electromagnetic Compatibility | Complies with the relevant requirements in GJB151B-2013 | Optional | |
33 | Protection rating | IP54/IP65（Dustproof, waterproof） | Optional | |
34 | Accessory | Charger, wrist strap, stylus pen, carry strap, metal stand, certificate of conformity | ||
