Overview:

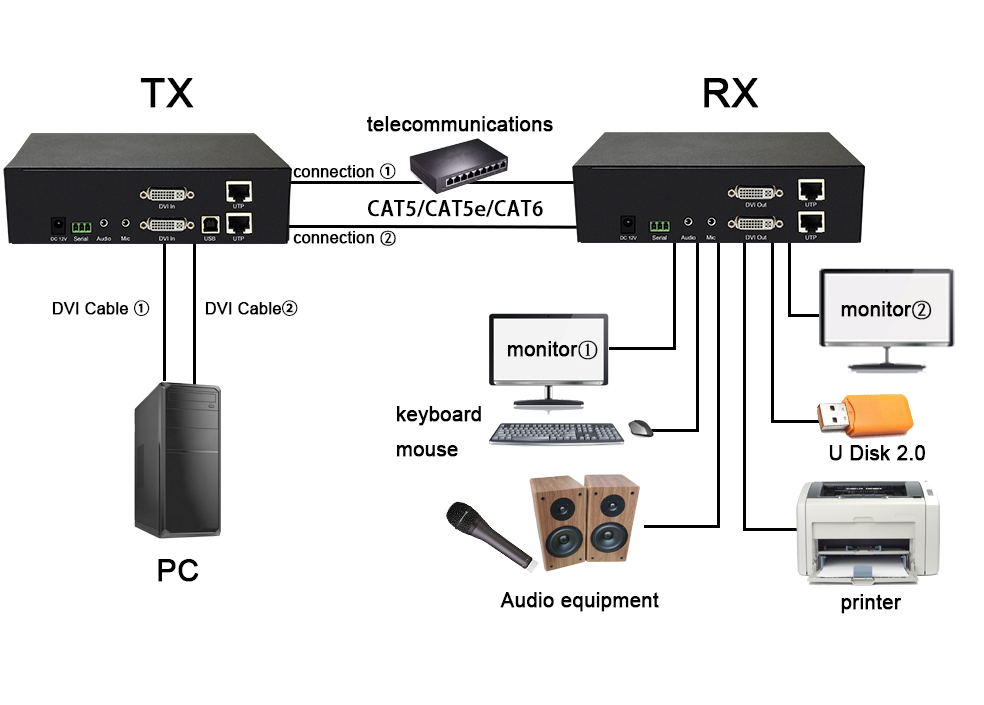

The EX2505D USB Dual DVI KVM Extender integrates the latest technology and delivers dual DVI video, USB and stereo audio signals up to 200m by using twisted pair. With an easy cable installation supporting various signals, the KVM Extender is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations. A complete set of EX2505D including Transmitter (EX2505D_TX) and Receiver (EX2505D_RX).

Features

n Uses one twisted pair cable to connect the transmitter and receiver units

n Superior DVI video quality: up to 3840*2160@30Hz

n Transparent USB2.0 – supports a wide range of USB devices include keyboard, mouse, mass storage devices and printers. It provides 4 USB ports on the receiver and 1 USB on the transmitter

n Supports individual 2-channel stereo audio, 1 LINEIN + 1 LINEOUT

n RS232 serial port – support connection to a serial terminal

n Easy to install – no software required - connecting cables to the devices is all it takes

n Plug and play

Package Includes

1 x EX2505D-TX

1 x EX2505D-RX

2 x Power Adapter

1 x Audio cable

1 x DVI Cable

1 x USB Cable

1 x User’s Manual

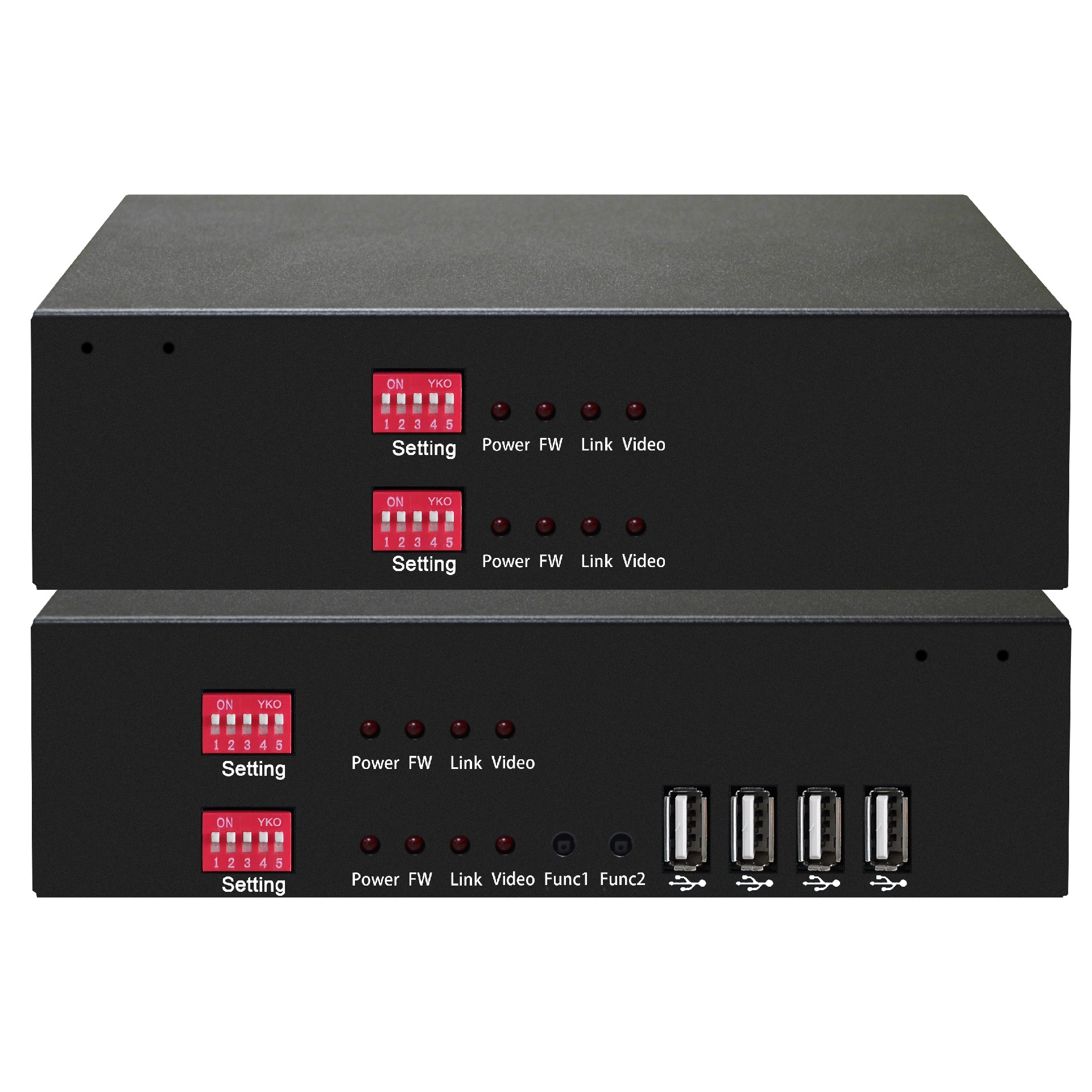

Indicators and Function Buttons

Specifications
