Overview

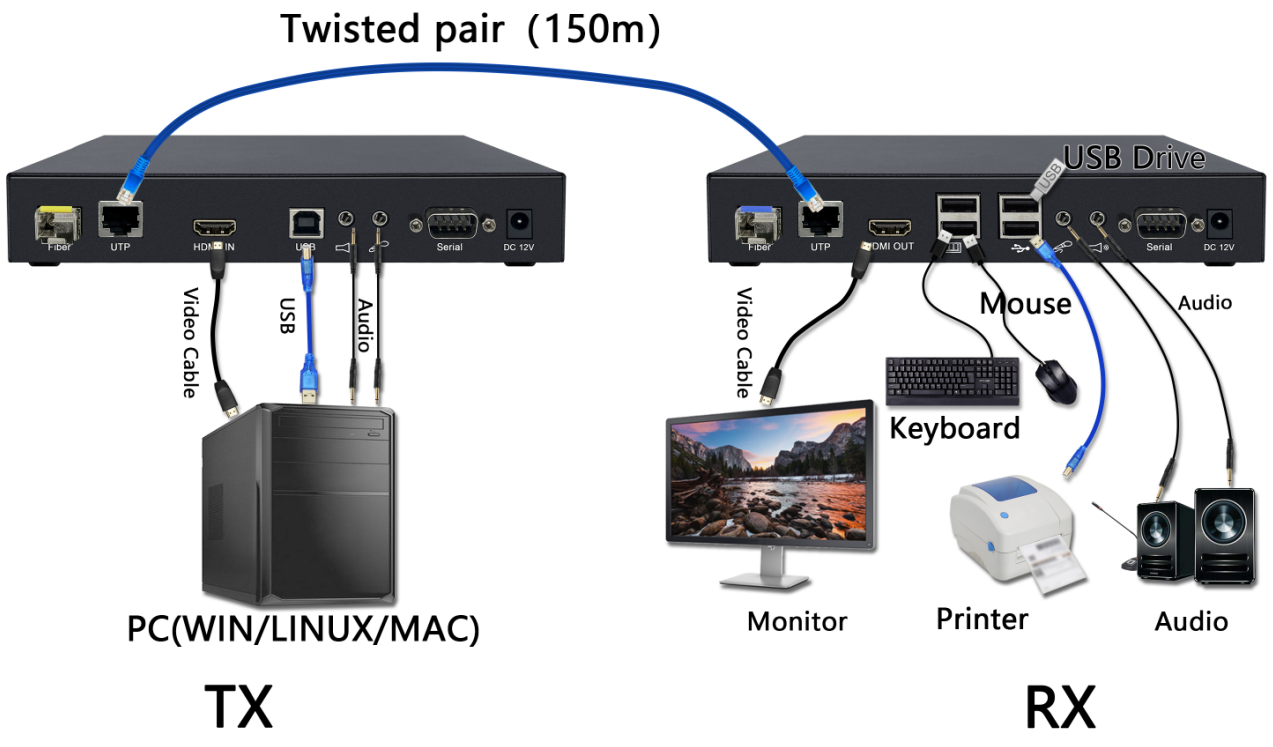

The 4K60HZ HDMI KVM Extender integrates the latest technology and delivers HDMI video, USB and stereo audio signals up to 20KM by using single mode fiber optics OR RJ45，It is possible to transmit up to 150 meters using a RJ45. With an easy cable installation supporting various signals, the KVM Extender is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations

Features

n Uses Twisted pair cable to connect the transmitter and receiver units

n Superior HDMI video quality: up to 3840*2160@60Hz

n Transparent USB2.0 – supports a wide range of USB devices include keyboard, mouse, mass storage devices and printers. It provides 4 USB ports on the receiver and 1 USB on the transmitter

n Supports individual 2-channel stereo audio, 1 LINEIN + 1 LINEOUT

n RS232 serial port – support connection to a serial terminal

n Easy to install – no software required - connecting cables to the devices is all it takes

n Plug and play

n The transmitter has an HDMI output

Package Includes

1 x TX

1 x RX

2 x Power Adapter

1 x Audio cable

1 x HDMI Cable

1 x USB Cable
