Product Overview

The 4K KVM over IP network cable extender is a KVM video signal extension device primarily based on IP technology, connecting via network cables. Featuring professional over IP KVM functionality, it enables remote access to the computer system through the internal network from a USB control device.

4K HDMI MIKVM network cable extender local output

1. A network ultra HD video KVM extender that integrates HDMI video signals, USB keyboard and mouse control signals, USB2.0HUB functionality (including USB devices like USB drives, UKEYs, printers, and touchscreens), RS232 interface signals, bidirectional audio signals, RJ45 network ports, and features a rugged metal casing.

2. Using Gigabit digital encoding technology, the device's local transmitter connects to the computer's HDMI video signal and USB control signals via a network cable, extending up to 150 meters. The receiver allows users to operate the computer.

3. Supports 4K x 2K resolution (up to 3840 x 2160@60Hz) for exceptional display performance. With ultra-low latency, it delivers premium video quality. Ideal for education, banking, healthcare, and secure office environments.

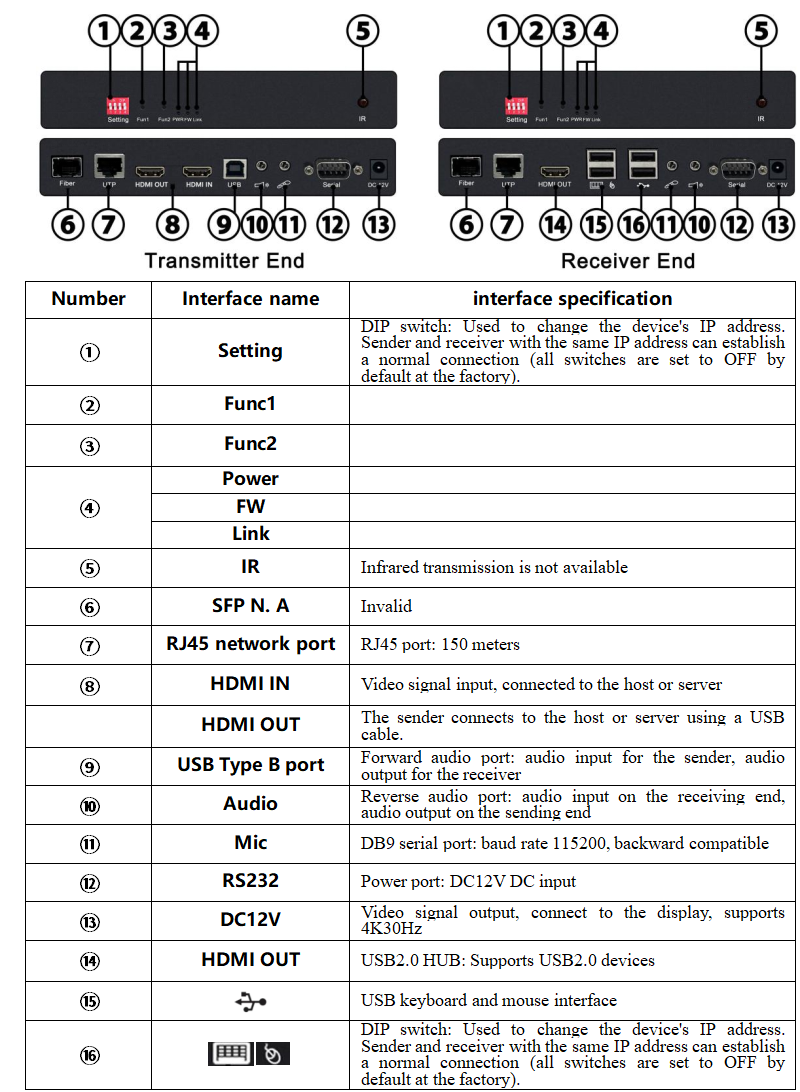

Interface Diagram

Functional Features

lAdopts gigabit digital encoding technology for clear, smooth images with low latency;

lLow latency

lIndependent two-way audio transmission；

lHDMIdigital audio and HDMI audio separation function;

lUSB 2.0 HUB function (supports USB devices such as U disks, printers, wireless keyboards and mice, touch screens, etc.);

lSignal transmission via RJ45 network port, extendable up to 150 meters;

lSupports 3840 x 2160@60Hz, YUV444, and is backward compatible with multiple conventional resolutions;

lHDR10、HDR10+

lLPCM up to 12 channels, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos

lPowerful design with 4 USB ports, meeting the usage needs of high-capacity USB devices；

lIP cascading support for distance-independent transmission;

lHot-swappable design for plug-and-play functionality.

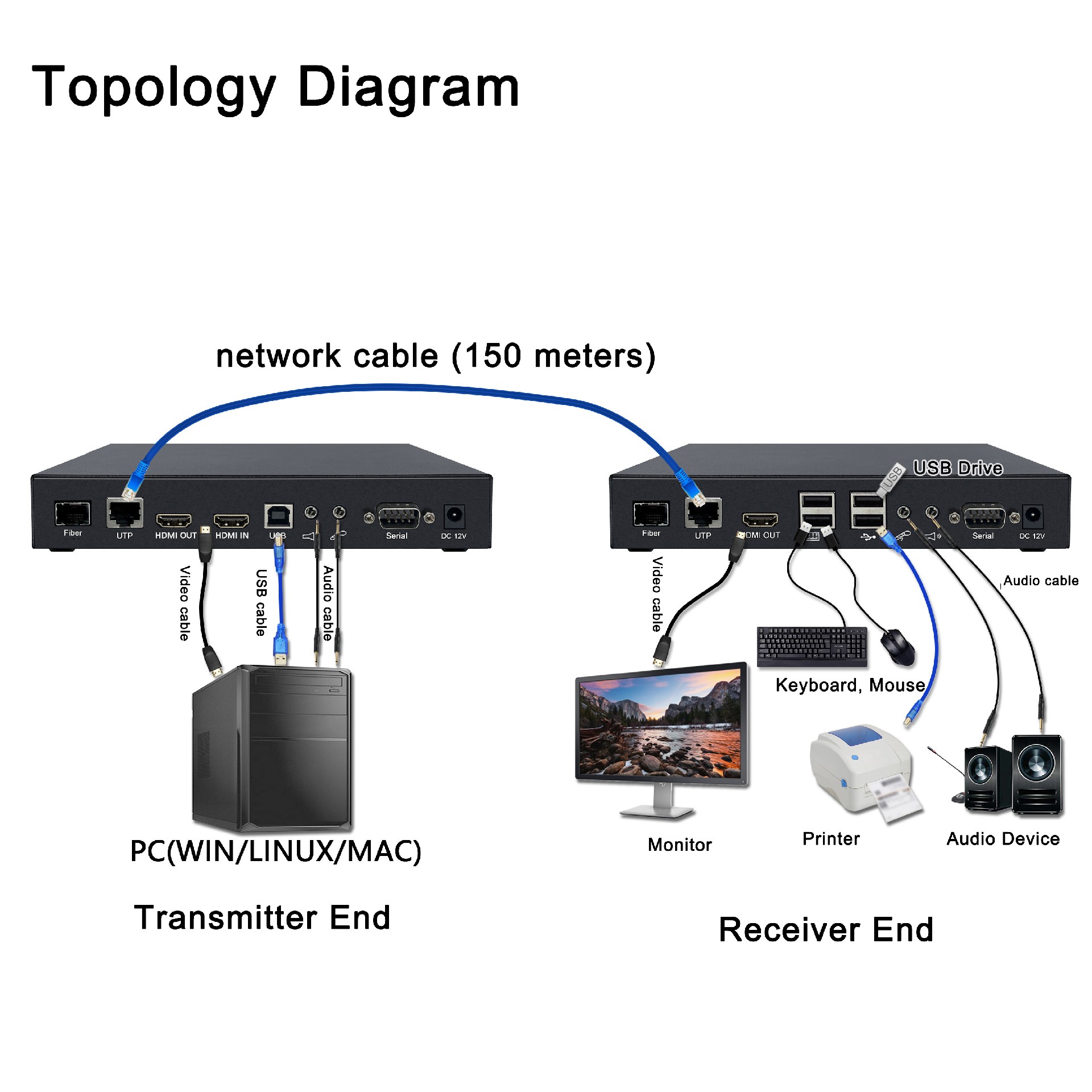

attended operation

1. First, verify that the dial code switch encoding on both the sending and receiving ends matches.

2. The transmitter connects to the controlled host via standard video cables, USB cables, and audio cables.

3. The receiver connects to monitors, audio devices, USB keyboards, mice, and other USB devices.

4. The transmitter and receiver are connected via network cable or fiber optic (with optional switch).

5. Connect the power supply of the transmitting end and the receiving end;

6. The sender and receiver display the connection status through indicator lights;

7. Supports hot-swapping, allowing you to add or remove controlled devices at any time without shutting down the KVM power.

8. Cross-platform support for mainstream operating systems including Windows, Linux, and Sun.

Note: Change the dial code and power off the device to restart it.

Assembly List

Thank you for using our products. Please open the packaging and first check the product packing list.

Product packing list：
