Product Overview:

4K KVM over IP Network Cable Extender is a KVM video signal extender that connects via network cable with IP as the main protocol. It adopts professional functions of over IP KVM solutions, allowing remote access to computer systems from a remote USB control unit through the internal network.

A remote power-on/off version can be selected as an option, which allows for physically turning the computer on and off.

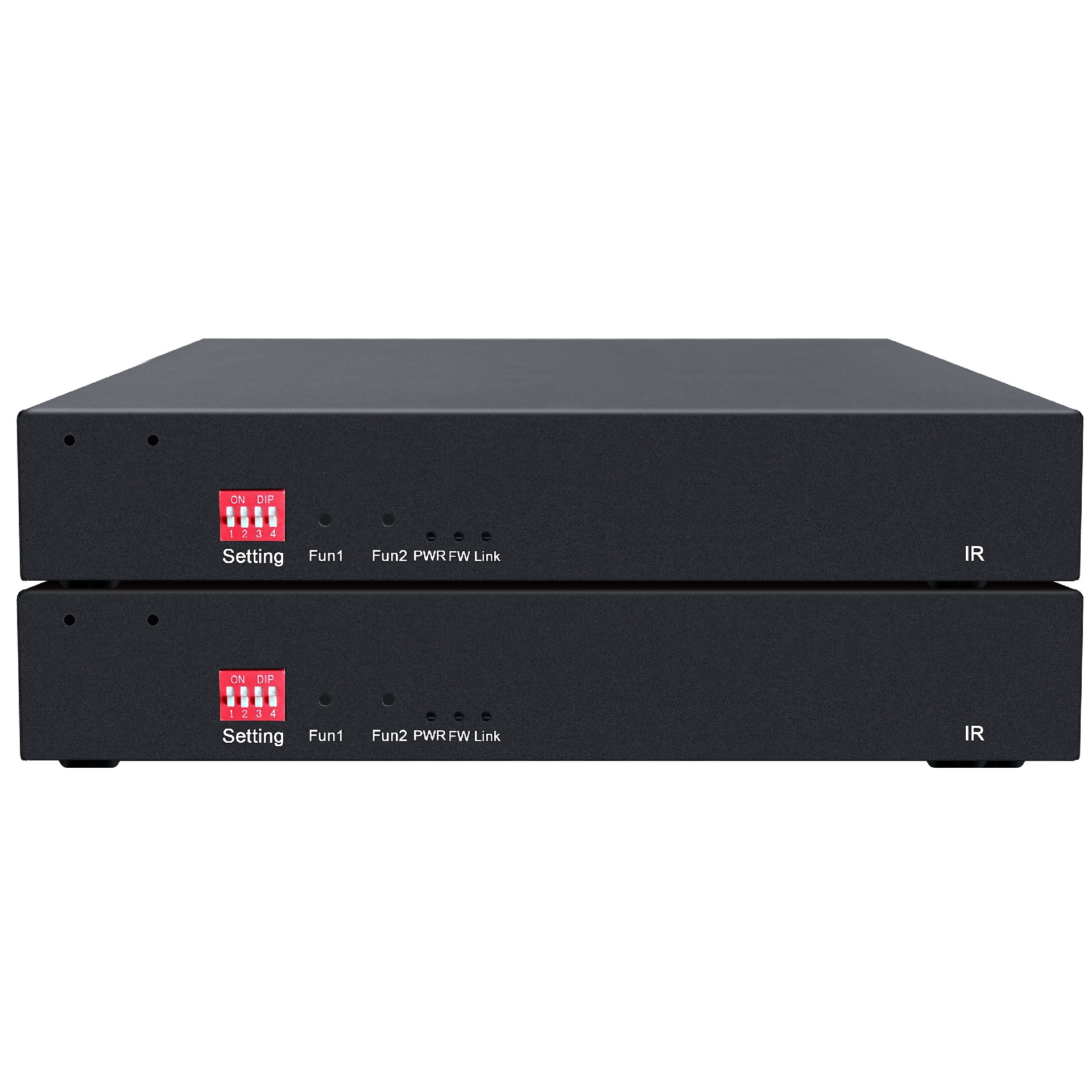

4K60Hz HDMIKVMNetwork Cable Encoder Extender

1. An integrated network ultra HD video KVM extender with HDMI video signal, USB keyboard and mouse control signal, USB2.0HUB function (USB devices such as USB drive, U KEY, printer, mobile hard disk, touch screen, etc.), RS232 interface signal, audio bidirectional signal, RJ45 network port, SFP optical port, and infrared IR iron shell body;

2. Using gigabit digital encoding technology, connect the device's local transmitter to the computer host's HDMI video signal and USB control signals, and connect them to the receiver of the extender via network cable. An optional fiber optic model is available, supporting extension up to 20 kilometers. Users can operate the computer at the receiver end.

3. Supports 4K x 2K image resolution (up to 3840 x 2160@60Hz), providing an excellent image display. At the same time, it offers high-quality video quality with ultra-low latency transmission. It can be widely applied in education, banking and securities, medical, confidential office and other fields.

Feature

lIt adopts gigabit digital encoding technology, resulting in clear and smooth images with minimal delay;；

lLow latency (2ms)

l Independent bidirectional audio transmission;

lHDMI Digital Audio and HDMI Audio Separation Function

lUSB 2.0 HUB function (USB devices such as USB flash drives, printers, wireless keyboards and mice, touchscreens, etc.)

lIt can extend up to 150 meters through RJ45 Ethernet port signal transmission.

lHDMI 2.1 Interface

lSupports 3840 x 2160@60Hz, YUV444, and is downward compatible with various common resolutions;

lDolby Vision、HDR10、HDR10+

lLPCM up to 12 channels, Dolby Digital Enhanced, Dolby TrueHD, DTS HD Main Audio, and Dolby Atmos

lSuper strong design with 4 USB interfaces, supporting the usage requirements of large-capacity USB devices；

lThrough IP cascading, distance can be ignored

lHot-swappable design, plug-and-play;

attended operation

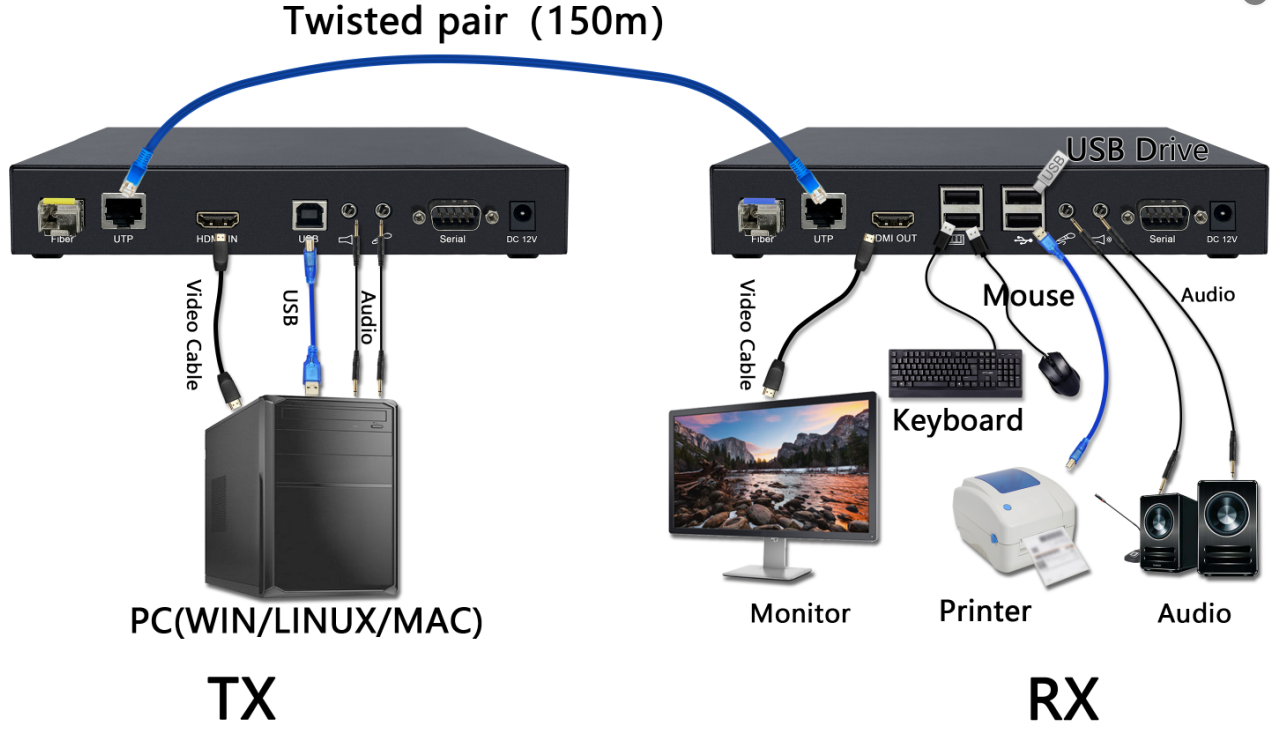

1. First, confirm that the encoding of the dip switches on the sender and receiver ends is consistent.

2. The sender connects the controlled host using standard video cables, USB cables, and audio cables;

3. The receiving end is connected to a display, audio devices, USB keyboard and mouse, and USB devices;

4. The sender and receiver are connected via network cables (can pass through a switch);

5. Connect the power supply of the transmitting end and the receiving end;；

6. The sender and receiver display the connection status through indicator lights;

7. Supports hot swapping, allowing controlled devices to be added or removed at any time without needing to power off via KVM.

8. Cross-platform support, compatible with mainstream operating systems such as Windows, Linux, and Sun.

Note: After changing the DIP switch settings, the device needs to be powered off and restarted.

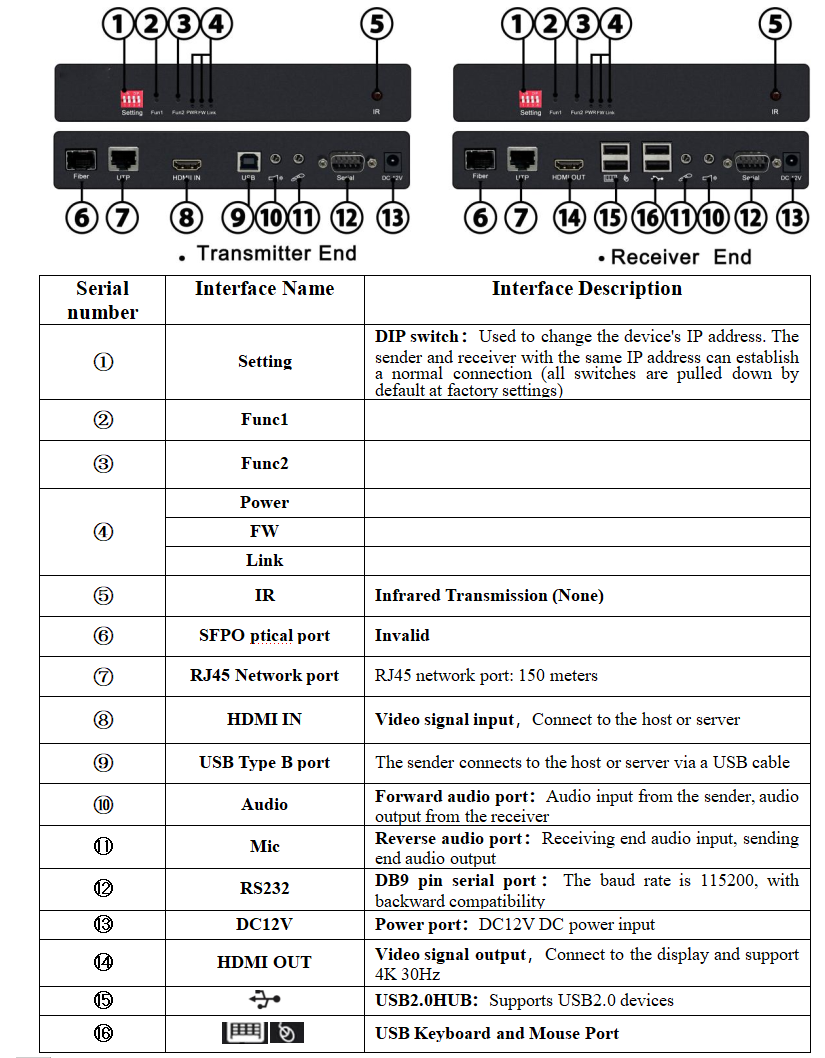

Assembly List

Thank you for using our company's products. When opening the package, please first check the product packing list.

Product Packing List:：
