Overview:

dual-mode DisplayPort video splitter enables one DisplayPort video input signal to be displayed simultaneously on four DisplayPort (or HDMI) output ports without distortion, and can support up to 3840 × 2160@60Hz Resolution, so it is widely used in various large screen display systems, exhibition halls, video conferences, command, and dispatching systems, etc.

Features

n 1 dual-mode DisplayPort video input, 2(4) dual-mode DisplayPort video output at the same time

n 4 dual-mode DisplayPort output, which can be connected to both DisplayPort sink and HDMI sink through a DisplayPort to HDMI dongle.

n comply with displayport1.2 specifications

n comply with hdmi1.4 specifications

n DisplayPort has a maximum video resolution of 3840 × 2160@60Hz

n support high refresh rate to 1920 × 1080@240Hz

n HDMI up to 3840 × 2160@30Hz

n HDCP compliant

n 4 S/PDIF digital audio (7.1 channel) output

n capable of driving 15m DisplayPort cable

Package Includes

1 x DisplayPort Splitter

1 x Power Adapter

1 x User’s Manual

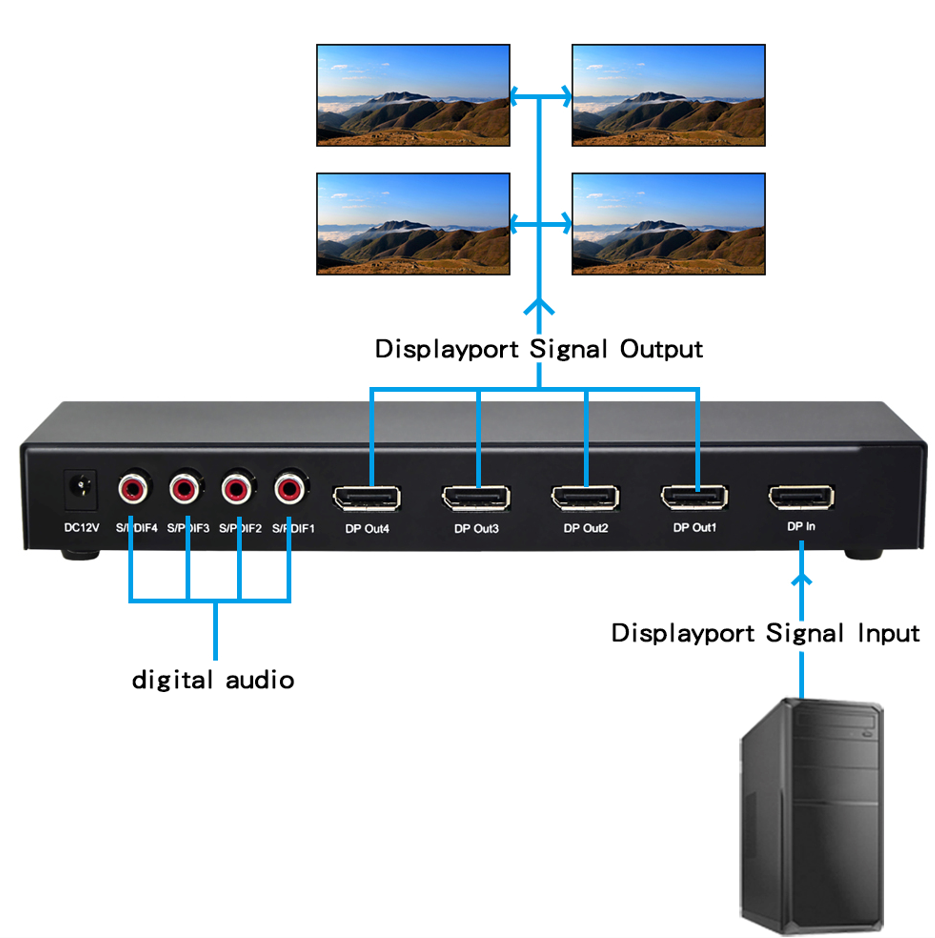

Connection Diagram

Specifications
