Overview:

The EX505DP USB Displayport over fiber KVM Extender integrates the latest technology and delivers HD Displayport video, USB and stereo audio signals up to 200m by using twisted pair;. With an easy cable installation supporting various signals, the KVM Extender is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations. A complete set of EX505DP including Transmitter (EX505DP_TX) and Receiver (EX505DP_RX).

Features

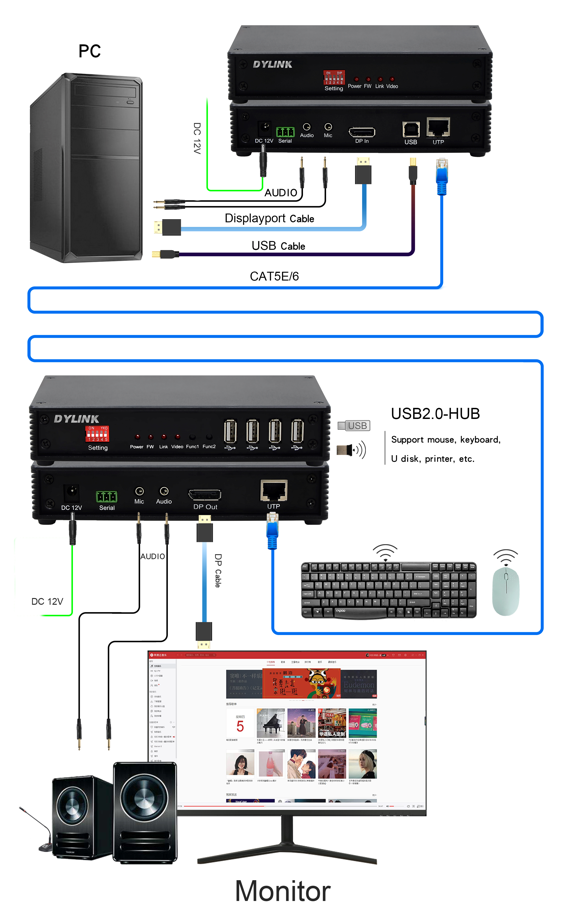

n Uses one twisted pair cable to connect the transmitter and receiver units

n Superior DP video quality: up to 3840*2160@30Hz

n Transparent USB2.0 – supports a wide range of USB devices include keyboard, mouse, mass storage devices and printers. It provides 4 USB ports on the receiver and 1 USB on the transmitter

n Supports individual 2-channel stereo audio, 1 LINEIN + 1 LINEOUT

n RS232 serial port – support connection to a serial terminal

n Easy to install – no software required - connecting cables to the devices is all it takes

n Plug and play

Package Includes

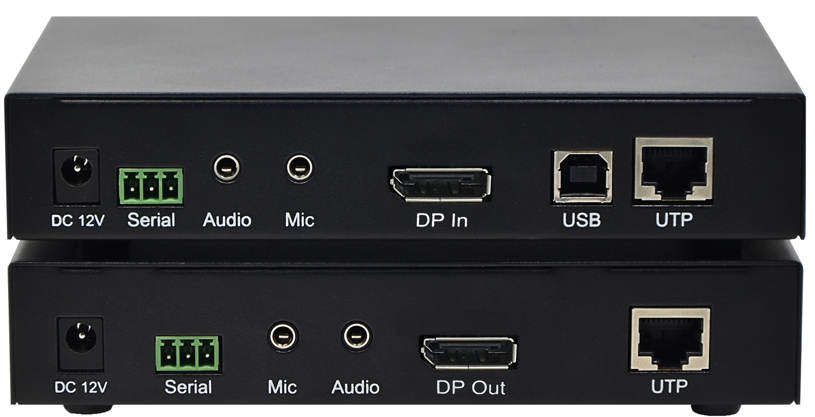

1 x EX505DP-TX

1 x EX505DP-RX

2 x Power Adapter

1 x Audio cable

1 x Displayport Cable

1 x USB Cable

Indicators and Function Buttons

Specifications
