VGA KVM Extender-200m

分类:VGAKVM Ethernet

描述:

OverviewThe EX1M22A VGA KVM Extender integrates the latest technology and delivers HD VGA video, USB and stereo audio signals up to 200m by using twisted pair cable. With an easy cable installation supporting various signals, the KVM Extender is ideal for applications where convenient remote access
全国热线

0755 86120002

简介 / Introduction

展示

Overview

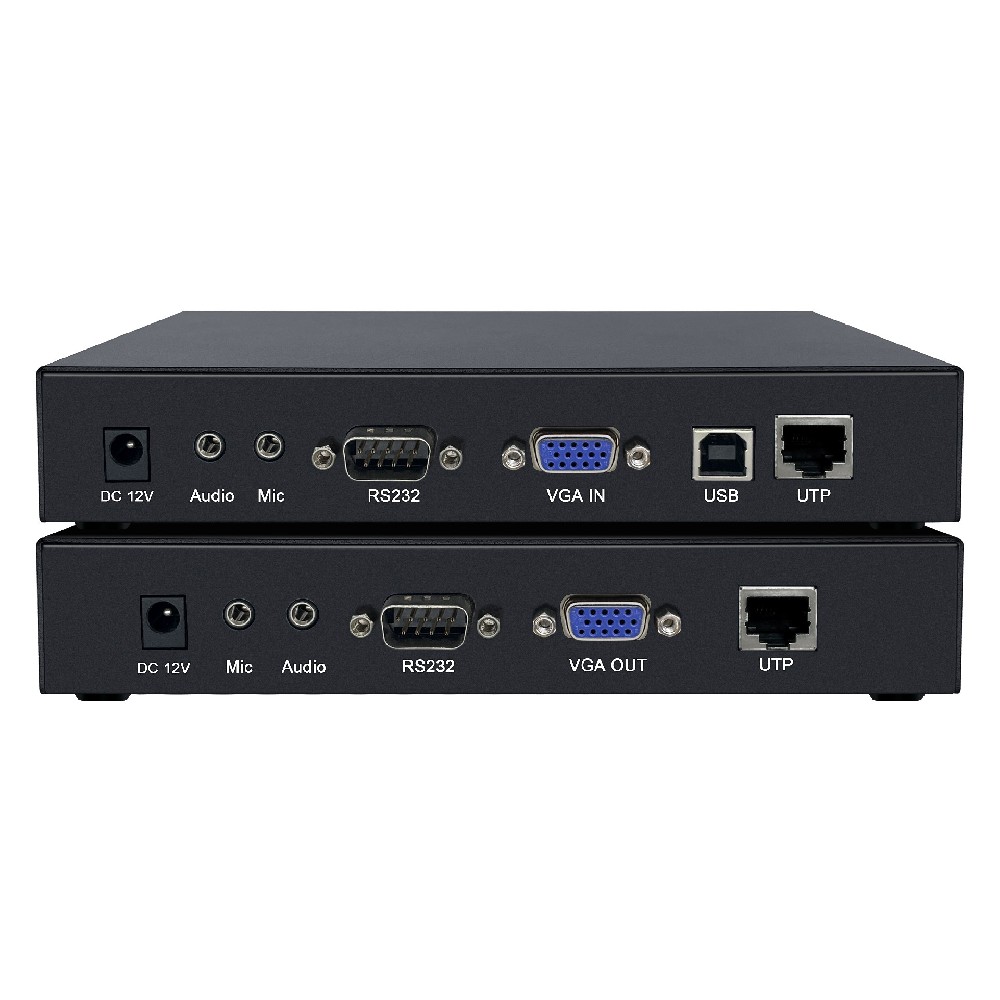

The EX1M22A VGA KVM Extender integrates the latest technology and delivers HD VGA video, USB and stereo audio signals up to 200m by using twisted pair cable. With an easy cable installation supporting various signals, the KVM Extender is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations. A complete set of EX1M22A including Transmitter (EX1M22A_TX) and Receiver (EX1M22A_RX).

Features

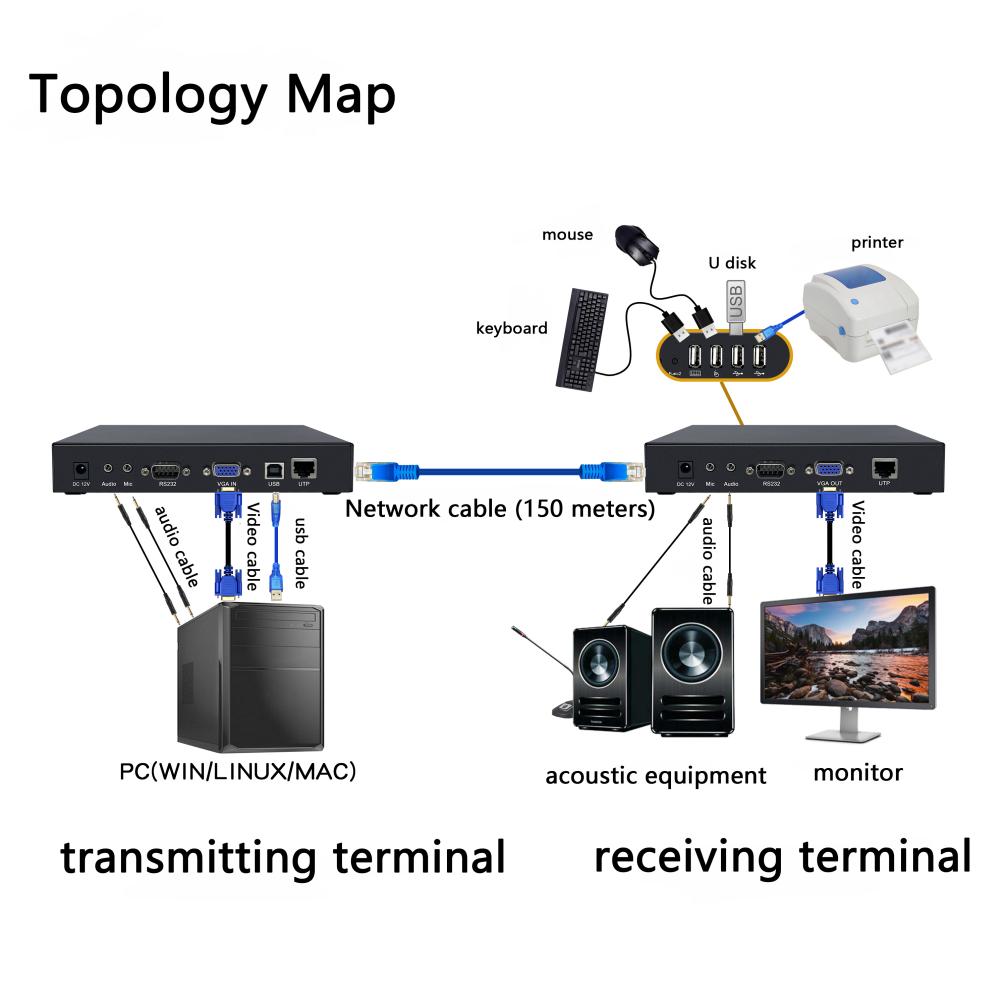

Uses one twisted pair cable to connect the transmitter and receiver units

Superior VGA video quality: up to 1920*1080@60Hz

Transparent USB2.0 – supports a wide range of USB devices include keyboard, mouse, mass storage devices and printers. It provides 4 USB ports on the receiver and 1 USB on the transmitter

Supports individual 2-channel stereo audio, 1 LINEIN + 1 LINEOUT

RS232 serial port – support connection to a serial terminal

Easy to install – no software required - connecting cables to the devices is all it takes

Plug and play

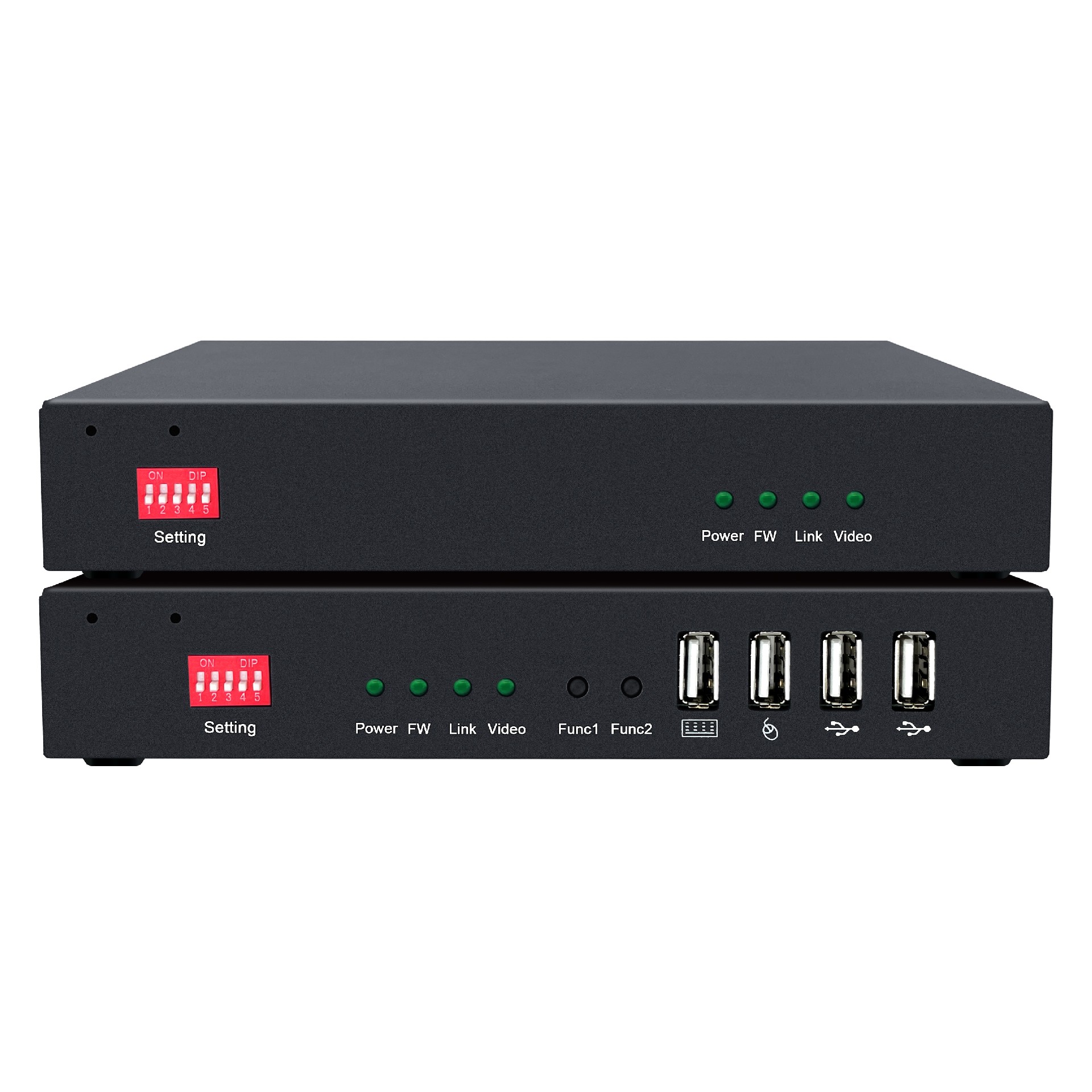

Indicators and Function Buttons

Indicators

Describe

POWER

Steady means the power supply is connected

FW

Blinking means the device is working properly

LINK

Steady on means the connection is successful

Video

Steady on means the video display is normal

Func1

Confirm button

Func2

menu button

The TX writes the EDID: The TX is connected to the monitor and powered on, Press and hold the EDID button for 3 seconds

Specifications

EX1M22A

HDMI input

1 (EX1M22A_TX)

HDMI output

1 (EX1M22A_RX)

RJ45

2

USB Type B

1(EX1M22A_TX)

USB Type A

4(EX1M22A_RX)

Resolution

1920*1080@60Hz

Connecting cable

twisted pair

Working Temperature

0  70

Storage Temperature

-20  85

Humidity

0  80

Material

Metal

Weight

1650g

Power

9V-12VDC, 12W

Dimension

165*106*30mm

Package Dimension

245 x 195 x 116mm



Package Includes

1 x EX1M22A-TX

1 x EX1M22A-RX

2 x Power Adapter

1 x Audio cable

1 x VGA Cable

1 x USB Cable
