Product summary:

4K KVM over IP HD video encoder is a KVM video signal extender mainly connected by IP through the network cable. Using the professional functionality of over IP KVM solutions to access computer systems from the remote USB control transmitter via an internal network.

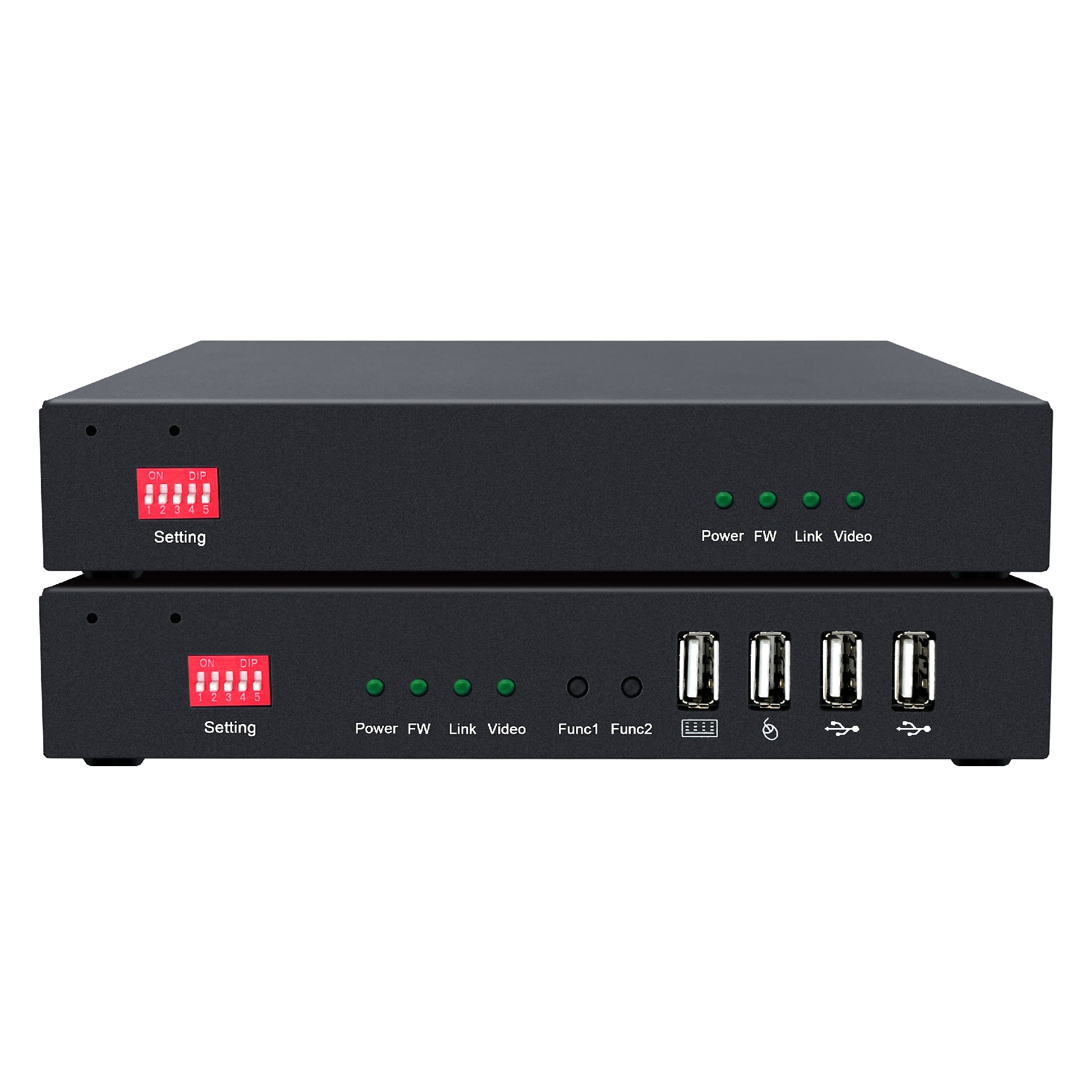

DVIKVM HD video encoder

1. Integrate DVI video signal, USB keyboard and mouse control signal, USB2.0HUB function (U disk, UKEY, printer, mobile hard disk, touch screen and other USB devices), RS232 interface signal, audio bidirectional signal, RJ 45 network port, iron shell body in one of the network ultra clear video KVM extender;

2. Using Gigabit digital coding technology, the local transmitting end of the device is connected to the DVI video signal and USB control signal of the computer host, and connected to the receiving end of the extender through the network cable, which can be extended by 150 meters, and the user can operate the computer at the receiving end.

3. Support 4K x 2K image resolution (up to 3840 x 2160), provide super image display picture. At the same time, with a very low delay transmission capacity to provide high quality video quality. It can be widely used in education, banking and securities, medical care, confidential office and other fields.

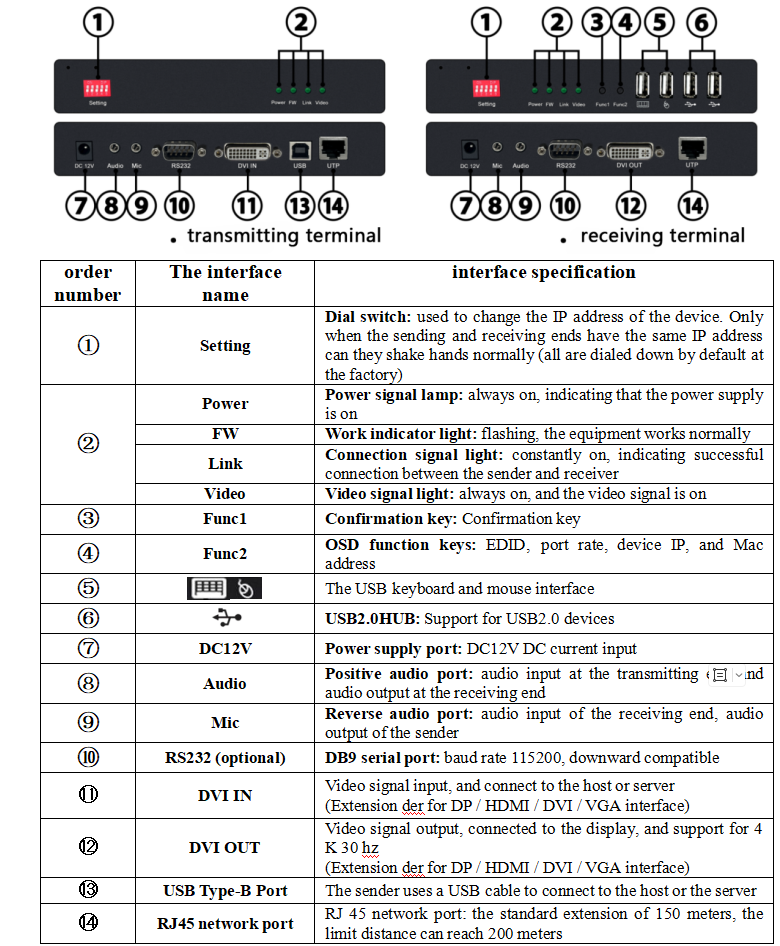

Interface diagram

 Functional characteristics

l Using Gigabit digital encoding technology, the image is clear and smooth with small delay;

l Independent two-way audio transmission;

l USB 2.0 HUB function (U disk, printer, wireless key and mouse, touch screen and other USB devices);

l Through the RJ 45 network port signal transmission, it can be extended by 150 meters;

l Hot-plug design, plug and play;

l Support 3840 x 2160@30Hz, and downward compatible with a variety of conventional resolutions;

l Super 4 USB interface design, support large capacity USB equipment use requirements;

l It can be connected through switches or directly

l It can be mixed and matched, and the sending end can be connected with the receiving end of different video signal interfaces

Assembly list

Thank you for using our products. To open the package, please clear the product packing list first

Product packing detail list:

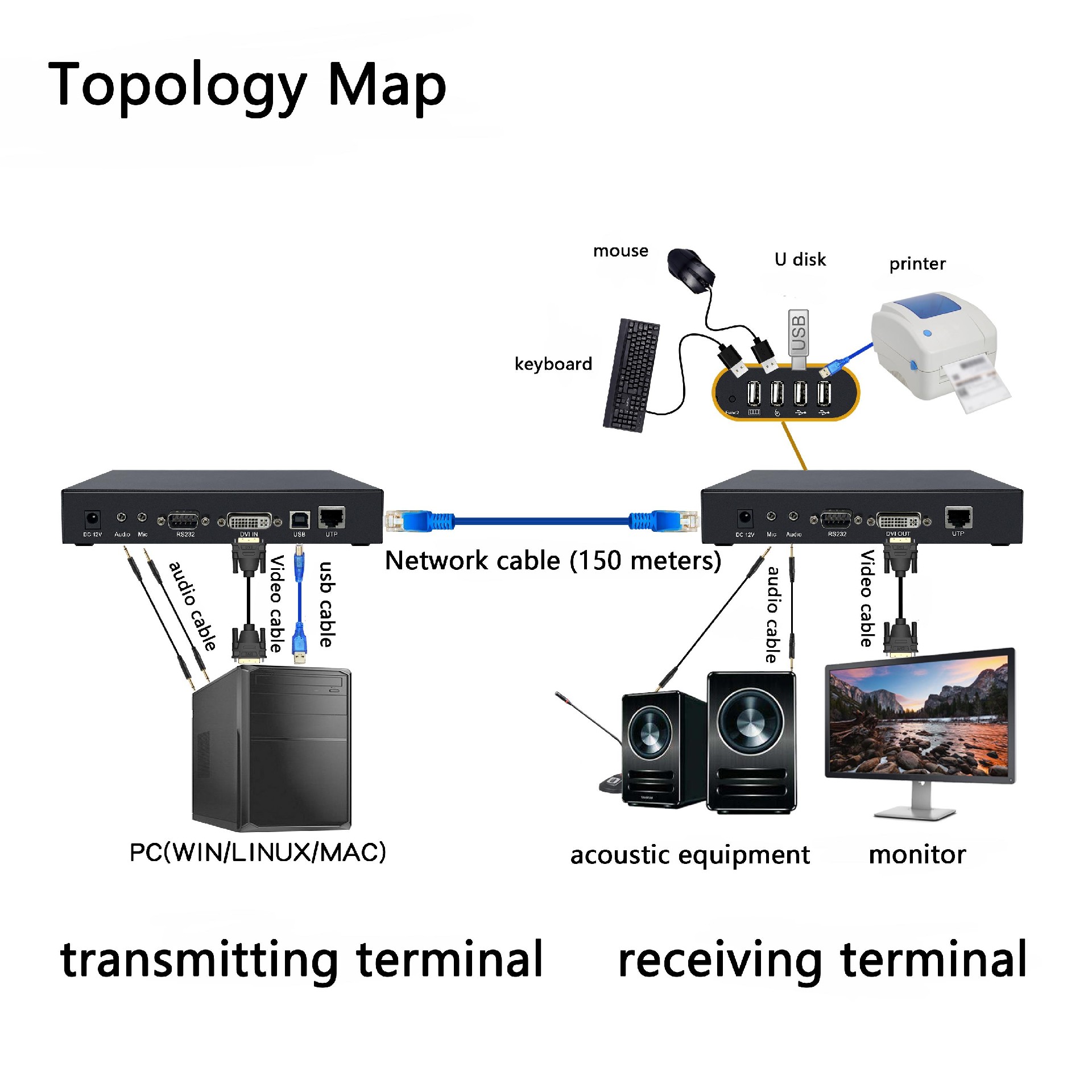

 Attended operation

1. First, confirm whether the coding of the dial switch at the sending end and the receiving end is consistent;

2. The sending end uses standard video cable, USB cable and audio cable to connect the controlled host;

3. The receiving end connects the monitor, audio equipment, USB keyboard, mouse and USB equipment;

4. Between the sending terminal and the receiving terminal through the network cable connection (through the switch);

5. Connect the power supply of the sending end and the receiving end;

6. The sending end and the receiving end display the connection status through the indicator light;

7. Support hot plug, you can add or remove the controlled equipment at any time without KVM power shutdown;

Cross-platform support with mainstream operating systems such as Windows, Linux and Sun.

Note: After changing the dial code, the power off needs to restart the equipment

Product Parameter
