Product Overview

The 4K KVM over IP HD video encoder is a KVM video signal extender primarily based on IP technology and connected via network cables. It utilizes professional over IP KVM functionality, enabling remote access to the computer system through a USB control transmitter via the internal network.

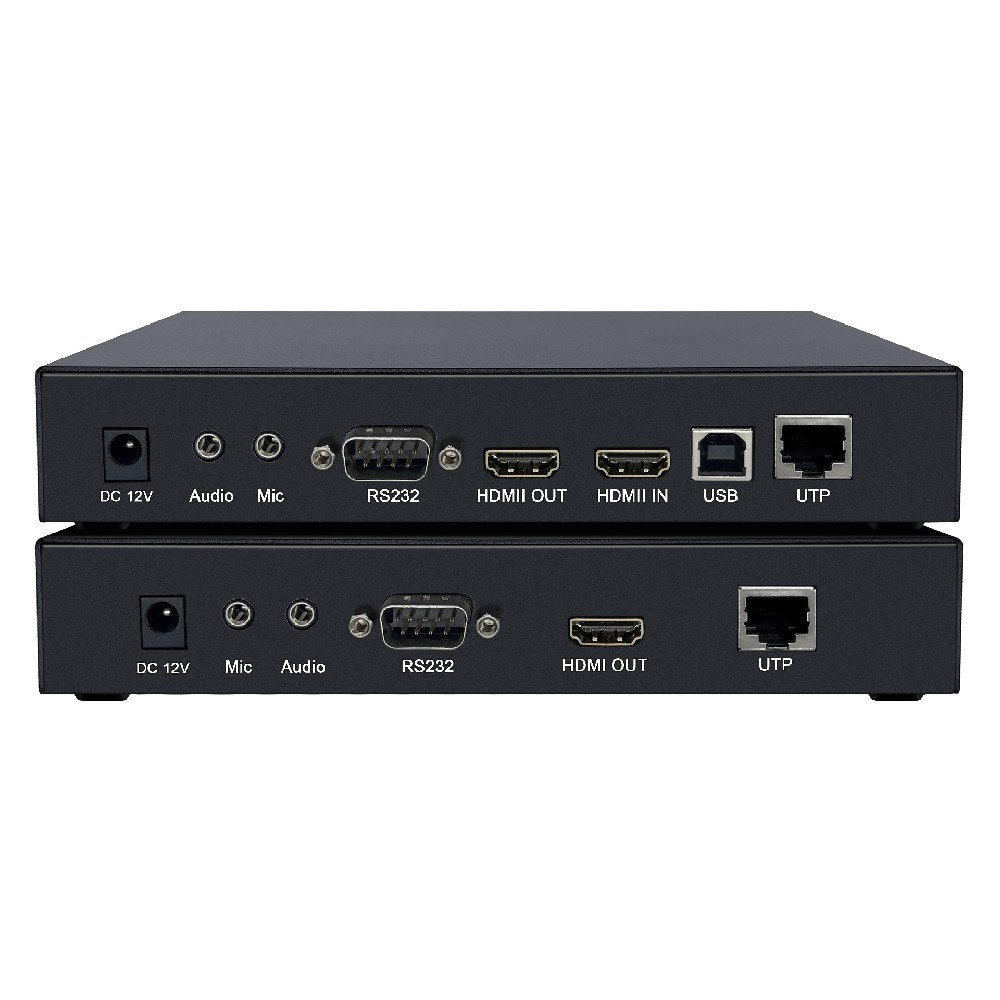

4K HD Video Extender

1. A network ultra-high-definition video KVM extender that integrates HDMI video signals, USB keyboard and mouse control signals, USB 2.0 HUB functions (such as USB flash drives, U keys, printers, external hard drives, touchscreens), RS232 interface signals, bidirectional audio signals, and an RJ45 network port into an iron-cased body.

2. Using Gigabit digital encoding technology, the device's local transmitter connects to the computer's HDMI video signal and USB control signals via a network cable, extending up to 150 meters. The receiver allows users to operate the computer.

3. Supports 4K x 2K resolution (up to 3840 x 2160) for exceptional display performance. It delivers high-quality video with ultra-low latency, making it ideal for education, banking, healthcare, and confidential office environments.

4. The system employs a 1625 encoding scheme with multi-receiver capability, enabling a single transmitter to connect to multiple receivers via switches for video synchronization. It also features USB2.0 host functionality, allowing users to control USB2.0 signals through front buttons on any receiver.

Functional Features

l The gigabit digital coding technology is adopted to make the image clear and smooth with small delay;；

l Independent audio transmission;

l HDMI digital audio and HDMI audio separation

l USB 2.0 HUB capability (supporting USB devices such as USB flash drives, printers, wireless keyboards/mice, and touchscreens);

l The RJ45 port enables signal transmission up to 150 meters.

l Hot-swappable design, plug and play;

l Supports 3840 x 2160@30Hz and backward compatibility with various standard resolutions.

l Featuring four powerful USB ports, it supports high-capacity USB devices.

l You can connect through the switch or directly

l Supports mixing. The sender can connect to multiple receivers with different video signal interfaces simultaneously.

Assembly List

Thank you for using our products. Before opening the packaging, please check the product packing list.

Product packing list:

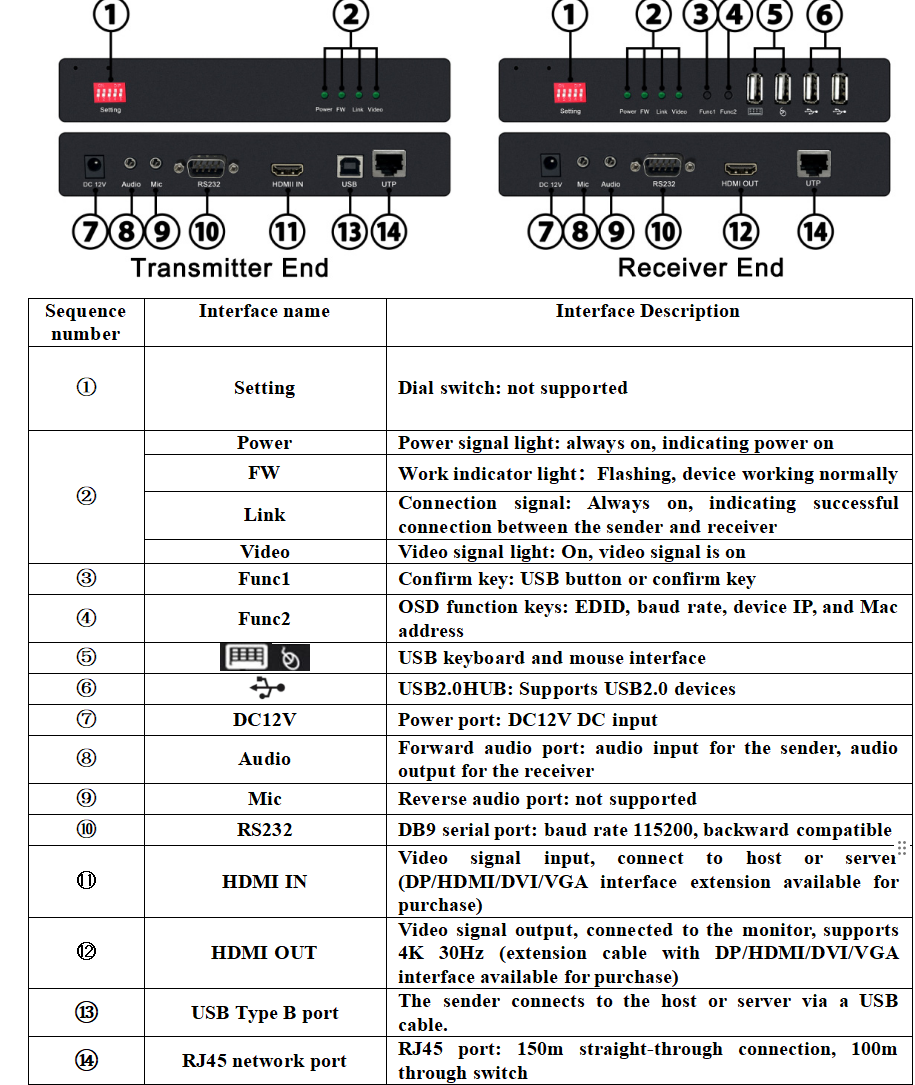

attended operation

1. The transmitter connects to the controlled host via standard HDMI video cables, serial ports, USB cables, and audio microphone wiring.；

2. he receiver connects to HDMI monitors, audio devices, USB keyboards/mice, and other USB peripherals.；

3. The sender and receiver are connected to the switch via a network cable (using a Gigabit switch).

4. The sender connects to the controlled host, and the receiver connects to the monitor and USB devices.

5. Wait for the four indicator lights to display normally

6. The receiver can take over USB functionality to this device via the fan1 interface.

7. Due to varying display sizes and resolutions, all receivers must share the EDID of a single monitor. If any receiver fails to display, the EDID can be switched to the receiver with the button via the update EDID function in Fanc2 to ensure proper display.

8. It is recommended to use the same model of monitors for multiple receivers to avoid EDID incompatibility between different monitors.

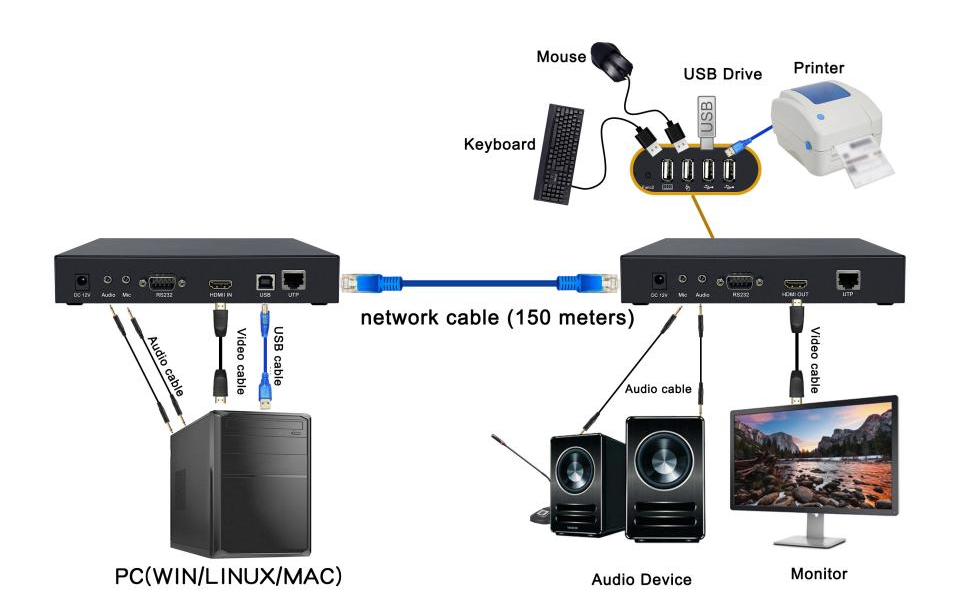

Connection Diagram

a. One-on-one

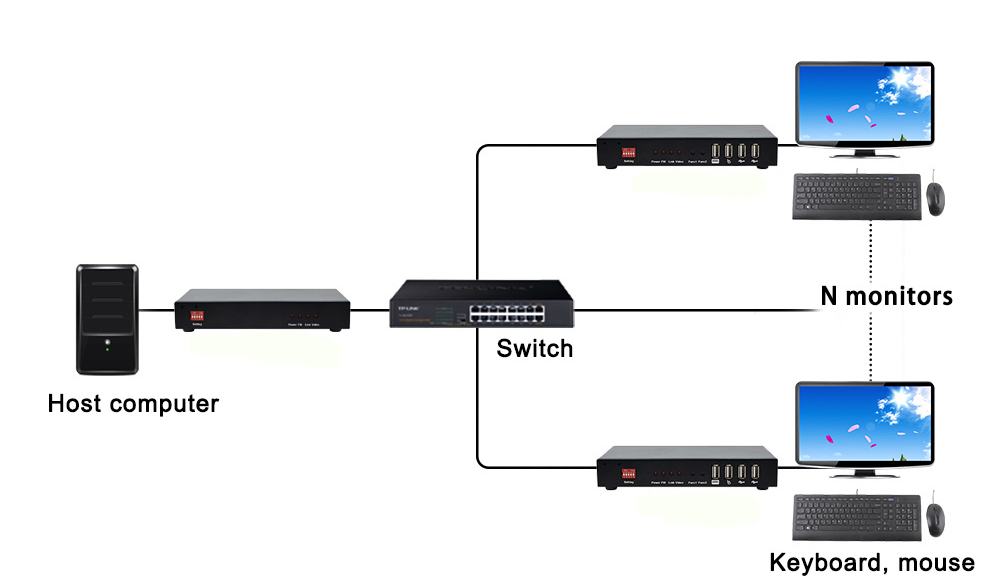

a. one-to-many
