Product Introduction：

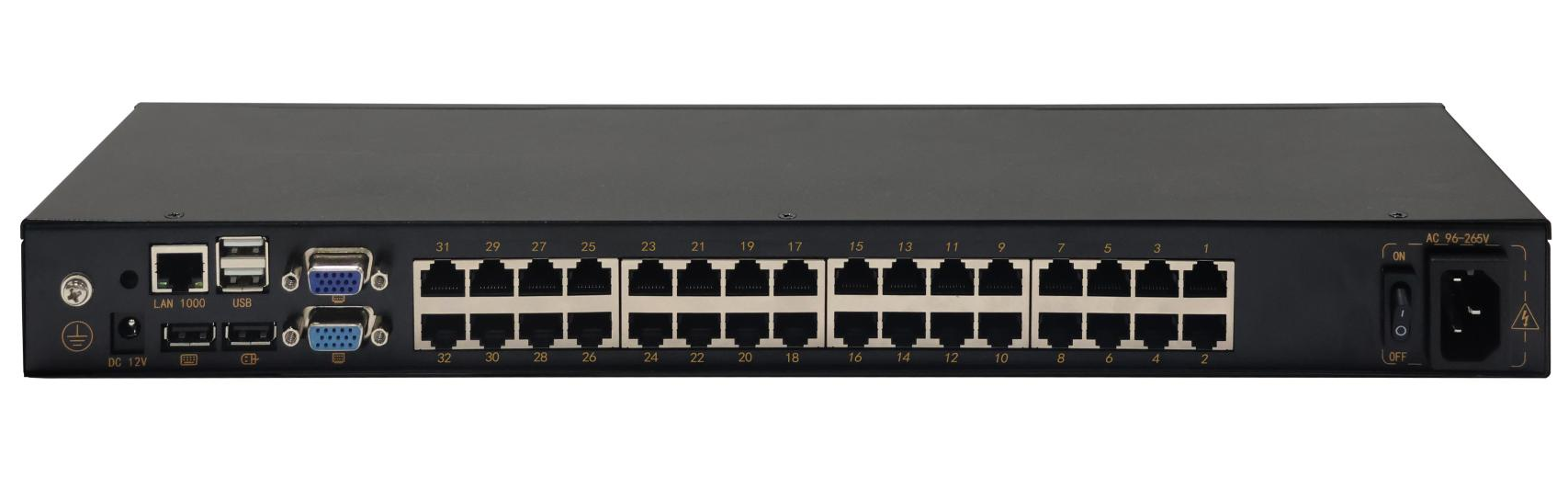

DY-SW1032CIIt is a rack-mounted 32-port KVM switch for server cabinets. It features high-definition image quality without distortion, snow noise, or ghosting. The device has an additional remote IP control port built into its body, allowing remote control. It is designed for rack installation, which is simple to install and easy to operate. The body is aesthetically pleasing and sturdy, making it a professional choice.

The KVM switch has characteristics such as improved efficiency, easy use, convenient management, cost savings, remote management, and environmental protection and energy saving. Its height is standard 1U, complying with the 19-inch rack structure, saving over 85% of cabinet space.

Product Features

l Supports local control and 1000M Internet IP remote control

l Support Microsoft IntelliMouse （Pro）， Optical, Mouse Man，Wheel Mouse，Scroll Point，Serial Mouse etc。

l When switching computers, the original keyboard working status is automatically recorded and stored.

l Support iMAC powerMAC and sun Micro systems to the USB port

l Complete DDC2B function, can detect screen model without switching computers

l Auto-scan function, which can enable KVM to automatically scan computers one by one.

l Online support software upgrade port

l Excellent video effects. With a bandwidth of 200MHz, it supports a maximum resolution of 2048*1536.

l Dual-interface PS/2/USB Keyboard and Mouse Switcher for Connecting and Controlling Computers

l It can support cascading mode, allowing up to 1024 computers to be connected for unified operation

l Supports external authentication servers and unified management of user permissions

l Supports security logs, recording device switch events, user logins, logouts, and network activities

l Supports SYSLOG event logs, which can be directly directed to a SYSLOG server

l The system log supports the SNMP protocol

l Supports serial device management. The serial adapter supports remote network and SSH protocol access.

l Supports virtual media functions and audio support

l Can be integrated with PDU remote power management solutions to provide a simple user interface for remote power control

l Support browser-based operations on KVM and connection to the target server it is connected to.

l Supports local control port configuration and remote browser configuration for KVM

l It can be integrated with SVC3000 management software and IV3 centralized control platform

l Supports multiple security authentication mechanisms：HikAuth、RSA、USBKEY、radie、LDAP、TACACS+

l Advanced security mechanisms include password protection and advanced encryption technologies, with 128-bit AES data encryption supporting IP access control list filtering functions

l Humanized design allows one person to install and uninstall it, improving the efficiency of administrators

l The CAT5 module supports customized PS2+USB interfaces, HDMI interfaces, and VGA interfaces.

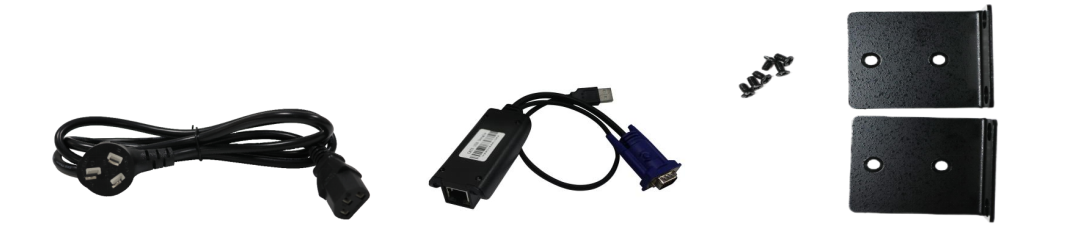

Product Accessories

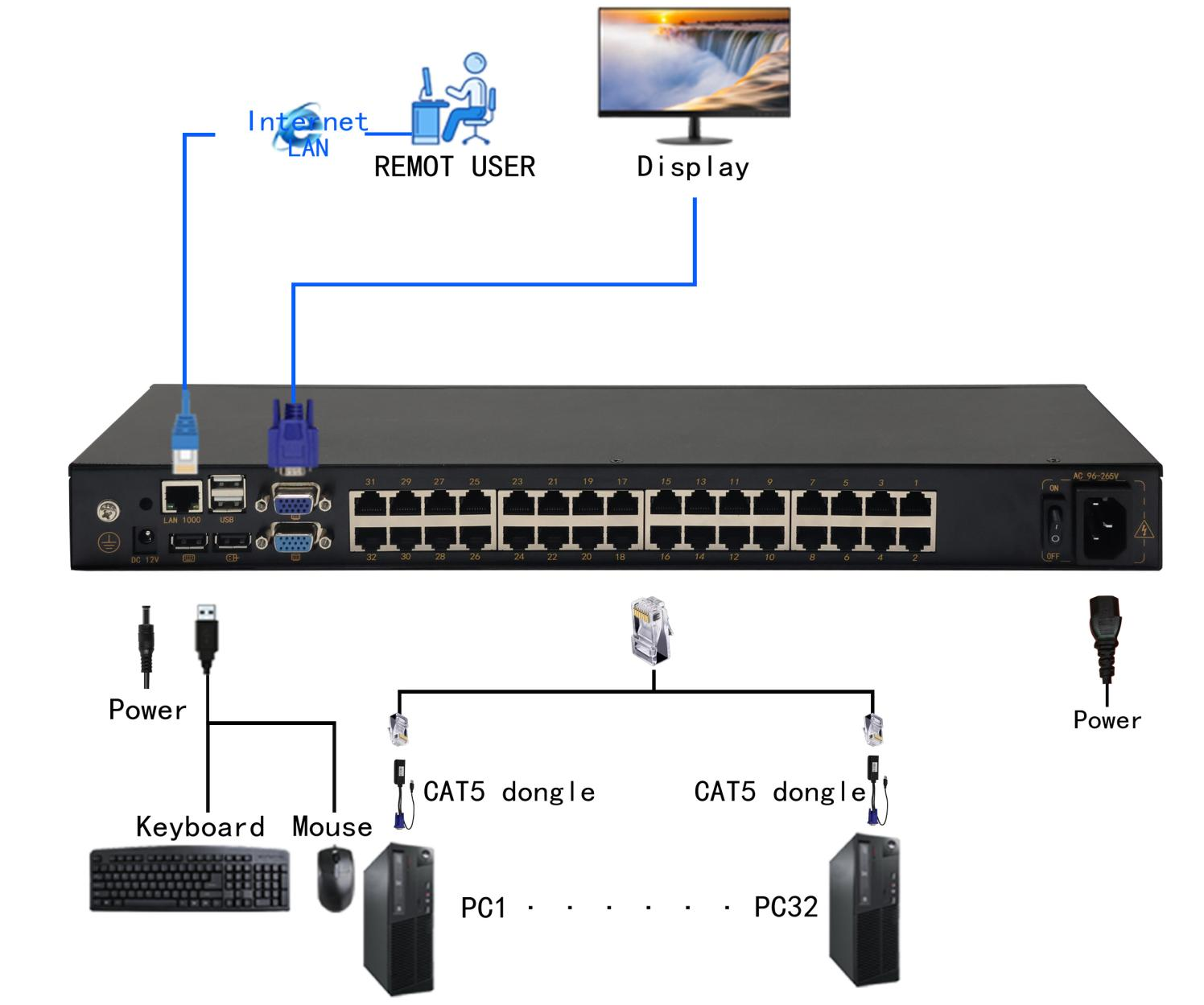

Product Connection Schematic Diagram

Specification Parameters
