Product Introduction：

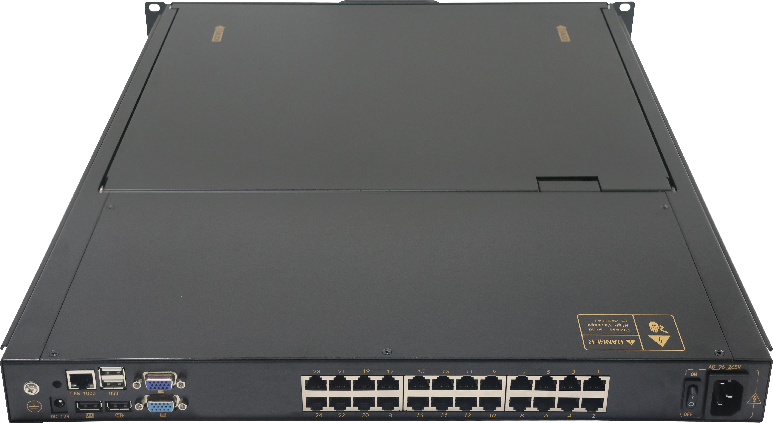

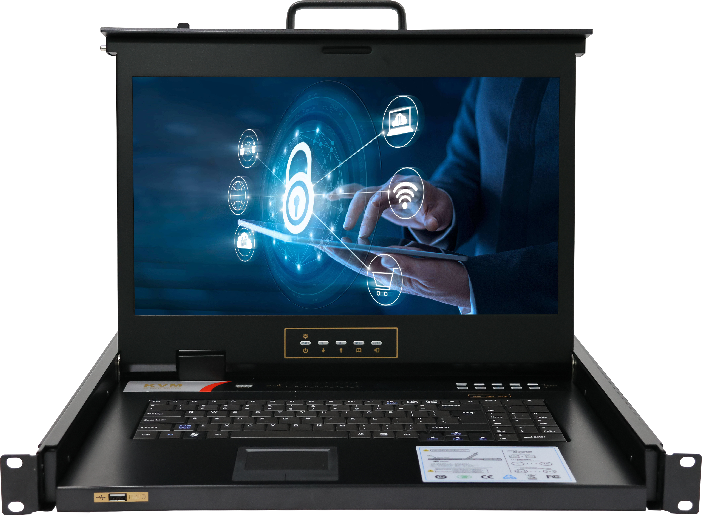

DY-SW1724CHIIt is a rack-mounted 17.3-inch screen 24-port LCD KVM switch. It features high-definition image quality without distortion, snow noise, or ghosting. The device has an additional remote IP control port built into its body, allowing for remote control. It supports rack installation, which is easy to install and operate. The body is aesthetically pleasing and sturdy, making it a professional choice.

Product Features

l Integrated 17.3" LED Screen / Keyboard / Mouse / Switcher All-in-One Machine

l LCD liquid crystal display adjustment function, rail with self-locking device

l Supports local control and 1000M Internet IP remote control

l Pull-out installation design, which can adjust the length to adapt to various cabinet spaces

l Support Microsoft IntelliMouse （Pro）， Optical, Mouse Man,Wheel Mouse，Scroll Point，Serial Mouse etc。

l When switching computers, the original keyboard working status is automatically recorded and stored.

l Support iMAC powerMAC and sun Micro systems to the USB port

l Complete DDC2B function, can detect screen model even without switching computers

l The Auto-scan function can enable KVM to automatically scan computers one by one.

l Online support software upgrade port

l Excellent video effects, with a maximum resolution of 1920*1080 60HZ

l Dual-interface PS/2/USB Keyboard and Mouse Switcher for Connecting and Controlling Computers

l KVM Front USB Port, Supports Wired & Wireless Mouse

l Cascade mode can be implemented, allowing up to 1024 computers to be connected for unified operation.

l Supports external authentication servers and unified management of user permissions

l Supports security logs to record device switch events, user logins, logouts, and network activities

l Supports SYSLOG event logs and can directly point to a SYSLOG server

l The system log supports the SNMP protocol

l Supports serial device management. Serial adapters support remote network and SSH protocol access.

l Supports virtual media functions and audio support

l Can be integrated with PDU remote power management solutions to provide a simple user interface for remote power control

l Support browser-based KVM operations and connection to the target server。

l Supports local control port configuration and remote browser configuration for KVM

l It can be integrated with SVC3000 management software and IV3 centralized control platform

l Supports multiple security authentication mechanisms：HikAuth、RSA、USBKEY、radie、LDAP、TACACS+

l Advanced security mechanisms include password protection and advanced encryption technologies, with 128-bit AES data encryption supporting IP access control list filtering functionality

l Humanized design allows one person to install and uninstall it, improving the efficiency of administrators.

l This series of KVM switchers supports original server architectures from Inspur, Dahua, Huawei, Sugon, HP, Dell, Lenovo, and various X86 and ARM industrial control computers such as Advantech andYansheng. They are compatible with multiple operating systems including Kylin, Android, Windows XP, Linux, and Ubuntu.

l The CAT5 module supports customized PS2+USB interfaces, HDMI&VGA interfaces

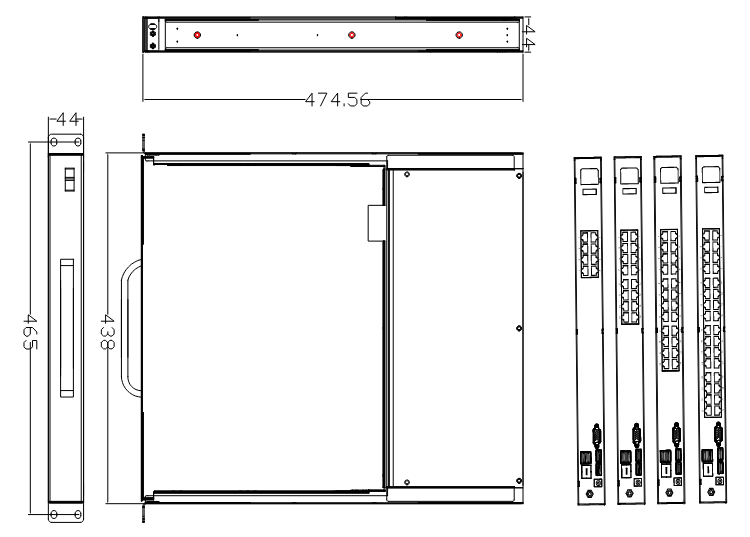

Product dimensions

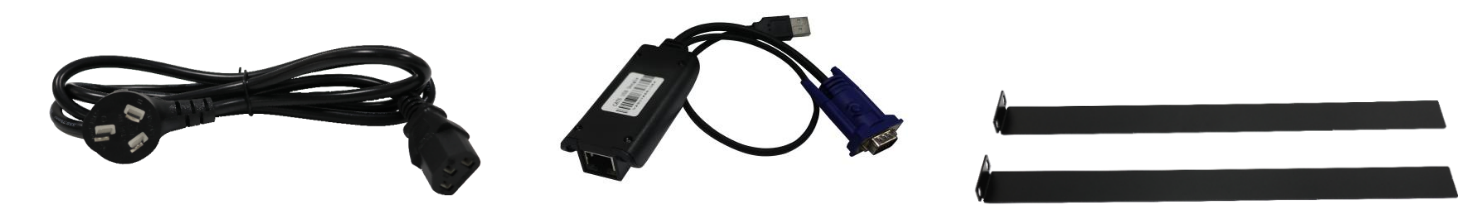

Product Accessories

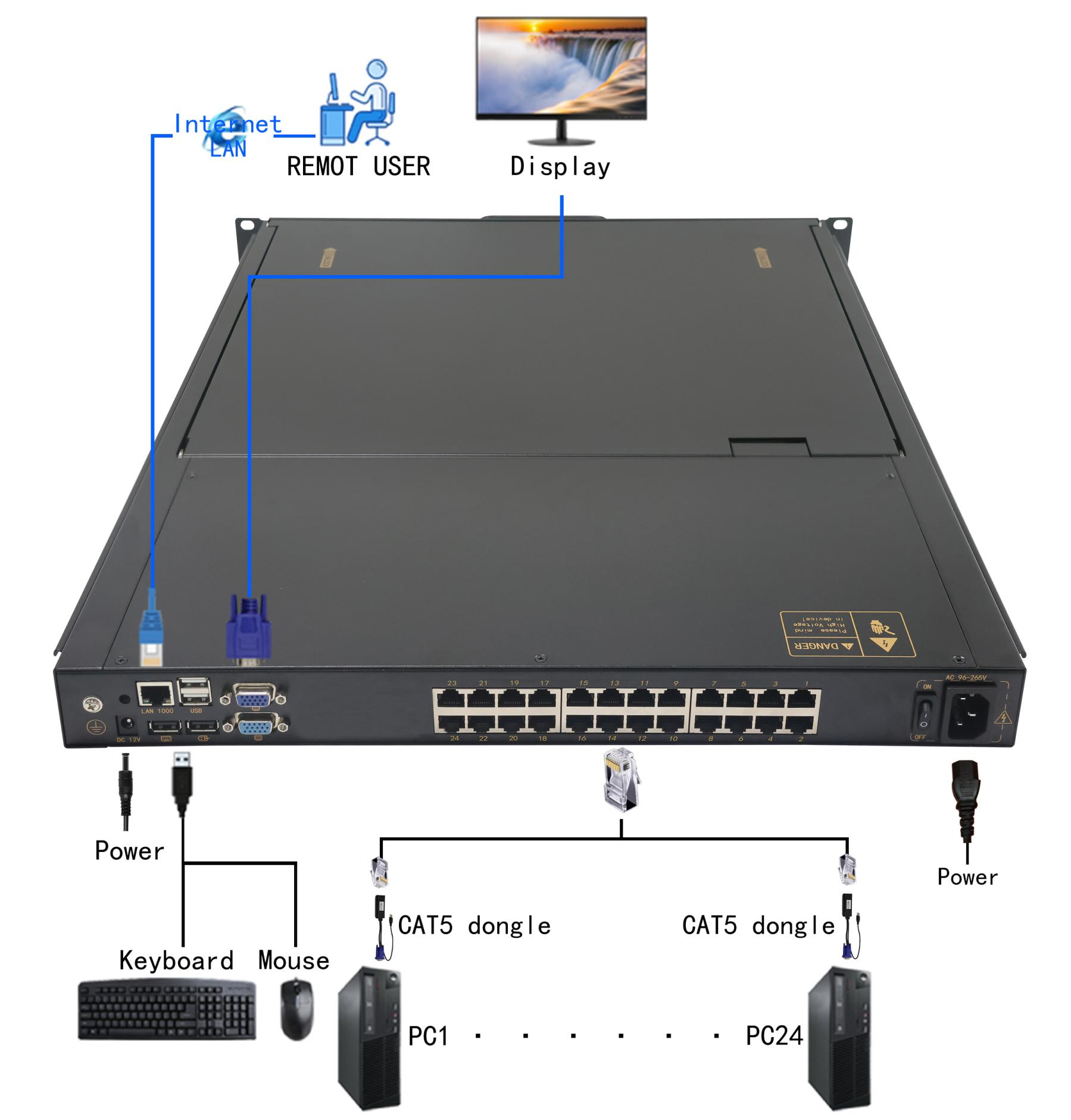

Product Connection Schematic Diagram

Specification Parameters
