Product Introduction:

DY-SW1708AHIt is a rack-mounted 17.3-inch screen 8-port LCD KVM switch. It features high-definition image quality without distortion, snow, or ghosting. The device has an additional local control port built into its body, allowing the connection of a separate keyboard, mouse, and monitor. It supports rack installation, which is easy to install and operate. The body is aesthetically pleasing and sturdy, making it a professional choice.

product features

l Integrated 17.3" LED Screen, Keyboard, Mouse, and Switcher

l Adjustment Function of LED LCD Screen with Self-locking Device on Guide Rail

l The pull-out installation design allows length adjustment to fit various cabinet spaces.

l support Microsoft IntelliMouse （Pro）， Optical, Mouse Man。

l Wheel Mouse，Scroll Point，Serial Mouse etc.。

l When you switch computers, the keyboard's previous state is automatically saved.

l The Hot-key feature provides more convenient management operations.

l The Auto-scan feature enables KVM to automatically scan each computer.。

l （Set up auto-scan through the OSD control function table for easier management）

l Excellent video quality, with a maximum resolution of 1920*1080 at 60Hz

l Dual interface PS/2/USB keyboard and mouse switcher for computer connection control

l Complete DDC2B functionality detects screen models without switching computers

l Multiple devices can be cascaded, with 8 ports supporting 128 computers for unified operation

l User-friendly design, one-person installation and removal, improving administrator efficiency

l Compatible with servers and industrial PCs from various brands in the server room, including IBM, DELL, HP, SUN, Lenovo, Advantech, and EVOC.

l Compatible with Microsoft, Linux, Unix, and other operating systems

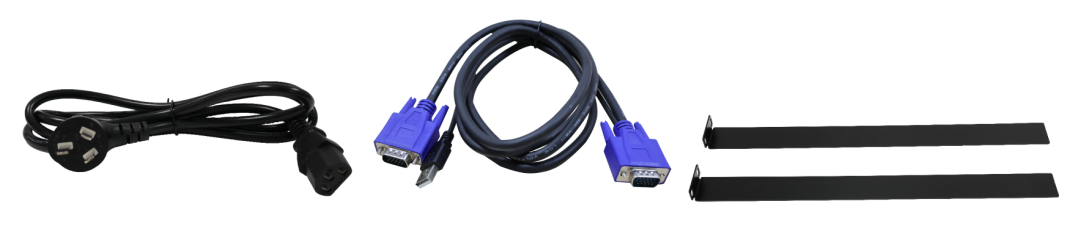

Product Accessories

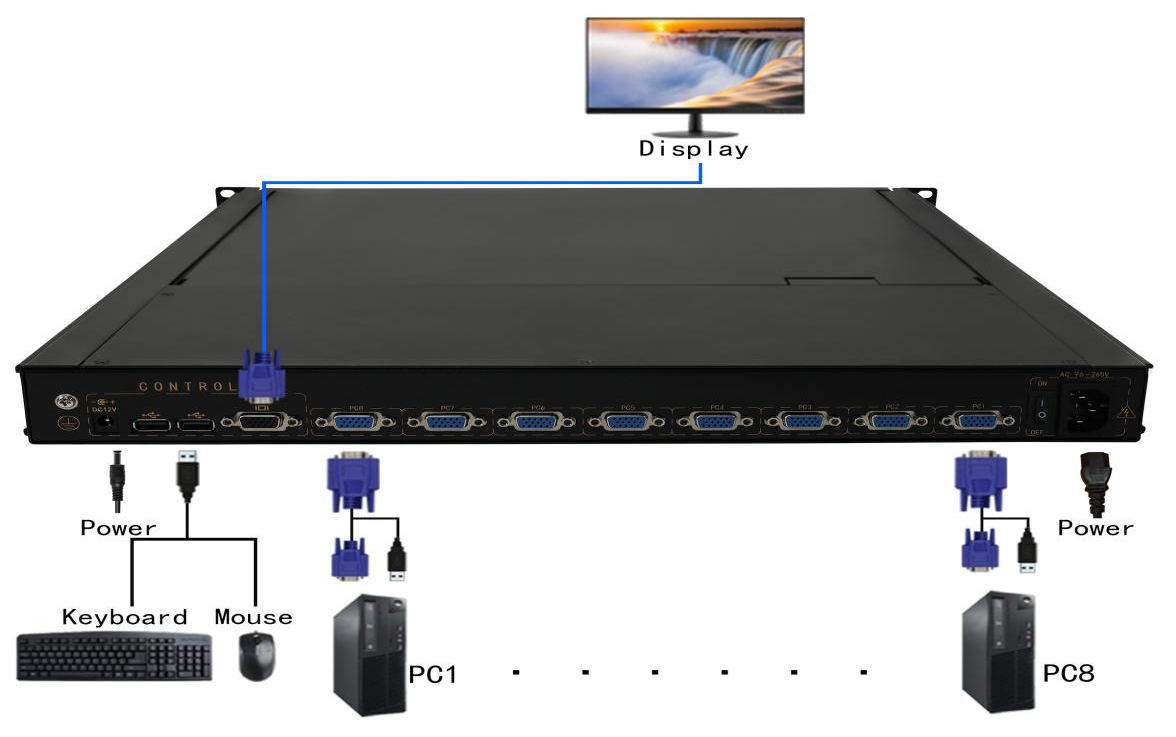

Product connection diagram

Specifications
